Bosch PS130 cordl perc screwdr: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PS130: 46 positions on 1 sheet

Bosch PS130 parts list (1 sheet)

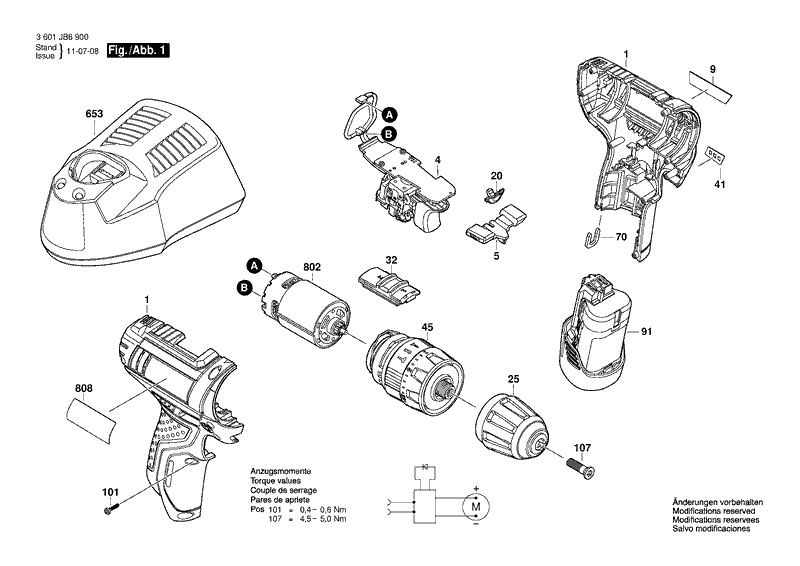

Bosch PS130 parts diagram, sheet 1
No.Part numberPart name
12609100824Housing Blue
12609100824Housing Blue
1012609110883Screw
1012609110883Screw
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
202609101035Lens
202609101035Lens
252609111312Keyless Chuck
252609111312Keyless Chuck
322609199279Switchover Unit
322609199279Switchover Unit
41607233541Electronics Module
416072335DKElectronics Module
412609132378Sticker
412609132378Sticker
452609199397Gear Box
452609199397Gear Box
52609100825Changeover Lever
52609100825Changeover Lever
6532607225135Fast Charger UK AL1130CV 230V/12V/3A
6532607225137Fast Charger AUS 240/10,8V
6532607225143Fast Charger J 100/10,8V, 30 Min.
6532607226101Fast Charger EU GAL 1230 CV 230/12V
6532607226105Fast Charger Gb GAL 1230 CV 230/12V
6532607226139Charger set Aus GAL 1230 CV 240/12V
6532607226219Fast Charger EU GAL 12V-40
6532607225139Fast Charger Usa/can 120/10,8-12V/30 Min.
6532607225519Fast Charger USA 120/3,6-10,8V,1H
702609110537Clip
702609110537Clip
8022609199428DC motor 10,8V
8022609199428DC motor 10,8V
808160111A4FYNameplate
808160111A4WGNameplate
8082609133266Nameplate
8082609133272Nameplate
9160111C1LWManufacturer's nameplate GSB 12V-15
92609133275Manufacturer's nameplate GSB 10,8-2-LI
92609132529Nameplate Lithium-Lon 12V
911607A35049Battery Pack 12V, 2,5AH, LI Gba
911607A350BWBattery Pack EU GBA 12V 4.0AH O-b Scm
911607A350C5Battery Pack GBA 12V 2.0AH LI Scm
912607336663Slide-In Accu Package 10,8V, 1,3AH, LI
911607A350C8Battery Pack BAT 414 10,8/12V 2,0AH
912607337237Battery Pack BAT 415 10,8V712V 2,5AH
