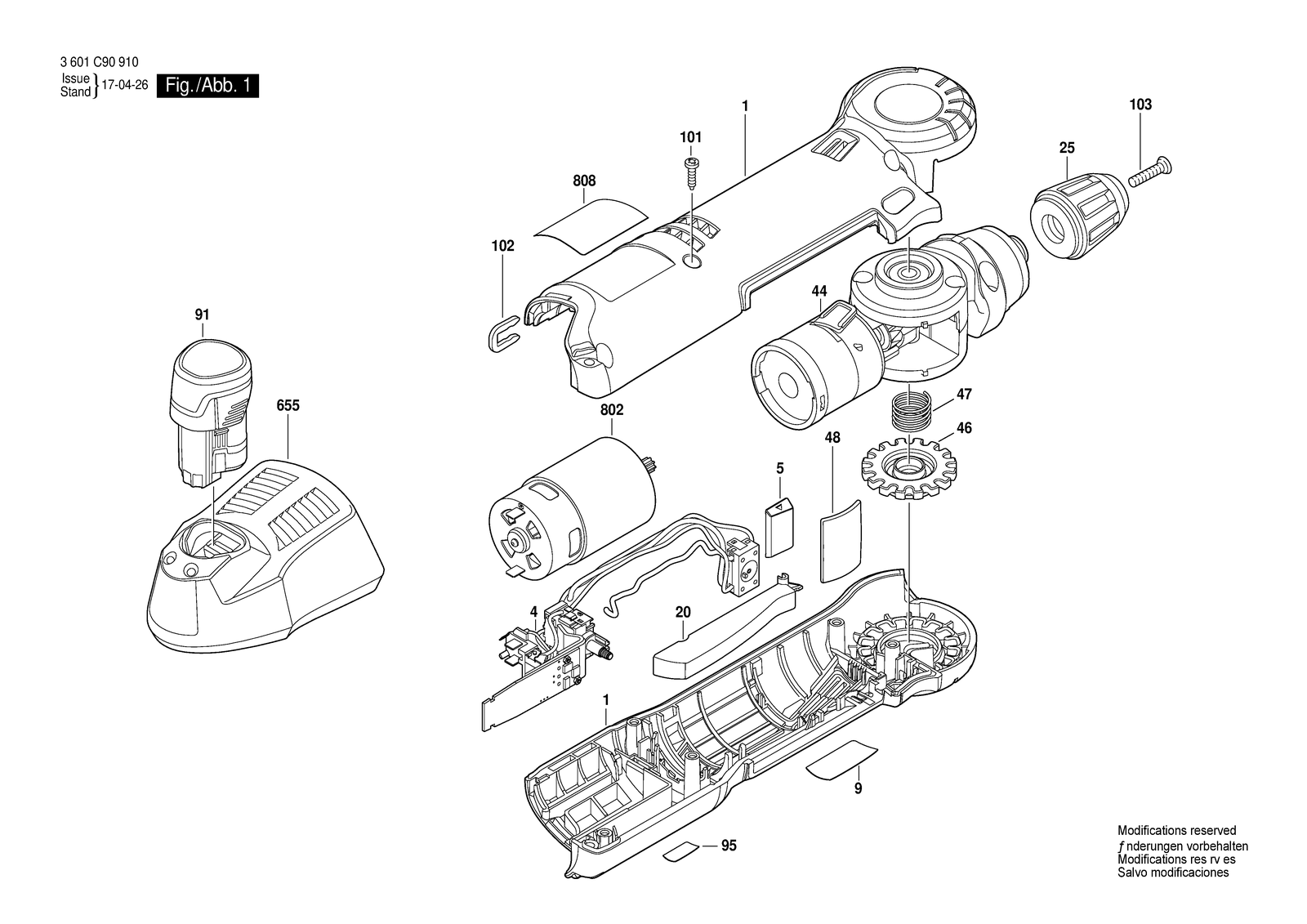

Bosch PS11 cordless angle drill: exploded parts diagram, 1 sheet, 20 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PS11: 20 positions on 1 sheet
Bosch PS11 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610015844 | Housing |
| 101 | 2609110538 | Screw |
| 102 | 2609110537 | Clip |
| 103 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 20 | 2610011034 | Trigger |
| 25 | 2609110967 | Keyless Chuck |
| 4 | 1607233446 | Electronics Module |
| 44 | 2610015446 | Gear Box |
| 46 | 2609100454 | Coupling Plate |
| 47 | 2609110534 | Spring |
| 48 | 2609100457 | Cover |
| 5 | 2610011033 | Button |
| 655 | 2607225139 | Fast Charger Usa/can 120/10,8-12V/30 Min. |
| 655 | 2607225519 | Fast Charger USA 120/3,6-10,8V,1H |
| 802 | 2610018891 | Motor Spare Parts Set |
| 808 | 2609136764 | Nameplate |
| 9 | 2610012172 | Label |
| 91 | 1607A350C8 | Battery Pack BAT 414 10,8/12V 2,0AH |
| 91 | 2607337237 | Battery Pack BAT 415 10,8V712V 2,5AH |
| 95 | 2610013689 | Sticker |
