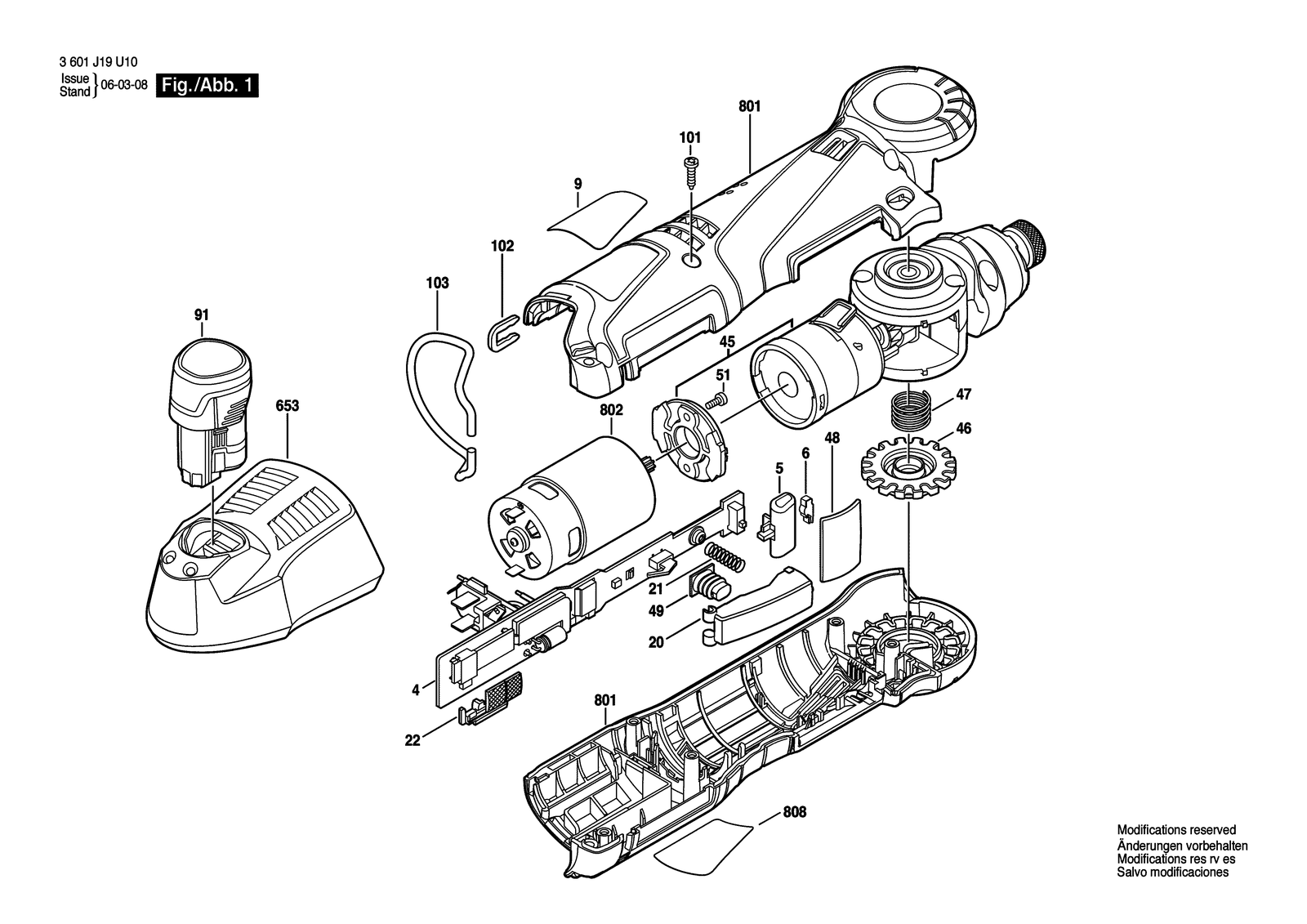

Bosch PS10 angle screwdriver: exploded parts diagram, 1 sheet, 22 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PS10: 22 positions on 1 sheet
Bosch PS10 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | 2609110538 | Screw |
| 102 | 2609110537 | Clip |
| 103 | 2609110539 | Hook |
| 20 | 2609100455 | Switch Handle |
| 21 | 2609110535 | Spring |
| 22 | 2609100458 | Clutch Lever |
| 4 | 2609120228 | Printed Circuit Board |
| 45 | 2609199143 | Gear Box |
| 46 | 2609100454 | Coupling Plate |
| 47 | 2609110534 | Spring |
| 48 | 2609100457 | Cover |
| 49 | 2609170058 | Cover |
| 5 | 2609100456 | Changeover Lever |
| 51 | 2609110560 | Screw |
| 6 | 2609110536 | Spring Clip |
| 653 | 2607225139 | Fast Charger Usa/can 120/10,8-12V/30 Min. |
| 653 | 2607225519 | Fast Charger USA 120/3,6-10,8V,1H |
| 801 | 2609199129 | Housing Set |
| 802 | 2609199131 | Motor |
| 808 | 2609131257 | Nameplate |
| 9 | 2609131253 | Manufacturer's nameplate |
| 91 | 1607A350C8 | Battery Pack BAT 414 10,8/12V 2,0AH |
