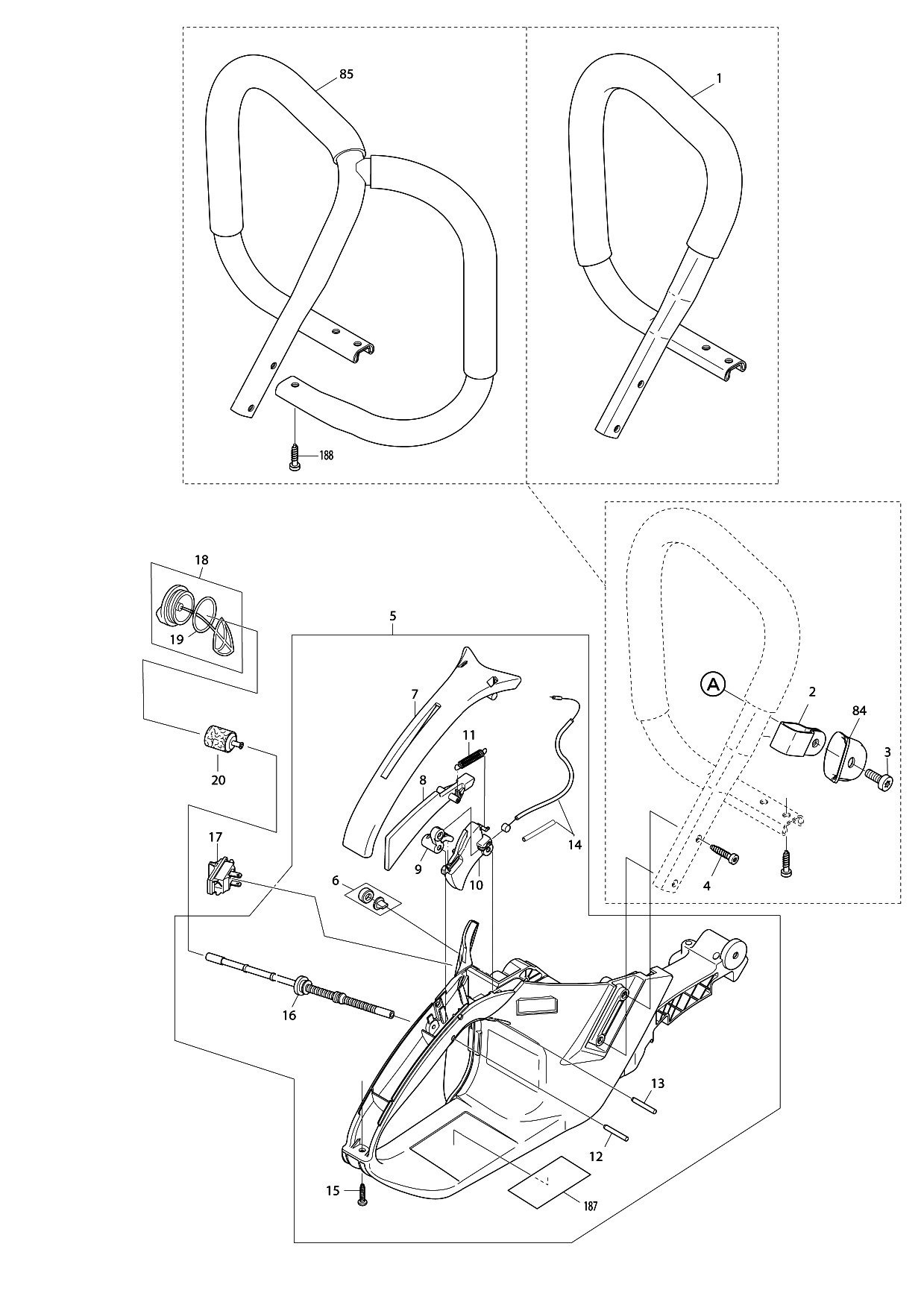

Sheet 1: Makita PS-7300 parts diagram

Makita PS-7300 parts diagram, sheet 1
No.Part numberPart name
1038310021Makita 038310021 TUBULAR HANDLE ASSY.
2038310062Makita 038310062 CLAMP
3908006145Makita 908006145 KUPUKANTA RUUVI 6X14 T27
4913455164Makita 913455164 SCREW110I.115.PS-43/52/54
6957114061Makita 957114061 AIR VALVE CPL.
7038114031Makita 038114031 GRIP PLATE RED
8038117020Makita 038117020 KAASUN VARM. VIPU
9038117030Makita 038117030 ROCKER
10038117010Makita 038117010 KAASU VIPU
11038117050Makita 038117050 JOUSI
12935930240Makita 935930240 LIERIÖTAPPI
13935930280Makita 935930280 CYL.TAPPI
14038117041Makita 038117041 BOWDEN CABLE SET
15913340204Makita 913340204 RUUVI
16038114052Makita 038114052 FUEL LINE
17975001241Makita 975001241 On /Off Short Circuit Switch Dolmar PS 6400 7300 7900
19963228030Makita 963228030 O-RENGAS 28X3
20163499-1Suction Head 125-52 For Dolmar For Makita Part 163499-1
84038310070
85
187
188

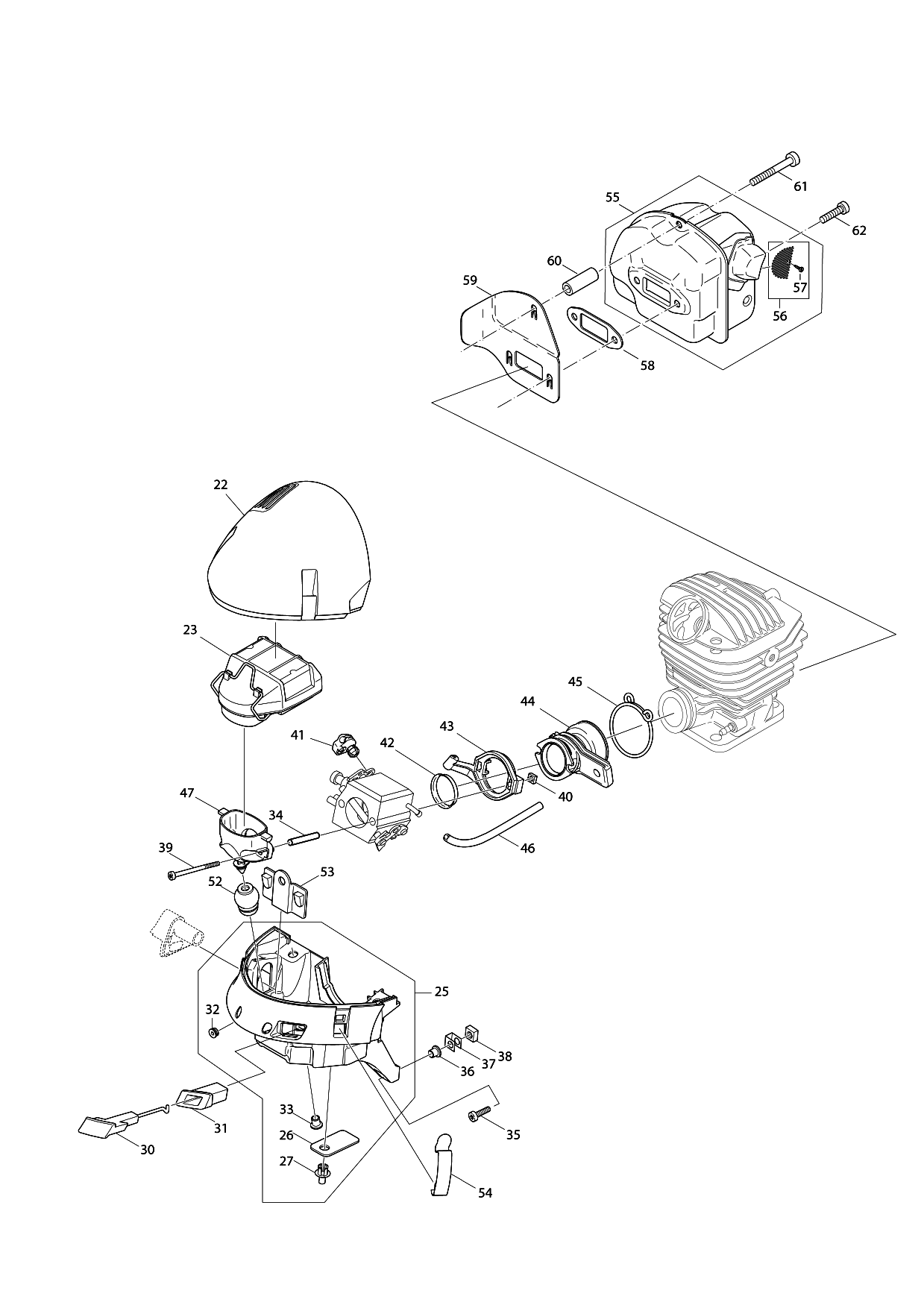

Sheet 2: Makita PS-7300 parts diagram

Makita PS-7300 parts diagram, sheet 2
No.Part numberPart name
22038118022Makita 038118022 COVER BLACK
23038173011Makita 038173011 ILM. SUODIN TÄYD
26038118110Makita 038118110 KUMI FLAP
27938650062Makita 938650062 TULPPA
30038155052Makita 038155052 Choke Linkage
31038155020Makita 038155020 RYYPPY OHJAIN
32965401020Makita 965401020 KUMI PUSSLA
33001118100Makita 001118100 PUSSLA
34038155060Makita 038155060 VÄLILEVY
35908005205Makita 908005205 RUUVI 5X20 109.110I111.115.PA-43/52/540
36001118100Makita 001118100 PUSSLA
37038111050Makita 038111050 CRAMP
38264108-6
39908204555Makita 908204555 RUUVI
40921804004Makita 921804004 MUTTERI
41038155012Makita 038155012 RETAINING CLIP
42038131031Makita 038131031 INSERT FOR SUCTION HOSE
43038171041Makita 038171041 LAIPPA
44038131011Makita 038131011 IMU LETKU
45038131070Makita 038131070 HOSE CLIP
46965452382Makita 965452382 BENSALETKU 1M 5,5/3
47038171012Makita 038171012 CONNECTING MUFF
52038171031
53038118100Makita 038118100 TULPPA
54130118070Makita 130118070 STEELCLIP
57
58038174811Makita Dolmar 038174811 Muffler Gasket PS-6400 PS-6400 7300 7900 DCS6400
59038174023Makita 038174023 COOLING PLATE
60038174030Makita 038174030 LIITOSKAMPI
61908305405Makita 908305405 KUPUKANTA RUUVI 5X10X40
62908005205Makita 908005205 RUUVI 5X20 109.110I111.115.PA-43/52/540

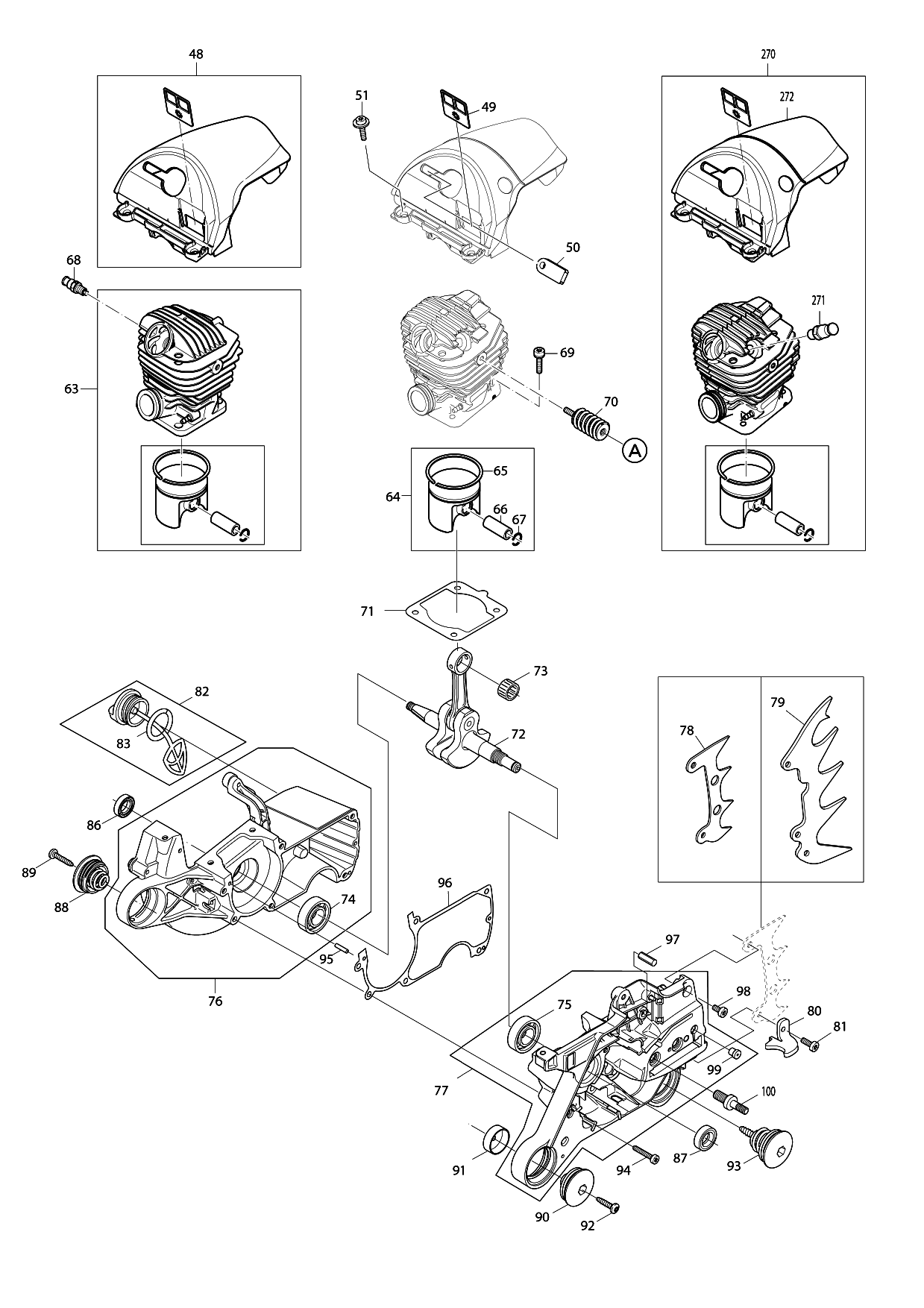

Sheet 3: Makita PS-7300 parts diagram

Makita PS-7300 parts diagram, sheet 3
No.Part numberPart name
48038118012Makita 038118012 HOOD RED
49038118140Makita 038118140 INSERT
50038118130Makita 038118130 JOHTO OHJAIN
51917105205Makita 917105205 RUUVI
63039130022Makita 039130022 SYLINTERI/MÄNTÄ TÄYD
65394132020Makita 394132020 PISTON RING, Ø50 FOR POWER CUTTER
66119132030Makita 119132030 MÄNTÄ TAPPI
67038132080
68
69908805235Makita 908805235 SCREWPS-5105
70038114152Makita 038114152 SPRING W. THREADEDINSERT
71965531160Makita 965531160 ZYLINDER GASKET, METAL FOR PC7414/8216
72038120201
73962210121Makita 962210121 NEEDLE CAGE
74211154-0
75960102179Makita 960102179 KUULA LAAKERI FAG 1740X12
78038250021Makita 038250021 SPIKE BAR
79
80038111171Makita 038111171 CHAIN CATCH
81908805205Makita 908805205 SCREWPS-420
83963228030Makita 963228030 O-RENGAS 28X3
86213814-0
87962900061Makita 962900061 STEFA
88038114130Makita 038114130 JOUSI TÄYD JA KORKKI
89913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
90038114130Makita 038114130 JOUSI TÄYD JA KORKKI
91038114191
92913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
93038114141Makita 038114141 SPRING
94908005305Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
95936430160Makita 936430160 SPIRAL CLAMPING PIN3X16
96038111043
97934660250Makita 934660250 SLOTTED TAPPI *147324
98908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
99010245030Makita 010245030 VENT VENTTIILI
100038232011Makita 038232011 TIGHTEN LOCKING BOLT
271038118180Makita 038118180 DECOMPRESSION VALVE
272038118050Makita 038118050 HOOD

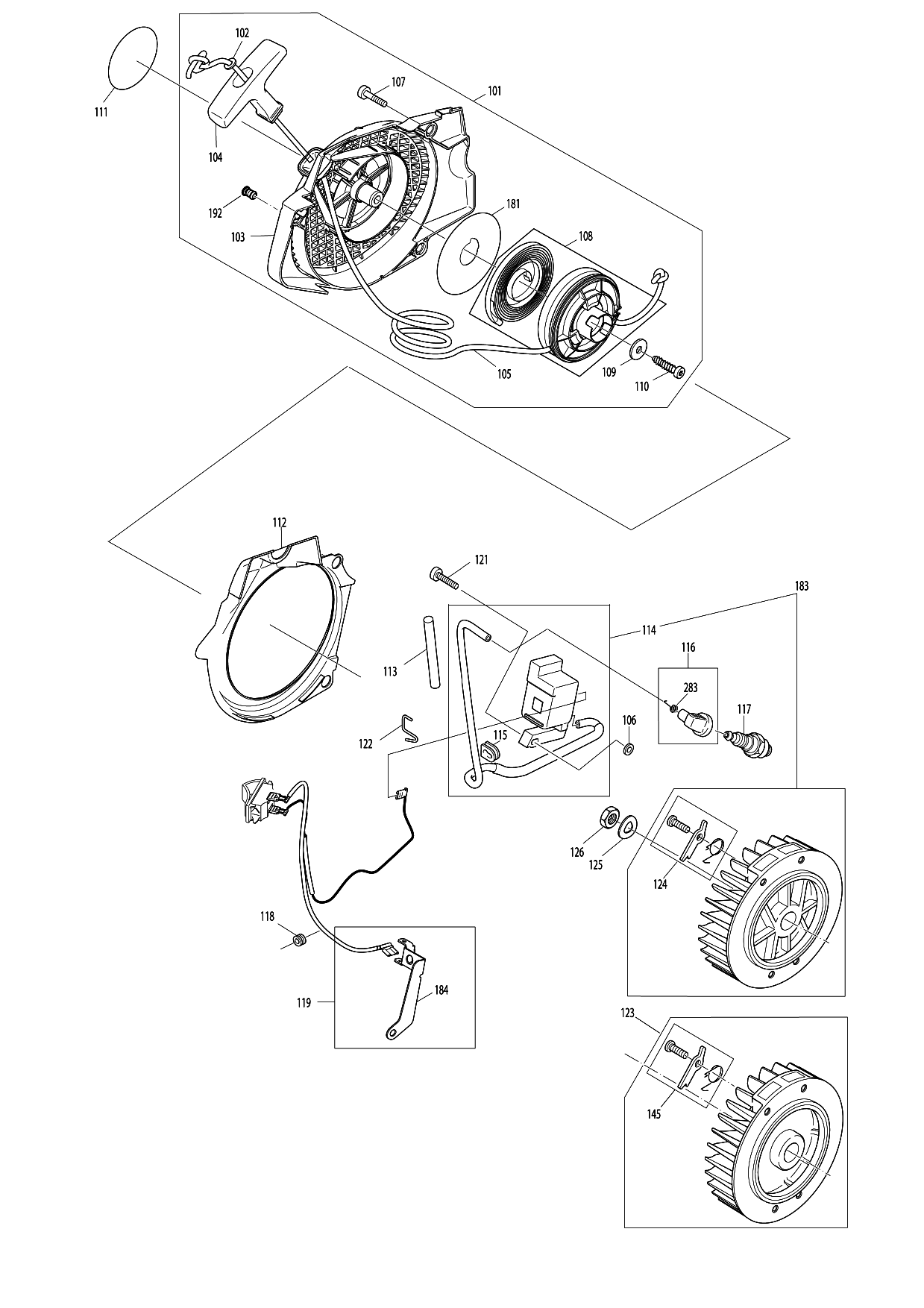

Sheet 4: Makita PS-7300 parts diagram

Makita PS-7300 parts diagram, sheet 4
No.Part numberPart name
102928405000Makita 928405000 DISC
103038122033
104001161020Makita 001161020 STARTER GRIPDPC PC
105108164020Makita 108164020 KÄYNNISTIN NARU 109110I.115.PS43/52
106195143031Makita 195143031 ISOLATING WASHER
107266942-0
108038162024Makita 038162024 NARURUMPU TÄYD
109924605510Makita 924605510 WASHER
110913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
111980115679
112038112020Makita 038112020 ILM. KANAVA
113970502110Makita 970502110 SUOJAPUTKI ALI.P.1M109.110I.PS43/52/YM.
115038143030Makita 038143030 Cable Harness
117965603021Makita 965603021 SYTYTYSTULPPA BPMR7A
118965401011Makita 965401011 KUMIPUSLA 109.110I111.115.PS-43/52/540
121908304205Makita 908304205 KUPUKANTA RUUVI 4X10X2
122038111110Makita 038111110 CRAMP
124108166051Makita 108166051 STARTER RATCHET CPL.110I.115.PS-43/52
125926208001Makita 926208001 JOUSI LEVY B8
126920208024Makita 920208024 KUUSIO MUTTERI M8X1
145038166050
181038162050Makita 038162050 VÄLILEVY
184038111150
192
283965604180Makita 965604180 TULP.HATUN JOUSI 109110I.115.PS-43/52

Sheet 5: Makita PS-7300 parts diagram

Makita PS-7300 parts diagram, sheet 5
No.Part numberPart name
128030245070Makita 030245070 ÖLJYPU.KORJ.SRJ.5/95109.110I.115.PS-43YM
129001245140OTHR New Genuine Makita 001245140 ANGULAR NIPPLE
130038245110OTHR New Genuine Makita 038245110 ÖLJY LETKU
131038245031Makita 038245031 PUMPPU KÄYTTÖ
132908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
133038224021Makita 038224021 DISC
134038245061Makita 038245061 ÖLJY LETKU PS64-79
136900005066DISC New Genuine Makita 900005066 VÄLI RENGAS
137963601100Makita 963601100 STRAINER SIHTI
138267389-1
140024184021Makita 024184021 KIRISTYSJOUSI 109110I.111.115.PS-43YM
141038223020Makita 038223020 KYTKIN RUMPU
142962210024Makita 962210024 Needle Cage K10/16x12 for DCS901 DCS6400 DCS6401 DCS7300
143119224070Makita Dolmar 119224070 Rim Sprocket 3/8, 7 Teeth for DCS6000 DCS6400
144181224081Makita 181224081 DISCPS-420
146927408000Makita 927408000 WASHER
190962300009Makita 962300009 NEEDLE SLEEVER
191038223100

Sheet 6: Makita PS-7300 parts diagram

Makita PS-7300 parts diagram, sheet 6
No.Part numberPart name
148810449-4
149908405205Makita 908405205 SCREW
150038213160Makita 038213160 PUSSLA
152927304000Makita 927304000 LUKKORENGAS 109.110I111.115.PS-43/52/540
153908805205Makita 908805205 SCREWPS-420
154038213152Makita 038213152 POT
155038213130Makita 038213130 JOUSI
156038213200Makita 038213200 FOAM SPONGE
157038213010Makita 038213010 JARRU JOUSI
158915735100Makita 915735100 RUUVI
159038213040Makita 038213040 LEVY
160915735100Makita 915735100 RUUVI
161038111030Makita 038111030 OHJAIN LEVY
162915735100Makita 915735100 RUUVI
164038213036
165980116004
166038213190Makita 038213190 CHIP OHJAIN
168038213080Makita 038213080 PUSSLA
169038213230
170028213012Makita 028213012 WASHER
171957213040Makita 957213040 SARJA OF KIRISTYS SCREW/KOTELO
172038213091Makita 038213091 TENSIONING NUT
173038213070Makita 038213070 KIRISTYS RUUVI BEARENGAS
174915535100Makita 915535100 RUUVI 3,5X9,5 5000H
175024213240Makita 024213240 KETJU OHJAIN
176923208004Makita 923208004 KUUSIOMUTTERI M8 109110I.111.115.PS-43YM
178
179908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
180920405000Makita 920405000 KUUSIO MUTTERI M5
182
185924104300
186935940100

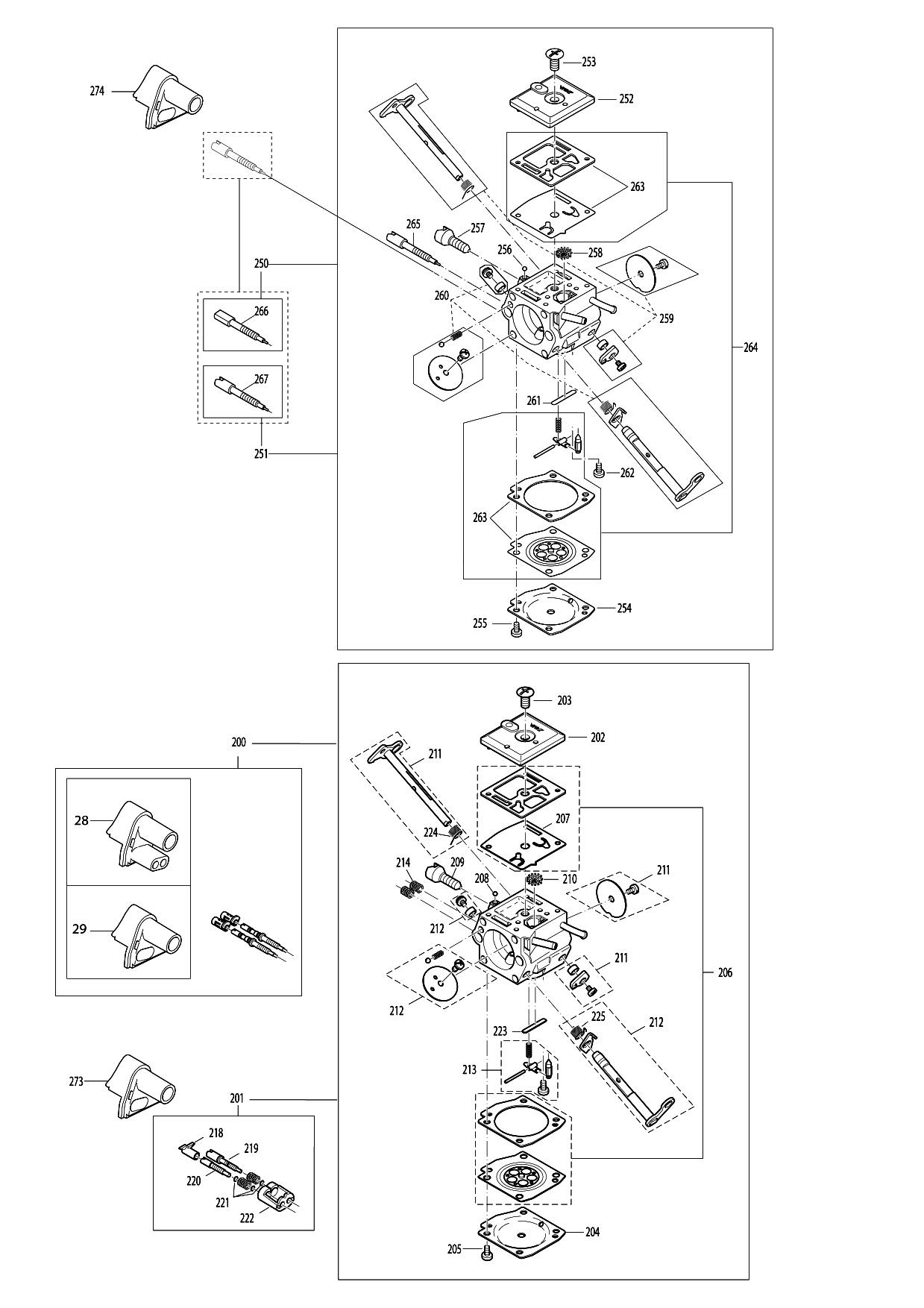

Sheet 7: Makita PS-7300 parts diagram

Makita PS-7300 parts diagram, sheet 7
No.Part numberPart name
28038118083
29038118081
202038153030Makita 038153030 PUMPPU KANSI
203038153360Makita 038153360 SCREW
204038153040Makita 038153040 KALVO KANSI
205001153020Makita 001153020 SCREW
207038153070Makita 038153070 PUMPPU KALVO
208038153210Makita 038153210 FRICTION BALL
209038153220Makita 038153220 IDLE STOP RUUVI
210036153040Makita 036153040 SCREEN
211957153061Makita 957153061 KORJAUSSARJADROSSELWELL
212957153051Makita 957153051 KIT CHOKE SHAFT
213957153100
214038153260Makita 038153260 JOUSI
218
219
220
221
222
223038153350Makita 038153350 PLUG-WELCH
224038153150
225038153100
252038153030Makita 038153030 PUMPPU KANSI
253038153360Makita 038153360 SCREW
254038153540
255ZJ00000014
256038153210Makita 038153210 FRICTION BALL
257038153220Makita 038153220 IDLE STOP RUUVI
258036153040Makita 036153040 SCREEN
259038153570Makita 038153570 KIT THROTTLE SHAFT
260038153580Makita 038153580 KIT CHOKE SHAFT
261038153350Makita 038153350 PLUG-WELCH
262028153200Makita 028153200 RUUVI
264038153560Makita 038153560 REBUILD KIT
265038153232Makita 038153232 IDLE ADJUSTMENT SCREW
266
267038153242Makita 038153242 MAIN ADJUSTMENT SCREW
273
