Makita PS-220TH
Makita PS-220TH: exploded parts diagram, 3 sheets, 136 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita PS-220TH: 136 positions on 3 sheets

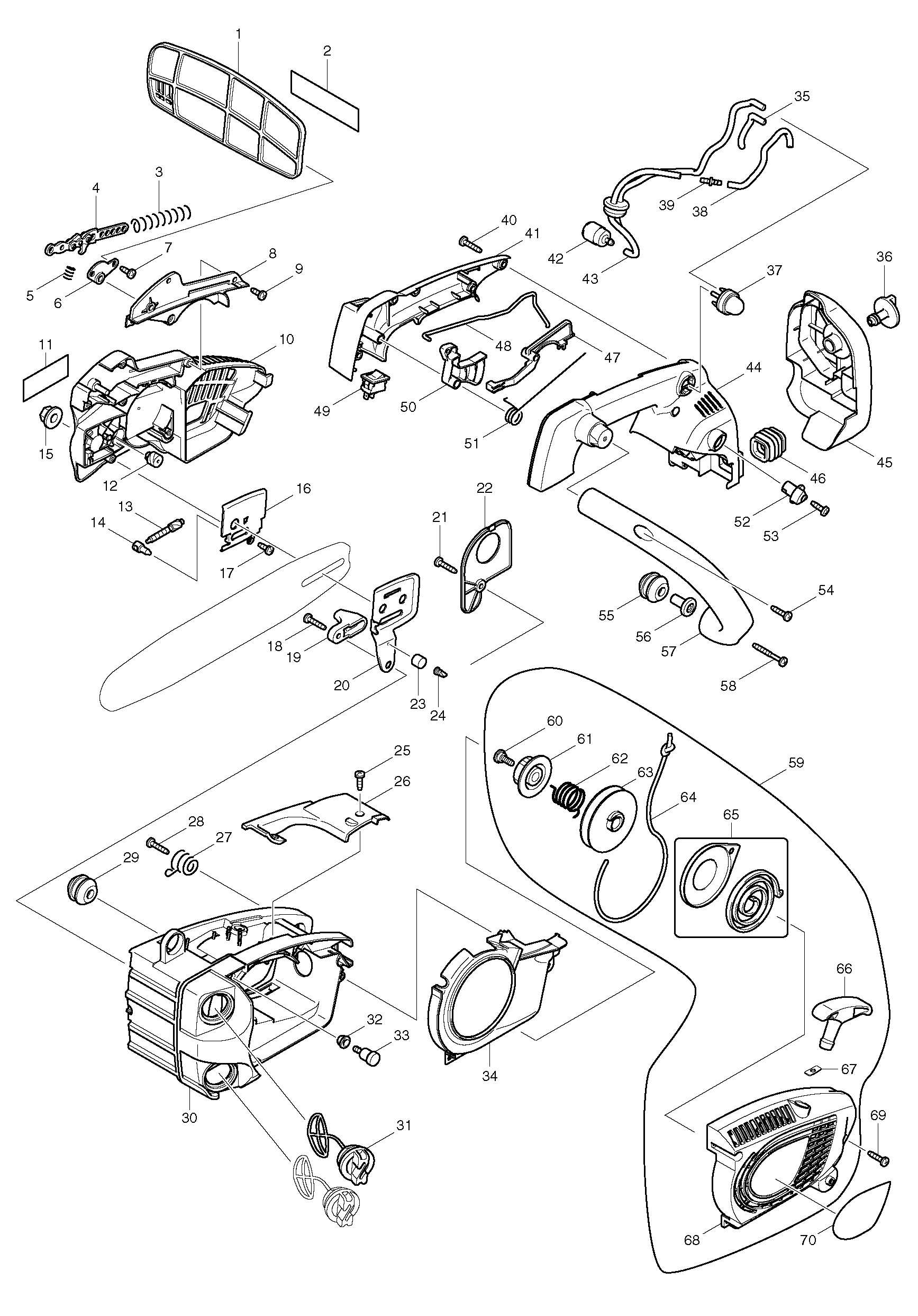

Sheet 1: Makita PS-220TH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 154650-4 | Makita 154650-4 FRONT GUARD, DCS230T |
| 2 | 810075-9 | Makita 810075-9 CAUTION LABEL, DCS230T |
| 3 | 233175-2 | Makita 233175-2 COMPRESSION SPRING 9, UC3020A |
| 4 | 163448-8 | Makita 163448-8 LINK PLATE, DCS230T |
| 5 | 231298-0 | Makita 231298-0 COMPRESSION SPRING 6 |
| 6 | 418715-9 | Makita 418715-9 HAND GUARD COVER, DCS230T |
| 7 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 8 | 418716-7 | Makita 418716-7 SPRING COVER PS-220TH |
| 9 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 10 | 183969-4 | Makita 183969-4 SPROCKET COVER SET PS-220TH |
| 11 | 819169-7 | Makita 819169-7 DOLMAR LOGO LABEL PS-22OTH |
| 12 | 226590-7 | Makita 226590-7 HELICAL GEAR 17, DCS230T |
| 13 | 226534-7 | Makita 226534-7 HELICAL GEAR 8, DCS230T |
| 14 | 324464-7 | Makita 324464-7 ADJUST PIN, PS-220TH |
| 15 | 252145-2 | Makita 252145-2 COLLARED HEX NUT M8, DCS230T |
| 16 | 345452-1 | Makita 345452-1 CHAIN SLIDER, DCS230T |
| 17 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 18 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 19 | 418710-9 | Makita 418710-9 CHAIN CATCHER, DCS230T |
| 20 | 345451-3 | Makita 345451-3 CHAIN SLIDER, DCS230T |
| 21 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 22 | 418707-8 | Makita 418707-8 OIL PUMP COVER, DCS230T |
| 23 | 421877-4 | Makita 421877-4 SPONGE 10, DCS230T |
| 24 | 421298-0 | Makita 421298-0 CHECK VALVE |
| 25 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 26 | 418701-0 | Makita 418701-0 TOP COVER PS-220TH |
| 27 | 324477-8 | Makita 324477-8 DAMPER SPRING, DCS230T |
| 28 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 29 | 421874-0 | Makita 421874-0 BUFFER RUBBER, DCS230T |
| 30 | 153911-9 | Makita 153911-9 HOUSING COMPL PS-220TH |
| 31 | 168399-0 | Makita 168399-0 TANK CAP COMPL, DCS230T |
| 32 | 421875-8 | Makita 421875-8 GROMMET, SP-220TH |
| 33 | 168396-6 | Makita 168396-6 BREATHER, DCS230T |
| 34 | 418700-2 | Makita 418700-2 BUFFLE PLATE, DCS230T |
| 35 | 422036-3 | Makita 422036-3 TUBE 3-70, DCS230T |
| 36 | 271422-3 | Makita 271422-3 KNOB 28, DCS230T |
| 37 | 168398-2 | Makita 168398-2 Primer Pump for DCS230T |
| 38 | 422037-1 | Makita 422037-1 TUBE 3-140, DCS230T |
| 39 | 418711-7 | Makita 418711-7 TUBE JOINT, DCS230T |
| 40 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 41 | 418696-7 | Makita 418696-7 TOP HANDLE COVER, DCS230T |
| 42 | 163447-0 | Makita 163447-0 Gasoline Filter |
| 43 | 168397-4 | Makita 168397-4 TUBE COMPL, DCS230T |
| 44 | 418695-9 | Makita 418695-9 TOP HANDLE, DCS230T |
| 45 | 418703-6 | Makita 418703-6 CLEANER CASE COVER, DCS230T |
| 46 | 421872-4 | Makita 421872-4 AIR DUCT, PS-200TH |
| 47 | 418706-0 | Makita 418706-0 LOCKOFF LEVER, DCS230T |
| 48 | 324468-9 | Makita 324468-9 ROD, DCS230T |
| 49 | 651525-3 | Makita 651525-3 SWITCH SLE9A2-GG-31, DCS230T |
| 50 | 418705-2 | Makita 418705-2 THROTTLE LEVER, DCS230T |
| 51 | 231672-2 | Makita 231672-2 TORSION SPRING 11, PS-220TH |
| 52 | 418708-6 | Makita 418708-6 CHOKE LEVER, DCS230T |
| 53 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 54 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 55 | 421874-0 | Makita 421874-0 BUFFER RUBBER, DCS230T |
| 56 | 418709-4 | Makita 418709-4 BUFFER CAP, DCS230T |
| 57 | 418704-4 | Makita 418704-4 SIDE HANDLE, DCS230T |
| 58 | 266053-1 | Makita 266053-1 TAPPING SCREW 4*35, UB1101 |
| 60 | SG00000005 | Makita SG00000005 SET SCREW, DCS230T |
| 61 | SG00000004 | Makita SG00000004 CAM PLATE, DCS230T |
| 62 | SG00000003 | Makita SG00000003 DAMPER SPRING, DCS230T |
| 63 | SG00000001 | Makita SG00000001 REEL, DCS230T |
| 64 | SG00000007 | Makita SG00000007 STARTER ROPE, DCS230T |
| 65 | SG00000002 | Makita SG00000002 SPRING ASSY, DCS230T |
| 66 | SG00000008 | Makita SG00000008 STARTER KNOB, DCS230T |
| 67 | SG00000009 | Makita SG00000009 ROPE STOPPER, DCS230T |
| 68 | 163449-6 | Makita 163449-6 STARTER CASE COMPLETE PS-220TH |
| 69 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 70 | 861168-5 | Makita 861168-5 NAME PLATE PS-22OTH |

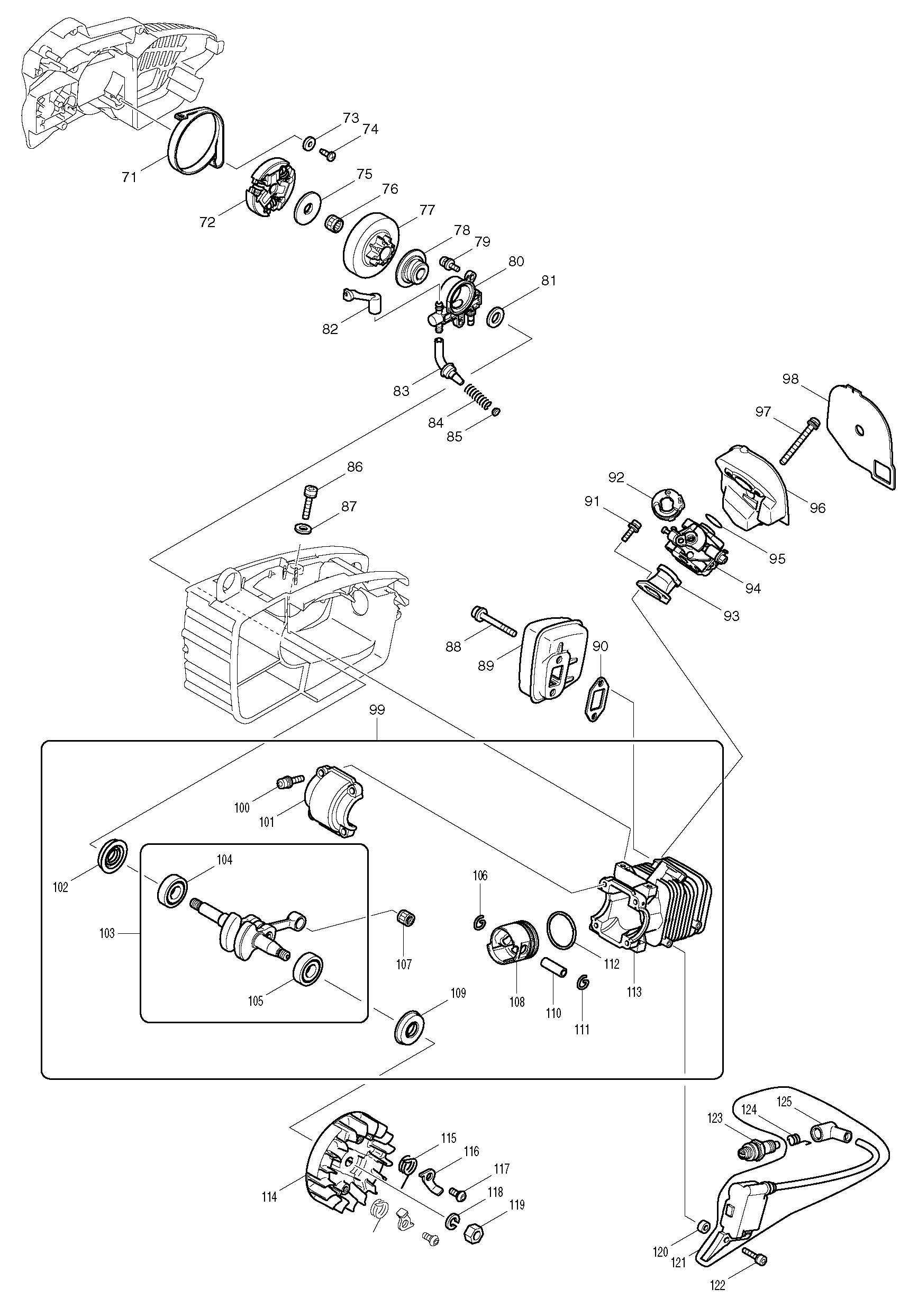

Sheet 2: Makita PS-220TH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 71 | 345454-7 | Makita 345454-7 BRAKE BAND, DCS230T |
| 72 | 168391-6 | Makita 168391-6 CLUTCH COMPLETE, DCS230T |
| 73 | 267195-4 | Makita 267195-4 FLAT WASHER 4, UC3020A |
| 74 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 75 | 267284-5 | Makita 267284-5 FLAT WASHER 8, PS-220TH |
| 76 | 212077-5 | Makita 212077-5 NEEDLE CAGE, DCS230T |
| 77 | 165405-2 | |
| 78 | 221422-3 | Makita 221422-3 WORM GEAR, DCS230T |
| 79 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 80 | 168393-2 | Makita 168393-2 OIL PUMP, DCS230T |
| 81 | 253758-2 | Makita 253758-2 FLAT WASHER 10 |
| 82 | 421873-2 | Makita 421873-2 CONNECTOR, DCS230T |
| 83 | 421876-6 | Makita 421876-6 OIL TUBE, SP-220TH |
| 84 | 231975-4 | Makita 231975-4 SPRING, DCS230T |
| 85 | 416274-7 | Makita 416274-7 CAP, UC3020A |
| 86 | 922231-0 | Makita 922231-0 HEX. SOCKET HEAD BOLT M5X20, HR2010 |
| 87 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 88 | 266354-7 | Makita 266354-7 FLANGE SOCKET M5X40, DCS230T |
| 89 | 168392-4 | Makita 168392-4 EXHAUST MUFFLER, DCS230T |
| 90 | 418718-3 | Makita 418718-3 MUFFLER GASKET, DCS230T |
| 91 | 922123-3 | Makita 922123-3 Hex. Socket Head Bolt M4X |
| 92 | 418717-5 | Makita 418717-5 THROTTLE HOLDER, DCS230T |
| 93 | 421871-6 | Makita 421871-6 INSULATER, DCS230T |
| 94 | 168394-0 | Makita 168394-0 CARBURETOR, DCS230T |
| 95 | 213221-7 | Makita 213221-7 O RING 15, DCS230T |
| 96 | 418702-8 | Makita 418702-8 CLEANER CASE, DCS230T |
| 97 | 911268-2 | Makita 911268-2 PAN HEAD SCREW M5X45 WR, 5806B |
| 98 | 443118-8 | Makita 443118-8 Air Filter for DCS230T |
| 100 | 922233-6 | Makita 922233-6 HEX SOCKET HEAD BOLT M5X2 |
| 101 | 183944-0 | Makita 183944-0 CYLINDER SET, DCS230T |
| 102 | 213131-8 | Makita 213131-8 OIL SEAL 12, DCS230T |
| 104 | 210101-8 | Makita 210101-8 BALL BEARING 6001, DCS230T |
| 105 | 210101-8 | Makita 210101-8 BALL BEARING 6001, DCS230T |
| 106 | 324529-5 | Makita 324529-5 PISTON CLIP, DCS230T |
| 107 | 212955-9 | Makita 212955-9 NEEDLE CAGE, DCS230T |
| 108 | 317811-9 | Makita 317811-9 PISTON, DCS230T |
| 109 | 213131-8 | Makita 213131-8 OIL SEAL 12, DCS230T |
| 110 | 324467-1 | Makita 324467-1 PISTON PIN 8, DCS230T |
| 111 | 324529-5 | Makita 324529-5 PISTON CLIP, DCS230T |
| 112 | 324463-9 | Makita 324463-9 PISTON RING, DCS230T |
| 113 | 183944-0 | Makita 183944-0 CYLINDER SET, DCS230T |
| 114 | 317813-5 | Makita 317813-5 FLYWHEEL, DCS230T |
| 115 | 231671-4 | Makita 231671-4 TORSION SPRING 15, PS-220TH |
| 116 | 345453-9 | Makita 345453-9 RACHET, PS-220TH |
| 117 | 266342-4 | Makita 266342-4 HEX.SOCKET BUTTON HEAD BOLT, PS-220TH |
| 118 | 942201-3 | Makita 942201-3 SPRING WASHER 8, 2414NB |
| 119 | 931403-6 | Makita 931403-6 HEX NUT, 2012NB |
| 120 | 418714-1 | Makita 418714-1 SPACER, DCS230T |
| 122 | 266359-7 | Makita 266359-7 FLANGE SOCKET M4X18, DCS230T |
| 123 | 0650109950 | Makita 0650109950 SPARK PLUG CMR6ABHX2500/PB-250.4 |
| 124 | 324465-5 | Makita 324465-5 PLUG CUP SPRING, PS-220TH |
| 125 | 421878-2 | Makita 421878-2 PLUG CAP, DCS230T |

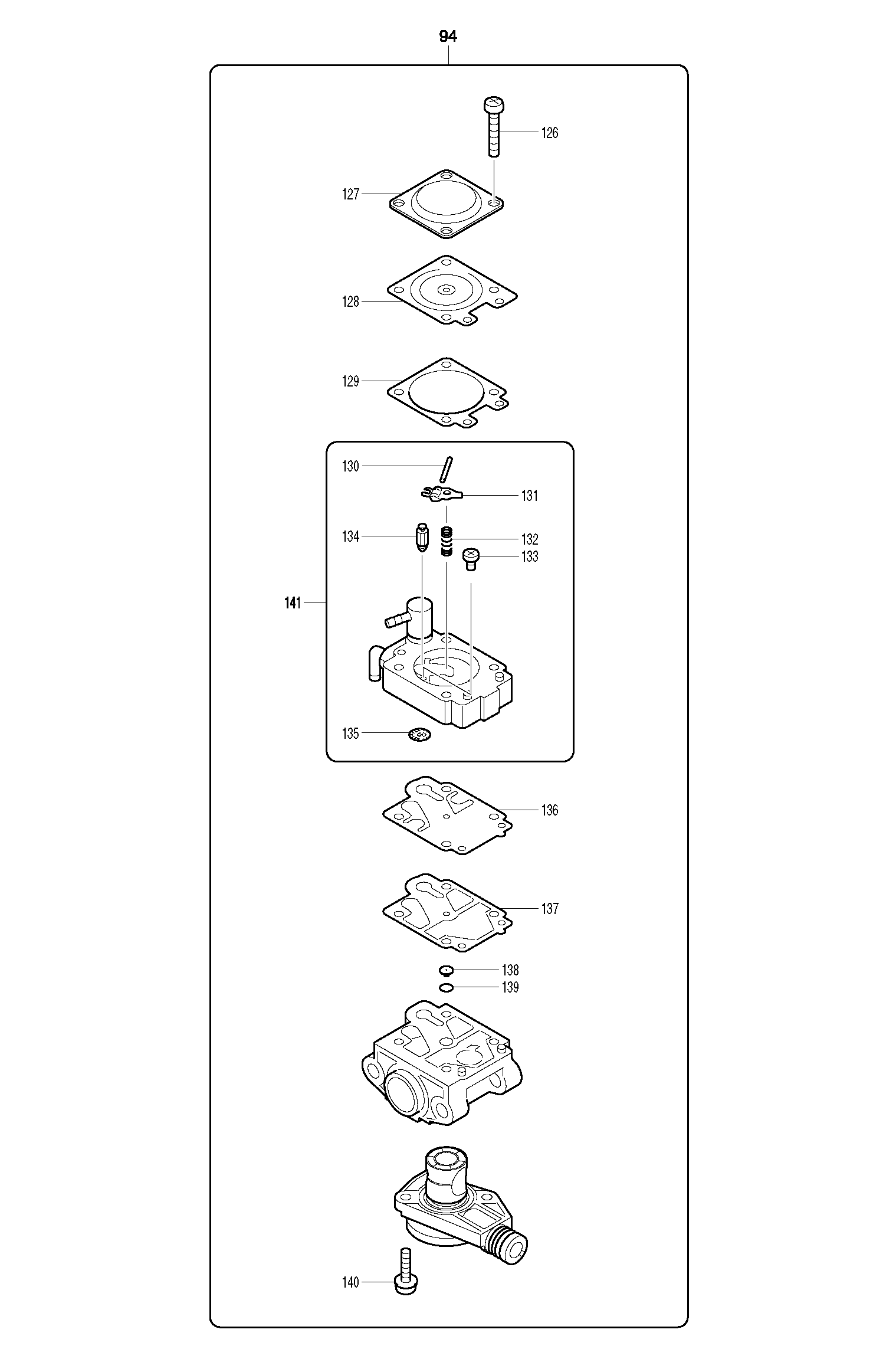

Sheet 3: Makita PS-220TH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 126 | WJ00096325 | Makita WJ00096325 SCREW, DCS230T |
| 127 | WJ00021158 | Makita WJ00021158 COVER, DCS230T |
| 128 | WJ00095586 | Makita WJ00095586 DIAPHRAGM ASSY, DCS230T |
| 129 | WJ00092192 | Makita WJ00092192 GASKET, DCS230T |
| 130 | WJ00014477 | Makita WJ00014477 PIN, DCS230T |
| 131 | WJ00016648 | Makita WJ00016648 LEVER, DCS230T |
| 132 | WJ00983160 | Makita WJ00983160 SPRING, DCS230T |
| 133 | WJ00096424 | Makita WJ00096424 SCREW, DCS230T |
| 134 | WJ00008282 | Makita WJ00008282 VALVE, DCS230T |
| 135 | WJ00014070 | Makita WJ00014070 INLET SCREEN, DCS230T |
| 136 | WJ00009599 | Makita WJ00009599 PUMP DIAPHRAGM, DCS230T |
| 137 | WJ00092258 | Makita WJ00092258 GASKET, DCS230T |
| 138 | WJ00112241 | Makita WJ00112241 JET, DCS230T |
| 139 | WJ00016104 | Makita WJ00016104 O RING, DCS230T |
| 140 | WJ00096364 | Makita WJ00096364 SCREW, DCS230T |
