Bosch PRT 200

Bosch PRT 200 dummy: exploded parts diagram, 1 sheet, 38 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PRT 200: 38 positions on 1 sheet

Bosch PRT 200 parts list (1 sheet)

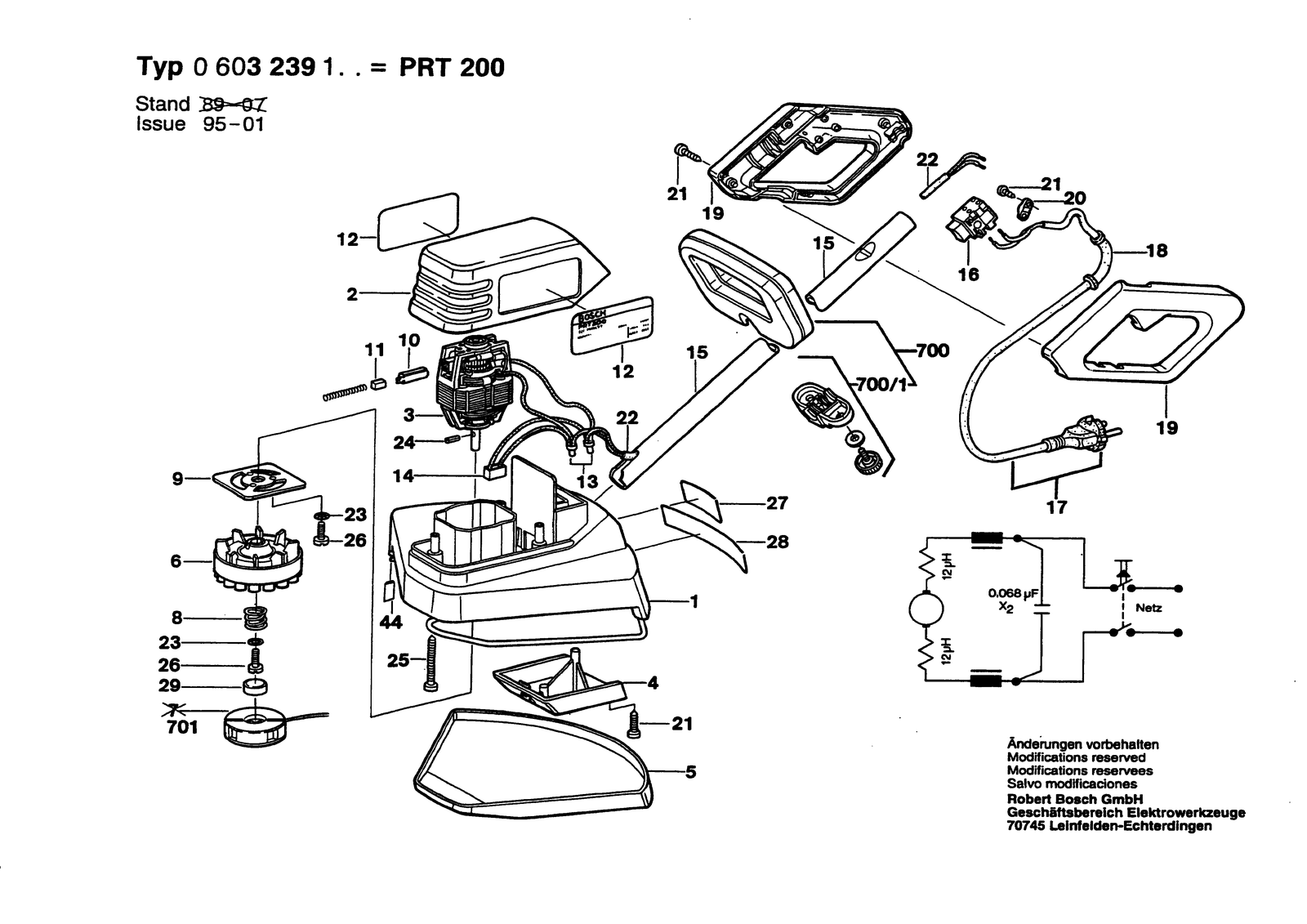

Bosch PRT 200 parts diagram, sheet 1
No.Part numberPart name
11609201289Motor Housing
101609201310Brush Holder
111609201311Carbon-Brush Set
121601110242Sticker
131609201312Connecting terminal
141609201313Suppression Filter
151609201314Guide Tube
151609201749Guide Tube
161609201315On-Off Switch
171604460437Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F
172604460255Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F
181600703016Grommet Ø6,4-Ø7,5X75 MM
191609201764Handle
21609201296Housing Cover
202601035001Cable Clip
211609201331Parts Set 4X20 MM/4X13 MM/4X25 MM
221609201332Cable
232916070106Serrated Lock-Washer A 4,3 DIN 6798-ST
242917760081Slotted Spring Pin 3X20 DIN 1481
251609201316Tapping Screw
262910021122Socket head cap screw DIN 84-AM4X12-8.8
271601110244Nameplate
271601110245Nameplate
271601110246Nameplate
271601110247Nameplate
271601110274Nameplate
281601110140Reference Plate Caution
291609201395Plug
31609201300Alternating-Current Motor 220V
41609201297Housing Cover
441609201464Cutter Plate 38X10X1 MM
51609201304Guide Block
61609201305Carrier
7001609201277Auxiliary Handle Green
7001609201326Tensioner Parts Set
7011609201653Cutting line cartridge Ø 1,4 MM
81609201307Compression Spring
91609201308Fixing plate
