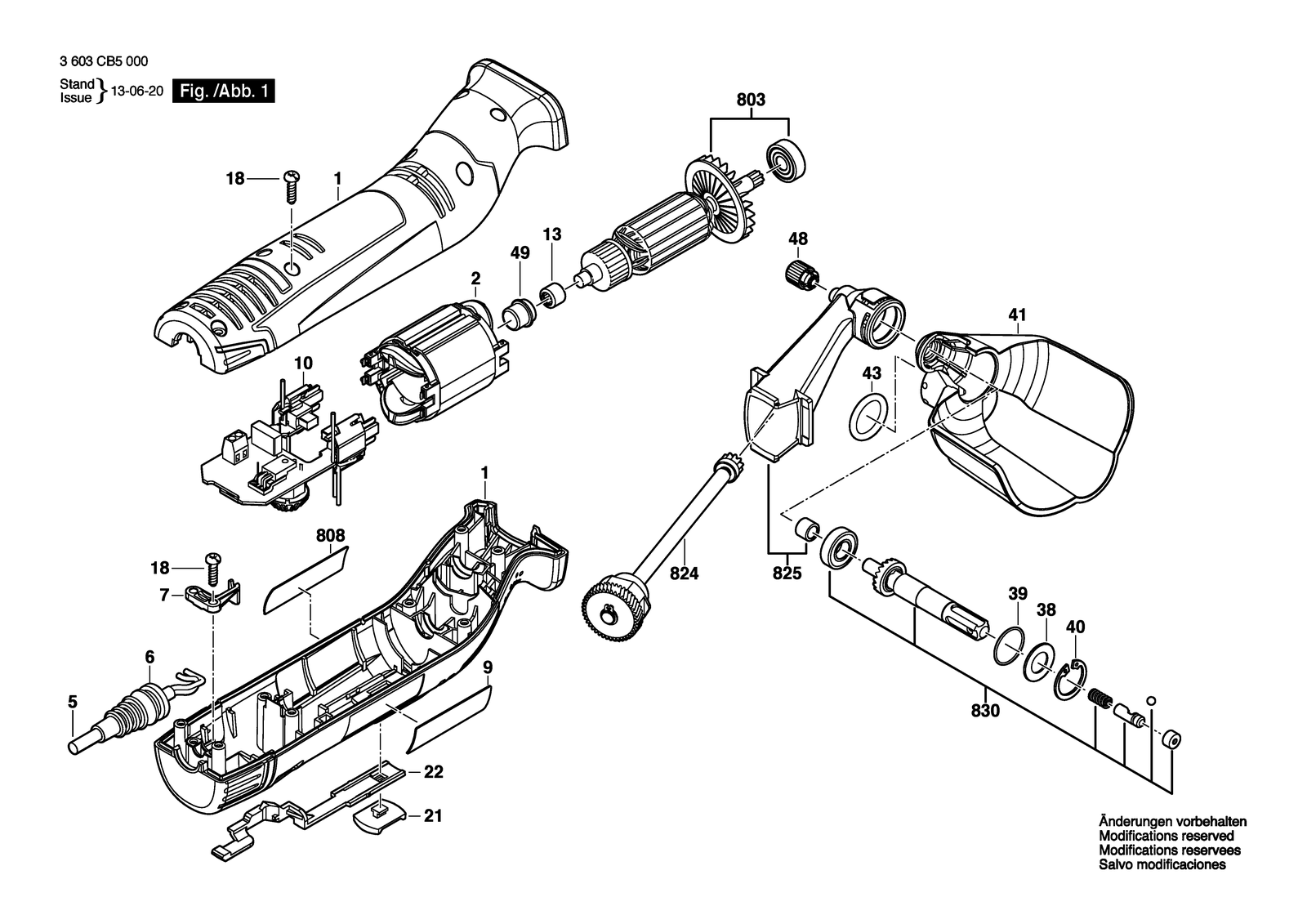

Bosch PRR 250 ES sanding roller: exploded parts diagram, 1 sheet, 28 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PRR 250 ES: 28 positions on 1 sheet
Bosch PRR 250 ES parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609006445 | Housing |
| 10 | 2609005721 | Electronics Module |
| 13 | 2600917002 | Needle bearing |
| 18 | 2603490022 | Screw 4X16 |
| 2 | 2609007814 | Field |
| 21 | 2609005541 | Slide Button |
| 22 | 2609007716 | Slider |
| 38 | 2609006461 | Supporting Disc |
| 39 | 2609006462 | O-Ring |
| 40 | 2916660007 | Spring retaining ring DIN 472-22X1MM |
| 41 | 2609006463 | Dust-Protection Cover |
| 43 | 160021007J | O-Ring |
| 48 | 2609006693 | Lock Screw |
| 49 | 2609006466 | Rubber Bushing |
| 5 | 1604460433 | Power supply cord CH 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460259 | Power supply cord EU 230V 2,7M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460297 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 6 | 2609005502 | Grommet Durchmesser 6,2-6,9 |
| 7 | 2609006171 | Cable Clip |
| 803 | 2609006823 | Armature assembly |
| 808 | 160111A2X6 | Nameplate |
| 808 | 160111A2X8 | Nameplate |
| 808 | 160111A2XC | Nameplate |
| 824 | 2609006825 | Drive Assembly |
| 825 | 2609006789 | Gear Block |
| 830 | 2609006824 | Gear Unit |
| 9 | 2609006775 | Manufacturer's nameplate PRR 250 Es |
