Bosch Pro Pruner

Bosch Pro Pruner secateurs: exploded parts diagram, 2 sheets, 46 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch Pro Pruner: 46 positions on 2 sheets

Bosch Pro Pruner parts list (2 sheets)

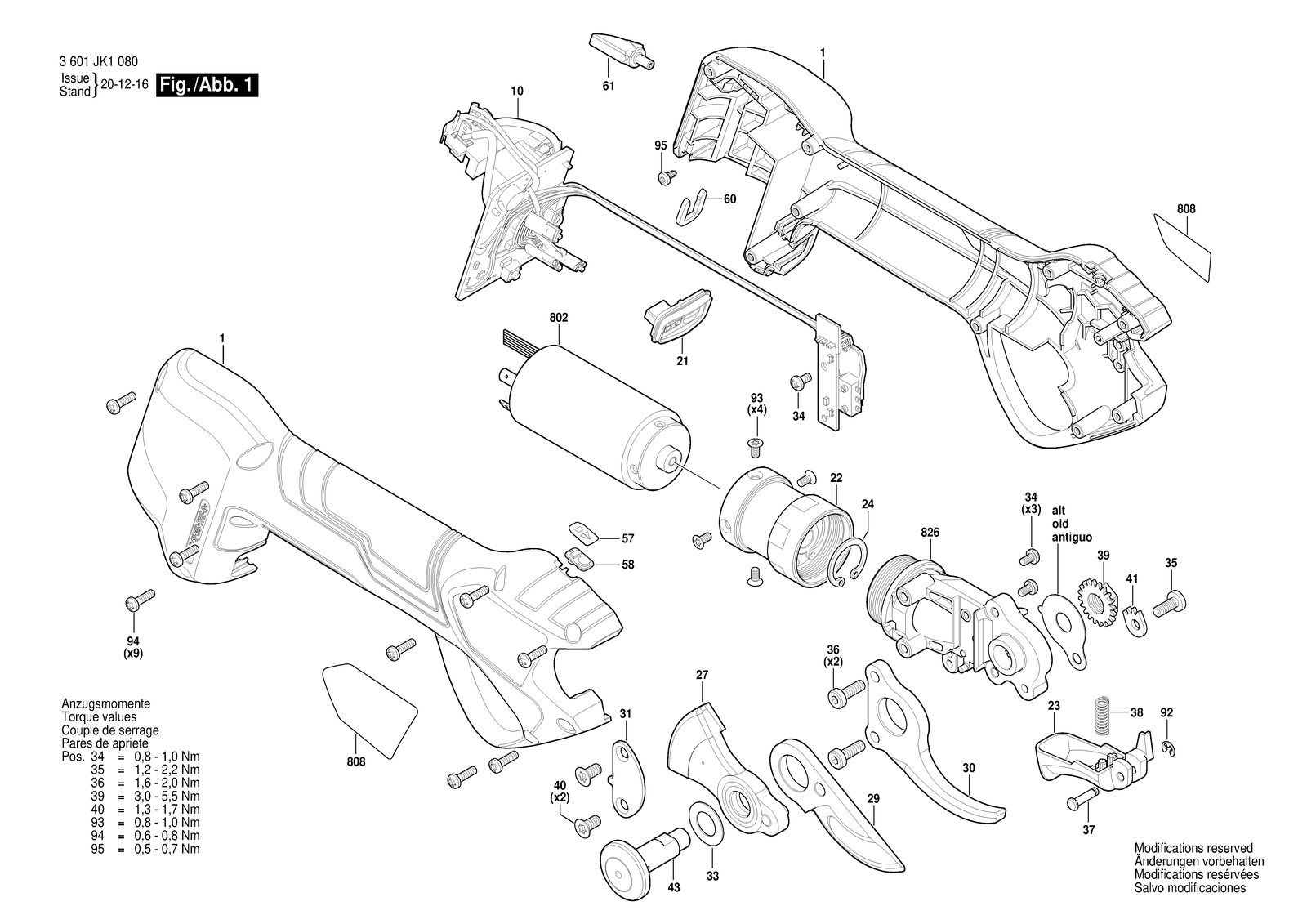

Bosch Pro Pruner parts diagram, sheet 1Bosch Pro Pruner parts diagram, sheet 2
No.Part numberPart name
11619P15717Housing Section
101619P15722Electronic Module
211619P15952Plastic covering
221619P15723Gear Box
231619P15724Trigger
242916669005Spring retaining ring
271619P15727Bevel gear
291619P15729Cutting Knife
301619P15730Blade
311619P15731Cover Plate
332600101616Shim 0,5 MM
342603414048Torx SH cap screw M3X5-8.8-Z
352603413035Oval-Head Screw M4X8
361619P01678Screw
371619P15733Bolt
382610935251Compression Spring
391619P15875Locking nut
401619P11989Screw
411619P15876Locking Plate
431619P15734Shaft
571619P15956Sticker
581619P15963Dust Separator
601619P08646Clip
611619P16103Cover
6511607A3506ABattery Pack GBA 12V 3,0 Ah LI
6511607A350C5Battery Pack GBA 12V 2.0AH LI Scm
6511607A350C8Battery Pack BAT 414 10,8/12V 2,0AH
6532607226187Fast Charger EU GAL 12V-20 230/3,6-12V 2A
6532607226189Fast Charger Gb GAL 12V-20 230/3,6-12V 2A
6532607226195Fast Charger GAL 12V-20 MEX 115V / 3.6V – 12V / 2A
6532607226201Fast Charger Br GAL 12V-20, 127V-220V
6532607226203Fast Charger GAL 12V-20 220V/12V/2A
6532607226205Fast Charger GAL 12V-20 ARG 115V / 3.6V – 12V / 2A
6532607226541Fast Charger Ind GAL 12V-20
6941619P01393Latch
8021619P16098Motor assembly
8081619P16104Nameplate
8081619P16604Nameplate
8081619P16605Nameplate
8081619P17105Nameplate
8081619P17107Nameplate
8261619P16099Bearing Bracket
921619P00445Retaining ring
933608875340Countersunk-Head Screw
941619P00220Torx Oval-Head Screw 3X10
952609001139Oval-Head Screw
