Bosch PRIO

Bosch PRIO cordless orbital sander: exploded parts diagram, 1 sheet, 19 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PRIO: 19 positions on 1 sheet

Bosch PRIO parts list (1 sheet)

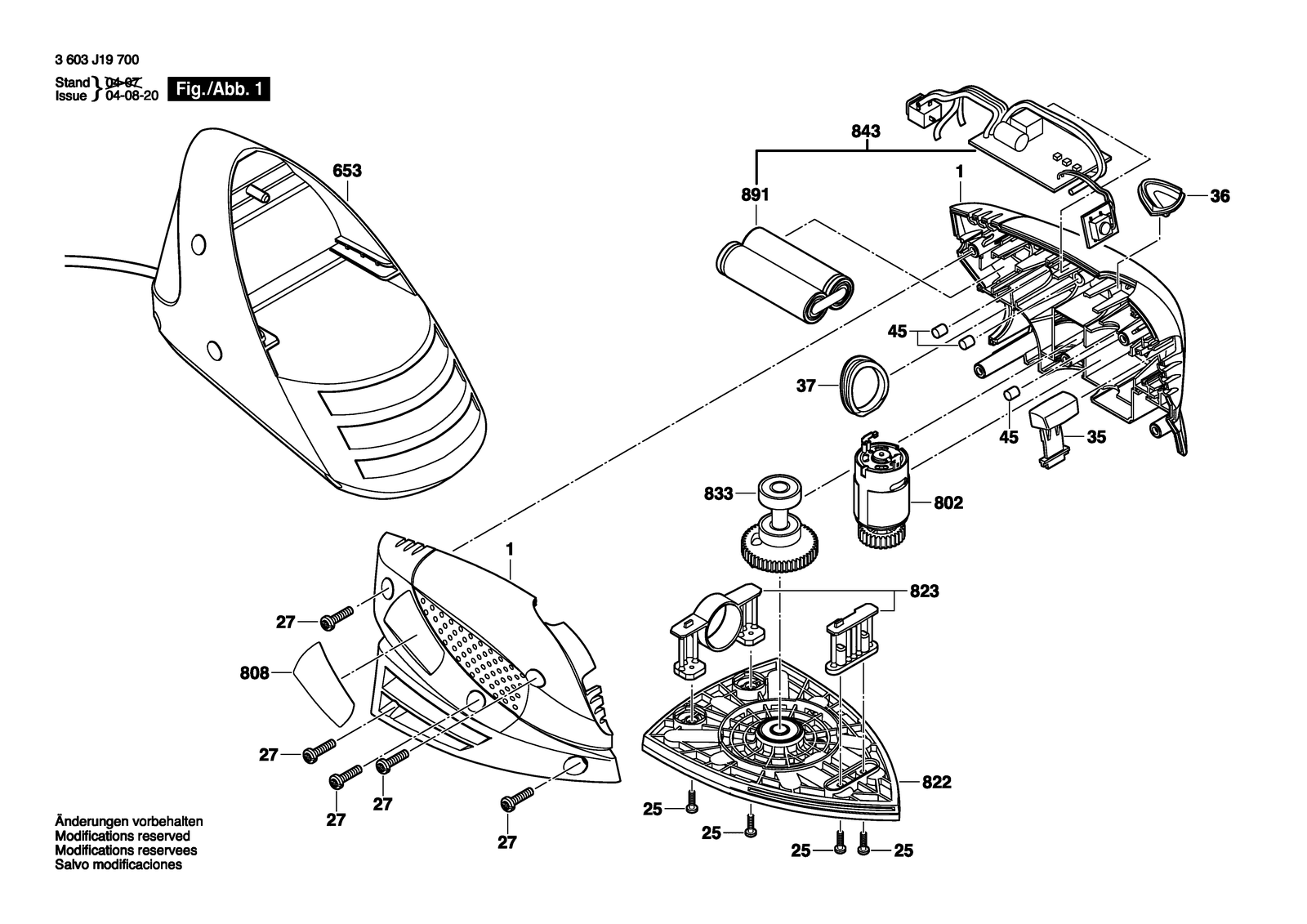

Bosch PRIO parts diagram, sheet 1
No.Part numberPart name
12609000267Housing
252603490017Torx Oval-Head Screw 3X10
272603490022Screw 4X16
352609000280Push-Button
362609000281State-Of-Charge Indicator
372609000337Rubber Plug
452609000549Rubber Buffer
6532607225085Charger EU 230/7,2V
6532607225087Charger GB 230/7,2V
6532607225147Charger AUS 240/7,2V
6532607225149Charger J 100/7,2V
8022609000605DC motor
8082609000336Nameplate
8082609002890Nameplate
8222609001937Sander Plate
8232609000686Vibration Foot
8332609000607Toothed Gear
8432609000685Electronic Module
8912609000268Battery Set
