Bosch PMS 400 P
Bosch PMS 400 P multi-saw: exploded parts diagram, 2 sheets, 89 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

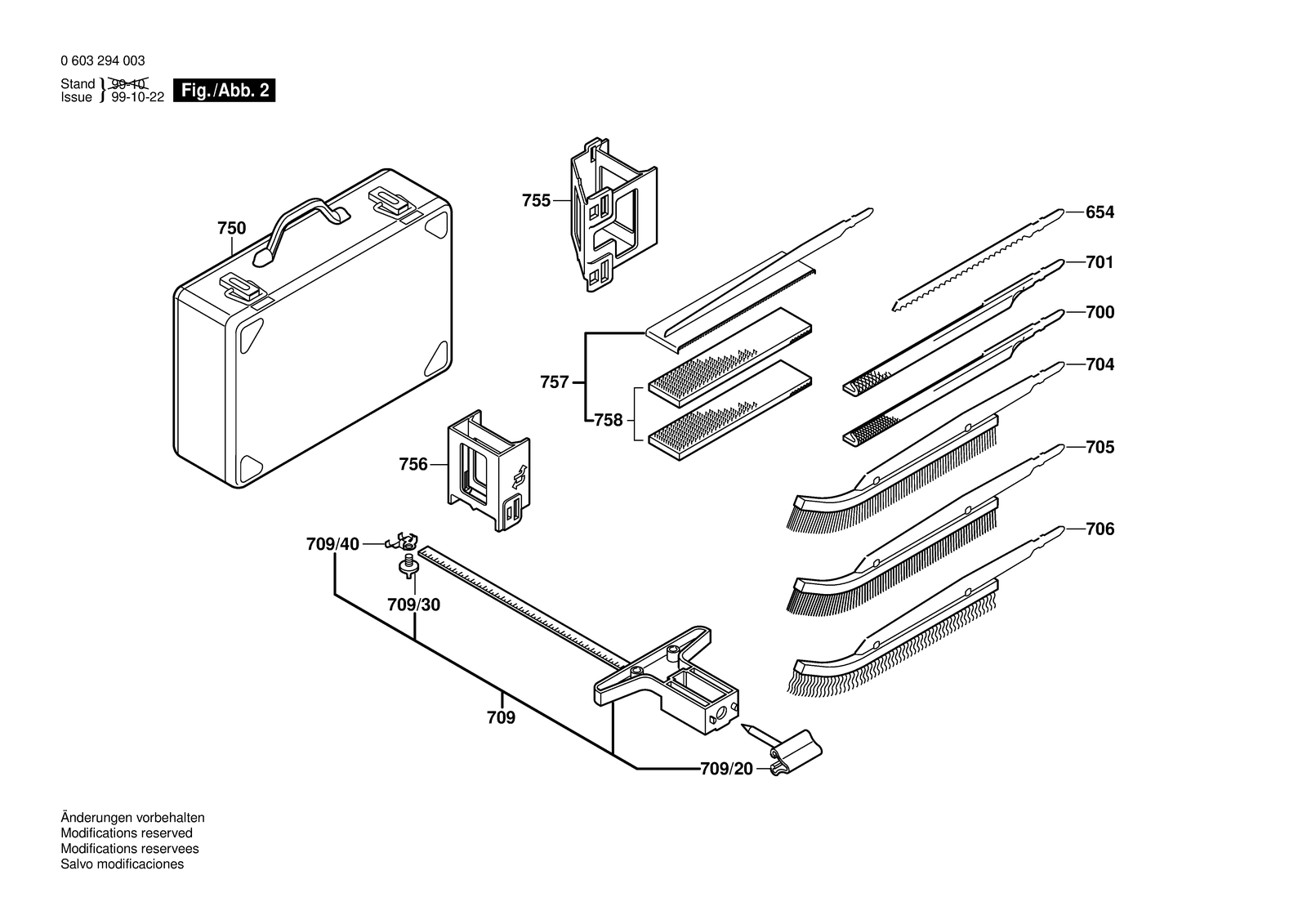

All parts of Bosch PMS 400 P: 89 positions on 2 sheets
Bosch PMS 400 P parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 16 | 2604337054 | Brush Holder |
| 2 | 2604220541 | Field 230V |
| 21 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 22 | 2601118220 | Sticker Shadow Side |
| 23 | 2605104339 | Housing Cover Blue |
| 23 | 2605104375 | Housing Section Green |
| 24 | 2603490027 | Torx Oval-Head Screw 4X40 |
| 25 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 26 | 2601006003 | Rubber Strip |
| 27 | 1900210000 | O-Ring 5,0X1,5 MM |
| 28 | 2608001005 | Switch Rocker Blue |
| 28 | 2608001012 | Switch Rocker Green |
| 29 | 2608001006 | Switch Slide Black |
| 3 | 2604010872 | Armature 230V |
| 3/60 | 2606610084 | Fan |
| 30 | 2604611033 | Compression Spring |
| 31 | 2608001010 | Switch Handle Black |
| 33 | 2603105044 | Bearing bolt |
| 34 | 2600905052 | Groove ball bearing 8X22X7 |
| 35 | 2600917006 | Needle bearing |
| 37 | 2600910005 | Needle bearing |
| 38 | 2600400028 | Bearing Sleeve |
| 39 | 2600780058 | Lifting Rod |
| 4 | 1607200113 | Switch |
| 4 | 2607200311 | Switch |
| 40 | 2603490005 | Clamp Screw |
| 41 | 2600302009 | Sintered-Metal Bushing |
| 42 | 2600101612 | Shim 0,5 MM |
| 42 | 2600116012 | Shim 0,3 MM |
| 43 | 2602316007 | Support Plate |
| 44 | 2604613000 | Compression Spring |
| 45 | 2601322014 | Guide Bracket |
| 46 | 2606333024 | Bevel Gear Z=16 |
| 47 | 2606333025 | Bevel Gear Z=16 |
| 48 | 2606491007 | Clutch Sleeve |
| 49 | 2606491008 | Coupling |
| 5 | 2604460124 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460142 | Power supply cord I 2,65M 2 X 1,0MM H05VV-F |
| 50 | 2608040061 | Rotary Handle |
| 51 | 2604617005 | Compression Spring |
| 52 | 2600101016 | Shim |
| 53 | 2603100066 | Round Rubber Ø 2 MM |
| 54 | 2601329037 | Contact Spring |
| 6 | 2600703007 | Grommet Ø7 MM |
| 60 | 2917550099 | Straight Pin DIN 6325-4M6X20 |
| 61 | 2601329045 | Transport Bracket |
| 62 | 2600591007 | Push-Button |
| 63 | 2604610033 | Compression Spring |
| 66 | 2600100613 | Shim 0,50 MM |
| 67 | 3601110216 | Reference Plate |
| 69 | 2601923008 | Fork Lever |
| 7 | 1601302017 | Fastening Clamp |
| 70 | 2600101017 | Shim |
| 700 | 2608609028 | Machine File |
| 701 | 2608609030 | Wood Rasp |
| 704 | 2608622040 | Brush |
| 705 | 2608622041 | Brush |
| 706 | 2608622042 | Brush |
| 709 | 2607001182 | Parallel-Guide |
| 709/30 | 2603490001 | Lock Screw M5X12-8,8 |
| 709/40 | 2601314004 | Support clamp |
| 71 | 2602026051 | Change-Over Switch 230V |
| 72 | 2600590006 | Ratchet Cap |
| 73 | 2600100568 | Shim 0,5 MM |
| 73 | 2600100607 | Shim 0,3 MM |
| 74 | 2600506008 | Press-In Socket |
| 75 | 2916080008 | Locking washer DIN 6799-5-FST |
| 750 | 2605438312 | Carrying Case |
| 755 | 2608045009 | Base Plate |
| 756 | 2608045010 | Base Plate |
| 757 | 2608609302 | Adapter |
| 758 | 2608604458 | Abrasive Web |
| 76 | 2603100057 | Straight Pin |
| 77 | 2601010056 | Foam Panel |
| 79 | 2600100032 | Shim 0,2 MM |
| 80 | 2604610039 | Compression Spring |
| 801 | 2605104857 | Housing Section Green |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 81 | 2602099009 | Holding-Down-Appliance |
| 813 | 2600917002 | Needle bearing |
| 816/08 | 1604652013 | Spiral Spring |
| 816/09 | 160701417J | Carbon-Brush Set |
| 832 | 2606333901 | Eccentric Cog Wheel Z=42 |
| 855 | 2601321903 | Roller Lever |
| 859 | 1619P01375 | Roller Set |
| 865 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 9 | 2601118223 | Manufacturer's nameplate Sunny Side |
