Bosch PMF 350 CES

Bosch PMF 350 CES multipurpose tool: exploded parts diagram, 1 sheet, 24 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PMF 350 CES: 24 positions on 1 sheet

Bosch PMF 350 CES parts list (1 sheet)

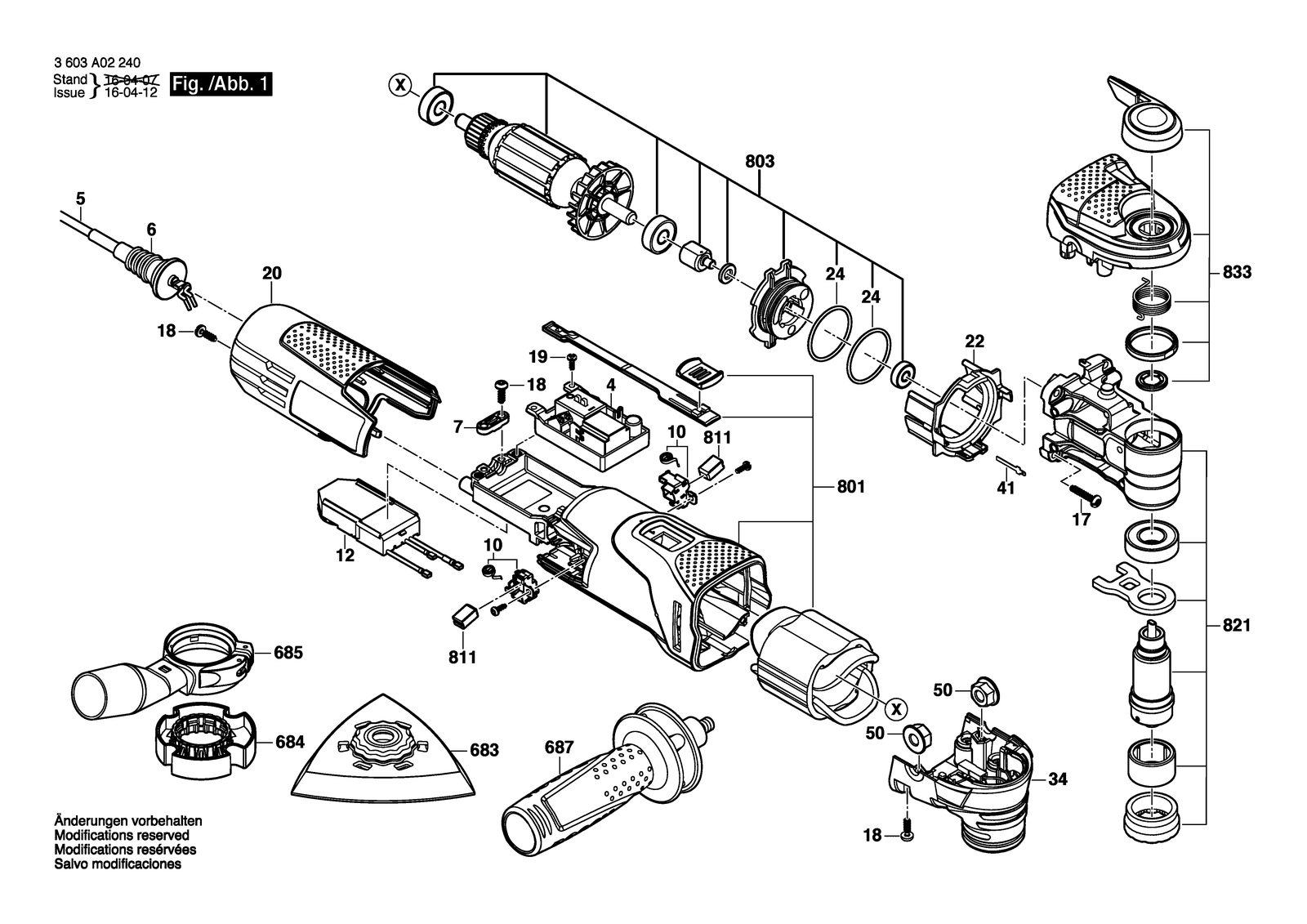

Bosch PMF 350 CES parts diagram, sheet 1
No.Part numberPart name
102604337120Brush Holder
1216072335CHSpeed governor
172603490023Torx Oval-Head Screw 4X20
182603490021Torx Oval-Head Screw 4X12
192603490016Torx Oval-Head Screw 3X8
201600A007S1End cap
22160059105RAir-Deflector Ring
24160021006SO-Ring
341600A00830Foot Cover
41600A007S7Electronic Module
411600A00DL6Contact Spring
52604460295Power supply cord AUS 2,6M 2 X 0,75MM H05 Vv-F
502609001307Hex Nut
62609005829Grommet
6831600A008LTSander Plate
6841600A0087VDepth gauge
6851600A0087KDust Extraction
687160202507VHandle
72609005869Cable Clip
8011607000C5LHousing Assembly
8031607000C4ZArmature assembly
8111607000C9JCarbon-Brush Set
8211607000C50Gear Unit
8331607000C51Cover unit
