Bosch PMF 220 CE

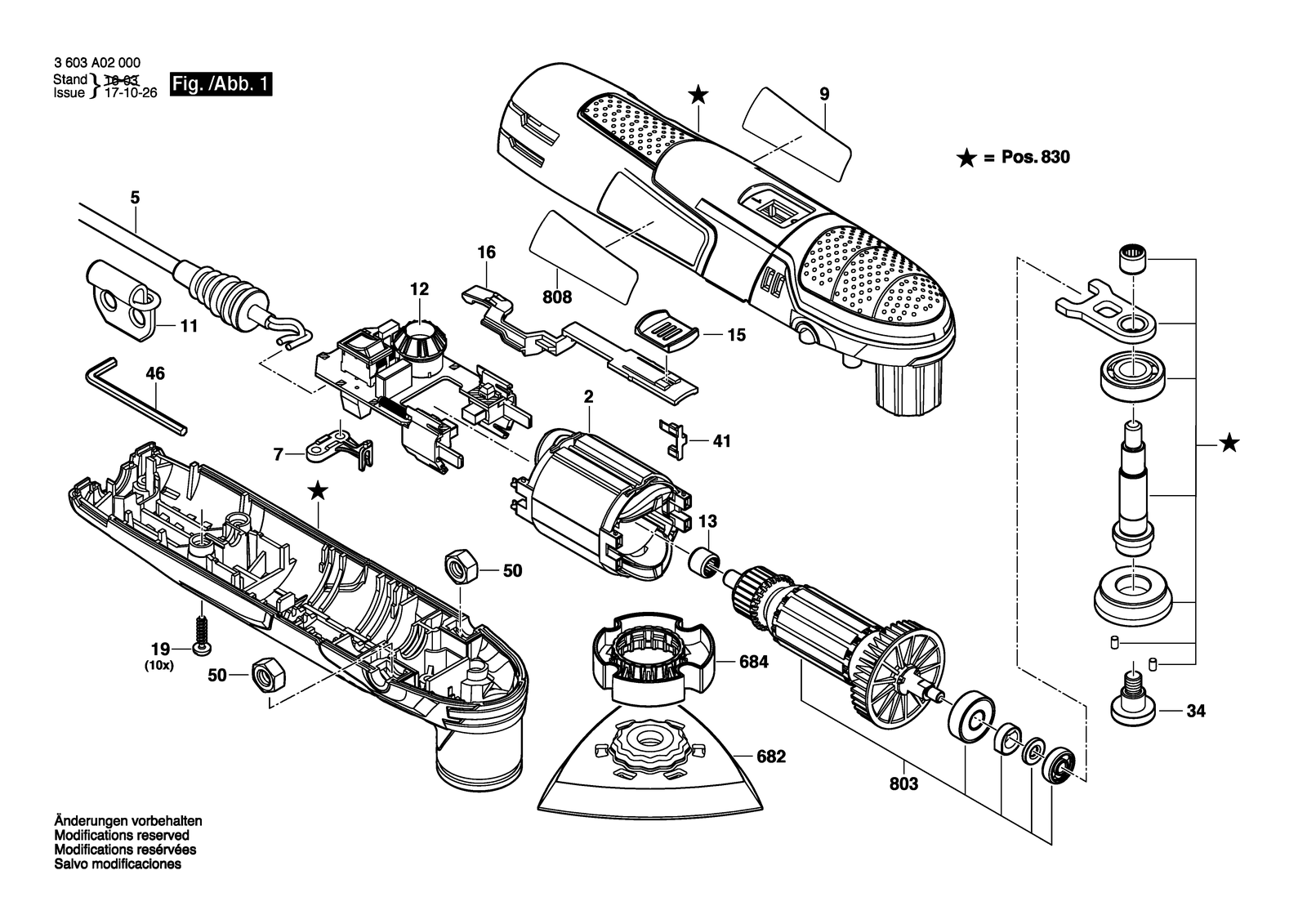

Bosch PMF 220 CE multipurpose tool: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PMF 220 CE: 23 positions on 1 sheet
Bosch PMF 220 CE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 11 | 2609006359 | Key Holder |
| 12 | 2609005719 | Electronics Module |
| 13 | 2600917002 | Needle bearing |
| 15 | 2609005541 | Slide Button |
| 16 | 2609007716 | Slider |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2609007814 | Field |
| 34 | 160343507R | Hex Screw |
| 41 | 2601329037 | Contact Spring |
| 46 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460259 | Power supply cord EU 230V 2,7M 2 X 0,75MM H05 Vv-F |
| 50 | 2915011009 | Hex Nut DIN 934-M8-8-A |
| 682 | 1600A008LS | Sander Plate |
| 684 | 1600A0087V | Depth gauge |
| 7 | 2609006171 | Cable Clip |
| 803 | 1604010B5G | Armature assembly 220-240V |
| 808 | 160111A47G | Nameplate |
| 808 | 160111A47K | Nameplate |
| 830 | 1600A00K1V | Drive Assembly |
| 9 | 160111C0KM | Manufacturer's nameplate PMF 220 Ce |
| 9 | 160111C0TZ | Manufacturer's nameplate Pdf Universal |
| 9 | 160111C1J7 | Manufacturer's nameplate PMF 2000 Ce |
