Bosch PMF 180 E Multi multipurpose tool: exploded parts diagram, 1 sheet, 31 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PMF 180 E Multi: 31 positions on 1 sheet

Bosch PMF 180 E Multi parts list (1 sheet)

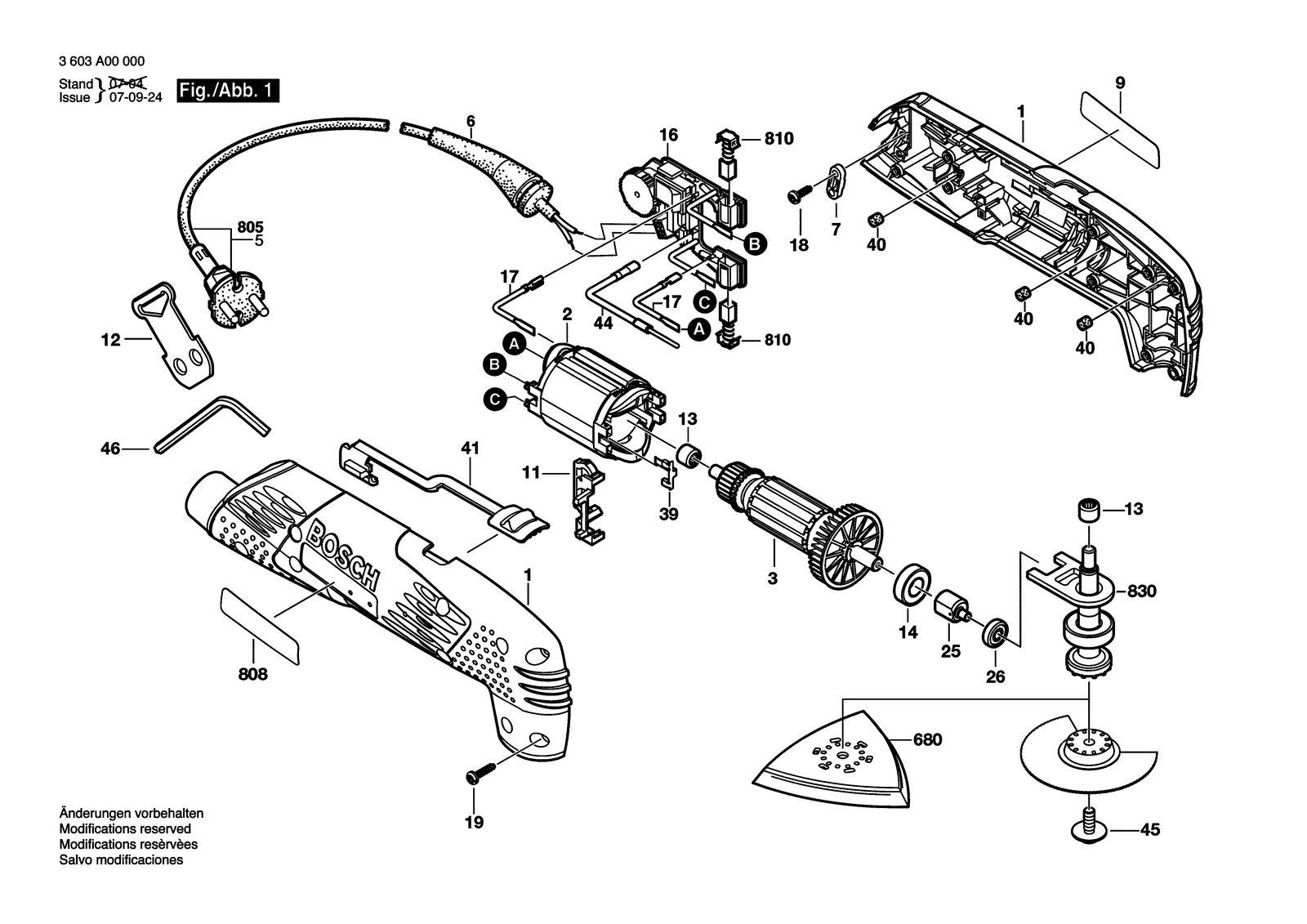

Bosch PMF 180 E Multi parts diagram, sheet 1
No.Part numberPart name
12609000222Housing Set Green
112609002054Cable Clip Black
123602311050Key Holder
132600917002Needle bearing
143130900020Groove ball bearing 8X22X7 608-2Z/C3
162607233025Speed governor 230V
172609002578Connecting Cable
182603490021Torx Oval-Head Screw 4X12
192603490022Screw 4X16
22609003564Field 220-240V
252609000225Eccentric
262609002905Ball Bearing
32609002212Armature 220-240V
392601329037Contact Spring
402609000549Rubber Buffer
412609002063Slider Black
442604448200Earth Conductor
452609000295Hex Socket Head Cap Screw
462610364015Hexagon Socket Screw Key 5 MM
52604460147Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460297Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F
62609002019Grommet
6802609002737Swing-Plate
72601035004Cable Clip
8051607000388Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F
8082609002185Nameplate
8082609002186Nameplate
8082609002217Nameplate
8102607014010Carbon-Brush Set
8302609002743Drive Shaft
92609000224Manufacturer's nameplate PMF 180 E
