Bosch PMF 10.8 LI multipurpose tool: exploded parts diagram, 1 sheet, 20 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PMF 10.8 LI: 20 positions on 1 sheet

Bosch PMF 10.8 LI parts list (1 sheet)

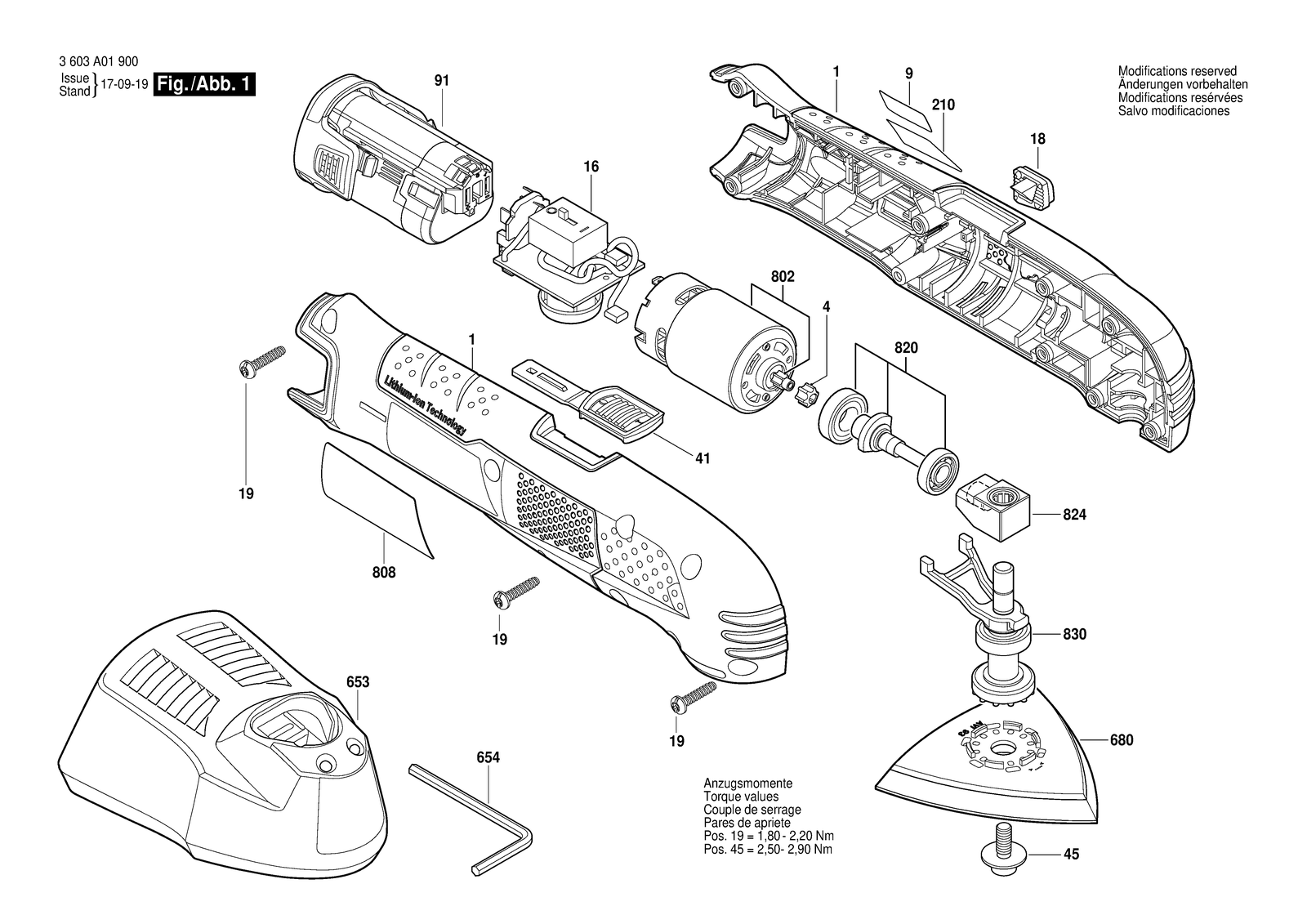

Bosch PMF 10.8 LI parts diagram, sheet 1
No.Part numberPart name
12609004114Housing Green
162609003796Electronic Assembly
182609004117Lens
192603490022Screw 4X16
2102609004739Sticker
42609100709Sleeve
412609004115Switch Slide
452609000295Hex Socket Head Cap Screw
6532607225515Fast Charger Gb AL 1115 CV 230/3,6-12V, 1H
6532607226187Fast Charger EU GAL 12V-20 230/3,6-12V 2A
6532607226191Fast Charger Aus GAL 12V-20 240/3,6-12V 2A
6542610364015Hexagon Socket Screw Key 5 MM
6802609002737Swing-Plate
8022609004831DC motor
808160111A2EDNameplate
8202609004828Eccentric Shaft
8242609004830Bearing Holder
8302609004829Drive Shaft
92609004204Manufacturer's nameplate PMF 10,8 LI
911607A3515XBattery Pack
