All parts on this sheet0
All parts of Makita PM5120: 90 positions on 2 sheets

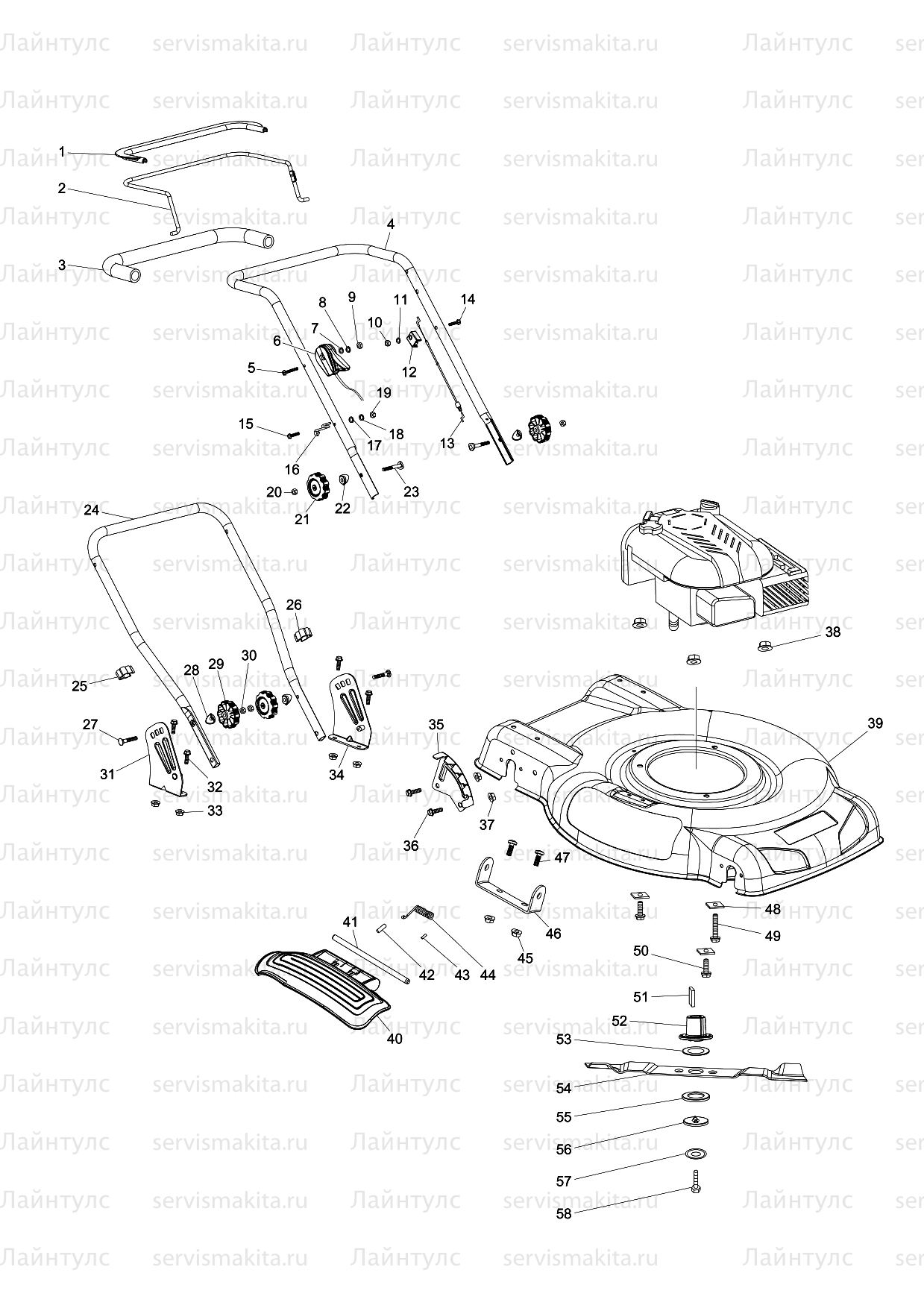

Sheet 1: Makita PM5120 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 671687001 | Makita 671687001 CLAMP PLATE |
| 2 | 671001816 | Makita 671001816 LEVER, MOTOR BRAKE |
| 3 | 671101901 | Makita 671101901 HANDLE SHEATH PLM5120_21 |
| 4 | 671001836 | Makita 671001836 HANDLE UPPER PART |
| 5 | 671006059 | Makita 671006059 BOLTPLM |
| 6 | 671010620 | Makita 671010620 THROTTLE HANDLE ASSY |
| 7 | DA00000574 | Makita DA00000574 FLAT WASHER |
| 8 | 671008003 | Makita 671008003 SPRING WASHERPLM |
| 9 | 671005016 | Makita 671005016 HEX. LOCK NUTELM |
| 10 | 671005016 | Makita 671005016 HEX. LOCK NUTELM |
| 11 | DA00000574 | Makita DA00000574 FLAT WASHER |
| 12 | DA00000573 | Makita DA00000573 CABLE FIXING PLATE |
| 13 | 671012160 | Makita 671012160 CONTROL CABLE ( MOTOR BRAKE ) |
| 14 | DA00000577 | Makita DA00000577 HEXAGON FLANGE BOLT |
| 15 | DA00000577 | Makita DA00000577 HEXAGON FLANGE BOLT |
| 16 | DA00000579 | Makita DA00000579 CABLE HOOK |
| 17 | DA00000574 | Makita DA00000574 FLAT WASHER |
| 18 | 671008003 | Makita 671008003 SPRING WASHERPLM |
| 19 | 671005016 | Makita 671005016 HEX. LOCK NUTELM |
| 20 | 671005007 | Makita 671005007 NUTPLM |
| 21 | 671453001 | Makita 671453001 STAR KNOBPLM |
| 22 | 671001085 | Makita 671001085 WASHERPLM |
| 23 | 671006004 | Makita 671006004 FLAT HEAD BOLTPLM |
| 24 | 671001815 | Makita 671001815 LOWER HANDLE |
| 25 | 671177001 | Makita 671177001 CABLE CLIPPLM |
| 26 | 671177001 | Makita 671177001 CABLE CLIPPLM |
| 27 | DA00000566 | Makita DA00000566 BOLT |
| 28 | 671001085 | Makita 671001085 WASHERPLM |
| 29 | 671453001 | Makita 671453001 STAR KNOBPLM |
| 30 | 671005007 | Makita 671005007 NUTPLM |
| 31 | DA00000590 | |
| 32 | DA00000562 | Makita DA00000562 HEXAGON FLANGE BOLT |
| 33 | DA00000537 | Makita DA00000537 HEXAGON FLANGE LOCK NUT |
| 34 | DA00000589 | |
| 35 | 671001710 | Makita 671001710 SECTOR HIGHT ADJUSTMENT |
| 36 | DA00000562 | Makita DA00000562 HEXAGON FLANGE BOLT |
| 37 | DA00000537 | Makita DA00000537 HEXAGON FLANGE LOCK NUT |
| 38 | DA00000537 | Makita DA00000537 HEXAGON FLANGE LOCK NUT |
| 39 | 671001601 | |
| 40 | DA00000559 | Makita DA00000559 SIDE DISCHARGE COVER BOARD |
| 41 | DA00000558 | Makita DA00000558 AXIS |
| 42 | 671003003 | Makita 671003003 HEAT SHRINKABLE TUBE |
| 43 | 671300101 | Makita 671300101 HEAT SHRINKABLE TUBE |
| 44 | DA00000556 | Makita DA00000556 SIDE DISCHARGE SPRING |
| 45 | DA00000543 | Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT |
| 46 | DA00000555 | Makita DA00000555 PRESSING BOARD |
| 47 | DA00000552 | Makita DA00000552 TRIGGER SCREW |
| 48 | 671002106 | Makita 671002106 SQUARE GASKETPLM |
| 49 | 671006079 | Makita 671006079 HEXAGON HEAD BOLTPLM |
| 50 | DA00000586 | Makita DA00000586 HEXAGON FLANGE BOLT |
| 51 | 671090018 | Makita 671090018 KEY |
| 52 | 671002051 | Makita 671002051 BLADE SUPPORT |
| 53 | DA00000533 | Makita DA00000533 UPPER PRESSING PLATE FOR BLADE |
| 54 | DA00000944 | Makita DA00000944 Lawn mower blade 510mm PLM5120,5121 |
| 55 | DA00000531 | Makita DA00000531 LOWER PRESSING PLATE |
| 56 | DA00000530 | Makita DA00000530 PRESSING PLATE |
| 57 | DA00000529 | Makita DA00000529 LID SHAPE WASHER |
| 58 | 671006141 | Makita 671006141 BLADE TIGHTEN BOLT |

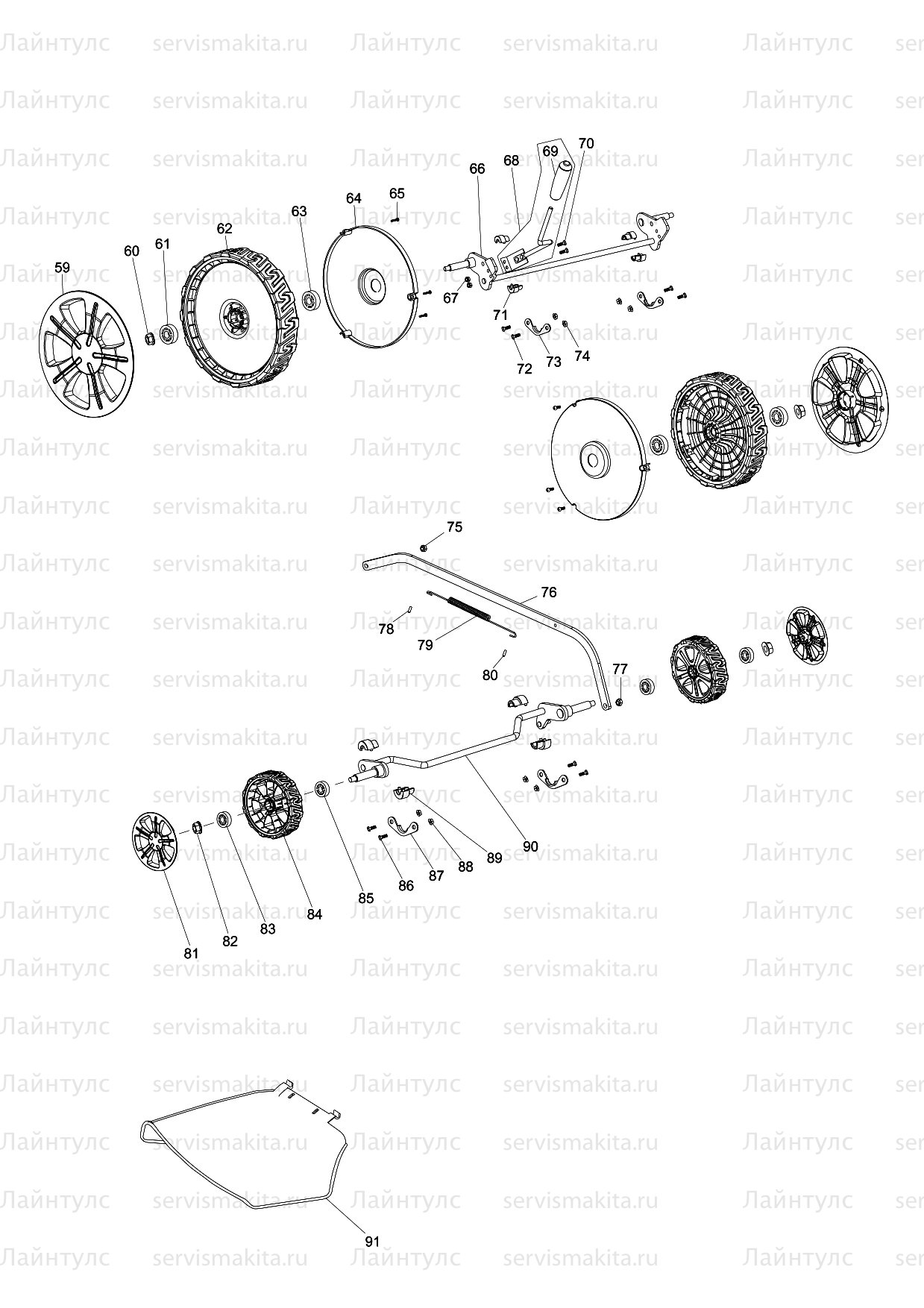

Sheet 2: Makita PM5120 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 59 | 671001322 | Makita 671001322 HUB CAPPLM5102 |
| 60 | DA00000537 | Makita DA00000537 HEXAGON FLANGE LOCK NUT |
| 61 | DA00000538 | Makita DA00000538 BEARING |
| 62 | 671002021 | Makita 671002021 WHEEL CPL.PLM5102 |
| 63 | DA00000538 | Makita DA00000538 BEARING |
| 64 | 671666001 | Makita 671666001 INNER WHEEL COVER |
| 65 | DA00000603 | Makita DA00000603 SELF-TAPPING SCREW |
| 66 | 671001828 | Makita 671001828 REAR WHEEL AXLE |
| 67 | DA00000549 | Makita DA00000549 HEXAGON LOCK NUT |
| 69 | DA00001058 | |
| 70 | 671002030 | Makita 671002030 SCREWPLM5102 |
| 71 | DA00000545 | Makita DA00000545 BEARING SHELL |
| 72 | 671002019 | Makita 671002019 TRIGGER BOLTPLM |
| 73 | DA00000542 | Makita DA00000542 FIXING RING FOR WHEEL AXIS |
| 74 | DA00000543 | Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT |
| 75 | DA00000549 | Makita DA00000549 HEXAGON LOCK NUT |
| 76 | 671001827 | Makita 671001827 LINK ROD |
| 77 | DA00000549 | Makita DA00000549 HEXAGON LOCK NUT |
| 78 | 671300101 | Makita 671300101 HEAT SHRINKABLE TUBE |
| 79 | 671011039 | Makita 671011039 SPRING |
| 80 | 671300101 | Makita 671300101 HEAT SHRINKABLE TUBE |
| 81 | DA00000536 | Makita DA00000536 WHEEL COVER |
| 82 | DA00000537 | Makita DA00000537 HEXAGON FLANGE LOCK NUT |
| 83 | DA00000538 | Makita DA00000538 BEARING |
| 84 | 671020160 | Makita 671020160 WHEEL ASSY.PLM |
| 85 | DA00000538 | Makita DA00000538 BEARING |
| 86 | 671002019 | Makita 671002019 TRIGGER BOLTPLM |
| 87 | DA00000542 | Makita DA00000542 FIXING RING FOR WHEEL AXIS |
| 88 | DA00000543 | Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT |
| 89 | DA00000545 | Makita DA00000545 BEARING SHELL |
| 90 | 671001811 | Makita 671001811 FRONT WHEEL AXIS |
| 91 | 671546001 | Makita 671546001 PROTECTION COVER PLM5120 |
