Sheet 1: Makita PM461 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | DA00000961 | |
| 2 | 671002001 | Makita 671002001 HANDLE, UPPER PARTPLM |
| 3 | 671006082 | Makita 671006082 HEXAGON FLANGE BOLT |
| 4 | 671001137 | Makita 671001137 HANDLE / CABLE,PLM |
| 5 | DA00000574 | Makita DA00000574 FLAT WASHER |
| 6 | DA00000864 | |
| 7 | DA00000575 | Makita DA00000575 LID SHAPE NUT PLM4817 |
| 8 | DA00000575 | Makita DA00000575 LID SHAPE NUT PLM4817 |
| 9 | DA00000573 | Makita DA00000573 CABLE FIXING PLATE |
| 10 | 671001113 | Makita 671001113 CONTROL CABLEPLM |
| 11 | DA00000577 | Makita DA00000577 HEXAGON FLANGE BOLT |
| 12 | DA00000577 | Makita DA00000577 HEXAGON FLANGE BOLT |
| 13 | DA00000579 | Makita DA00000579 CABLE HOOK |
| 14 | DA00000574 | Makita DA00000574 FLAT WASHER |
| 15 | DA00000864 | |
| 16 | DA00000575 | Makita DA00000575 LID SHAPE NUT PLM4817 |
| 17 | DA00000563 | Makita DA00000563 HEXAGON NUT |
| 18 | DA00000564 | Makita DA00000564 STAR KNOB |
| 19 | DA00000565 | Makita DA00000565 CURVED WASHER |
| 20 | DA00000569 | Makita DA00000569 BOLT 8*58 |
| 21 | 671001606 | |
| 22 | 671177001 | Makita 671177001 CABLE CLIPPLM |
| 23 | 671177001 | Makita 671177001 CABLE CLIPPLM |
| 24 | DA00000563 | Makita DA00000563 HEXAGON NUT |
| 25 | DA00000564 | Makita DA00000564 STAR KNOB |
| 26 | 671007007 | Makita 671007007 WASHERELM |
| 27 | 671006118 | Makita 671006118 FLAT HEAD BOLTPLM |
| 28 | DA00000562 | Makita DA00000562 HEXAGON FLANGE BOLT |
| 29 | 671001213 | Makita 671001213 BRACKET HANDLE,PLM |
| 30 | DA00000537 | Makita DA00000537 HEXAGON FLANGE LOCK NUT |
| 31 | 671001212 | Makita 671001212 BRACKET HANDLE,PLM |

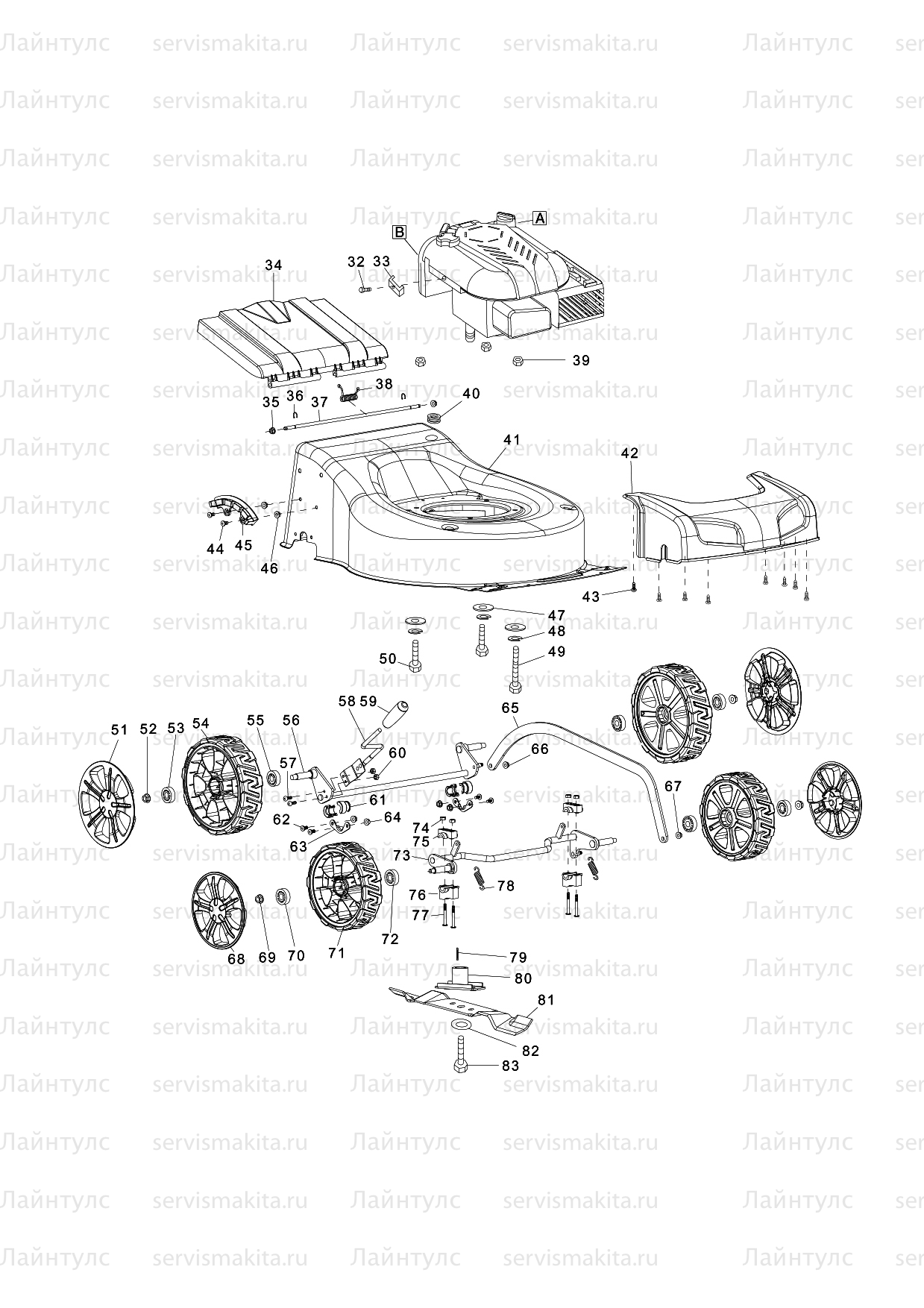

Sheet 2: Makita PM461 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 32 | 671003012 | |
| 33 | 671010830 | |
| 34 | 671468001 | Makita 671468001 REAR COVER BOAEDPLM |
| 35 | DA00000543 | Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT |
| 36 | 671009017 | Makita 671009017 OPEN BLOCK RINGPLM |
| 37 | 671001518 | Makita 671001518 LONG POLEPLM |
| 38 | 671011101 | Makita 671011101 SPRING OF REARPLM |
| 39 | DA00000537 | Makita DA00000537 HEXAGON FLANGE LOCK NUT |
| 40 | ||
| 41 | 671001526 | |
| 42 | 671659001 | Makita 671659001 FRONT COVER |
| 43 | DA00000911 | Makita DA00000911 SELF-TAPPING SCREW |
| 44 | 671002019 | Makita 671002019 TRIGGER BOLTPLM |
| 45 | 671001018 | Makita 671001018 HEIGHT ADJUSTMENTPLM |
| 46 | DA00000543 | Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT |
| 47 | 671007007 | Makita 671007007 WASHERELM |
| 48 | DA00000832 | Makita DA00000832 SPRING WASHER |
| 49 | 671006014 | Makita 671006014 HEXAGON BOLTPLM4610 |
| 50 | DA00000586 | Makita DA00000586 HEXAGON FLANGE BOLT |
| 51 | DA00000536 | Makita DA00000536 WHEEL COVER |
| 52 | DA00000537 | Makita DA00000537 HEXAGON FLANGE LOCK NUT |
| 53 | DA00000538 | Makita DA00000538 BEARING |
| 54 | 671020160 | Makita 671020160 WHEEL ASSY.PLM |
| 55 | DA00000538 | Makita DA00000538 BEARING |
| 56 | 671001438 | Makita 671001438 REAR WHEELS AXLEPLM4610 |
| 57 | DA00000912 | |
| 58 | 671001430 | Makita 671001430 LEVER, HEIGHTPLM |
| 59 | DA00001058 | |
| 60 | 671005011 | Makita 671005011 HEXAGONAL LOCKINGPLM |
| 61 | DA00001025 | Makita DA00001025 WHEEL AXIS SHEATH |
| 62 | 671002019 | Makita 671002019 TRIGGER BOLTPLM |
| 63 | DA00000542 | Makita DA00000542 FIXING RING FOR WHEEL AXIS |
| 64 | DA00000543 | Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT |
| 65 | DA00001154 | |
| 66 | DA00000549 | Makita DA00000549 HEXAGON LOCK NUT |
| 67 | DA00000549 | Makita DA00000549 HEXAGON LOCK NUT |
| 68 | 671001176 | Makita 671001176 WHEEL COVERPLM |
| 69 | DA00000537 | Makita DA00000537 HEXAGON FLANGE LOCK NUT |
| 70 | DA00000538 | Makita DA00000538 BEARING |
| 71 | 671020150 | Makita 671020150 WHEEL ASSY.PLM |
| 72 | DA00000538 | Makita DA00000538 BEARING |
| 73 | 671001786 | Makita 671001786 FRONT WHEEL AXIS |
| 74 | DA00000549 | Makita DA00000549 HEXAGON LOCK NUT |
| 75 | 671445001 | Makita 671445001 PRESSING PLATE OFPLM |
| 76 | 671418001 | Makita 671418001 FIXED BRACKETPLM |
| 77 | 671002028 | Makita 671002028 TRIGGER BOLTPLM |
| 78 | 671011125 | Makita 671011125 EXTENSION SPRINGPLM |
| 79 | 671090002 | Makita 671090002 FLAT KEYPLM |
| 80 | 671015252 | Makita 671015252 BLADE SUPPORTPLM5102 |
| 81 | 671014610 | |
| 82 | 671010730 | Makita 671010730 LID SHAPE WASHER |
| 83 | 671006065 | Makita 671006065 BLADE TIGHTENING SCREW PLM46 (2012) |
Sheet 3: Makita PM461 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 84 | 671454001 | Makita 671454001 HANDLE OF GRASSPLM |
| 85 | 671467001 | Makita 671467001 GRASS-BOX, UPPERPLM |
| 86 | DA00000326 | Makita DA00000326 SELF DRIVING SCREW 5X16 |
| 87 | 671001443 | Makita 671001443 GRASS CATCHERPLM |
| 88 | DA00000025 | Makita DA00000025 WASHER, UR3000/ET-40 |
| 89 | DA00000888 | Makita DA00000888 SELF-TAPPING SCREW |
| 90 | DA00000335 | Makita DA00000335 FRONT AXLE PLATE |
| 91 | DA00000888 | Makita DA00000888 SELF-TAPPING SCREW |
| 92 | 671001353 | Makita 671001353 PRESSING BARPLM |
| 93 | DA00000966 | |
| 94 | 671660001 | Makita 671660001 MULCHING BLOCK |
| 95 | 671316004 | Makita 671316004 LOCKING BUTTONPLM |
| 96 | 671011005 | Makita 671011005 SPRINGPLM |
| 97 | 671317001 | Makita 671317001 PRESSING PLATEPLM |
| 98 | DA00000603 | Makita DA00000603 SELF-TAPPING SCREW |
