Sheet 1: Makita PM001G parts diagram

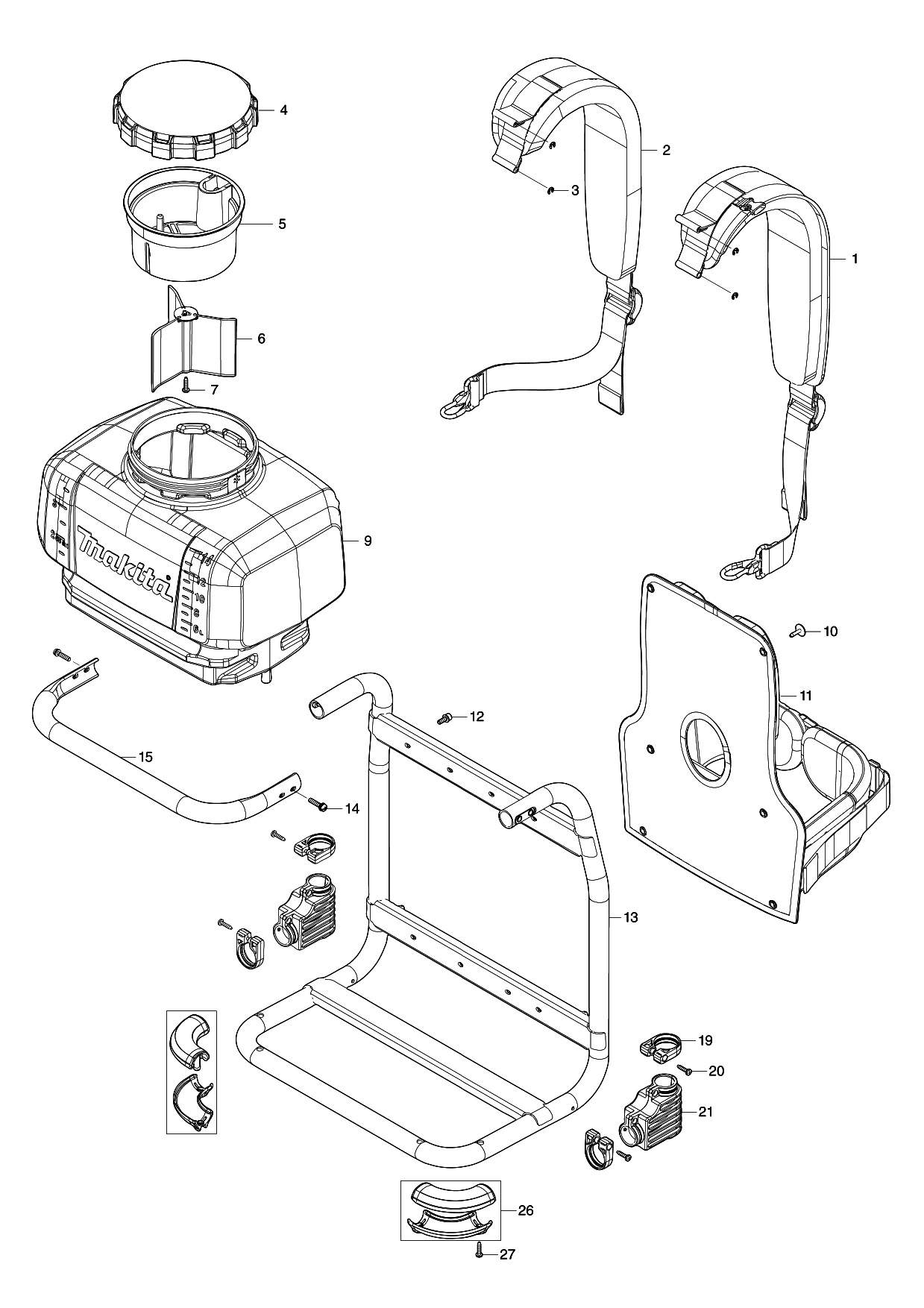

Makita PM001G parts diagram, sheet 1
No.Part numberPart name
1162C47-1
2162C46-3
3961011-9Makita 961011-9 STOP RING, HR2450
4141764-8
5413M64-7
6413M65-5
7266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
9136980-5
10252274-1
11162B58-0
12922218-2Makita 922218-2 HEX SOCKET HEAD BOLT M5*14, MEM427
13327A95-7
14265A08-9
15327A96-5
19413K11-6
20266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
21422977-3
26183X85-6
27266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951

Sheet 2: Makita PM001G parts diagram

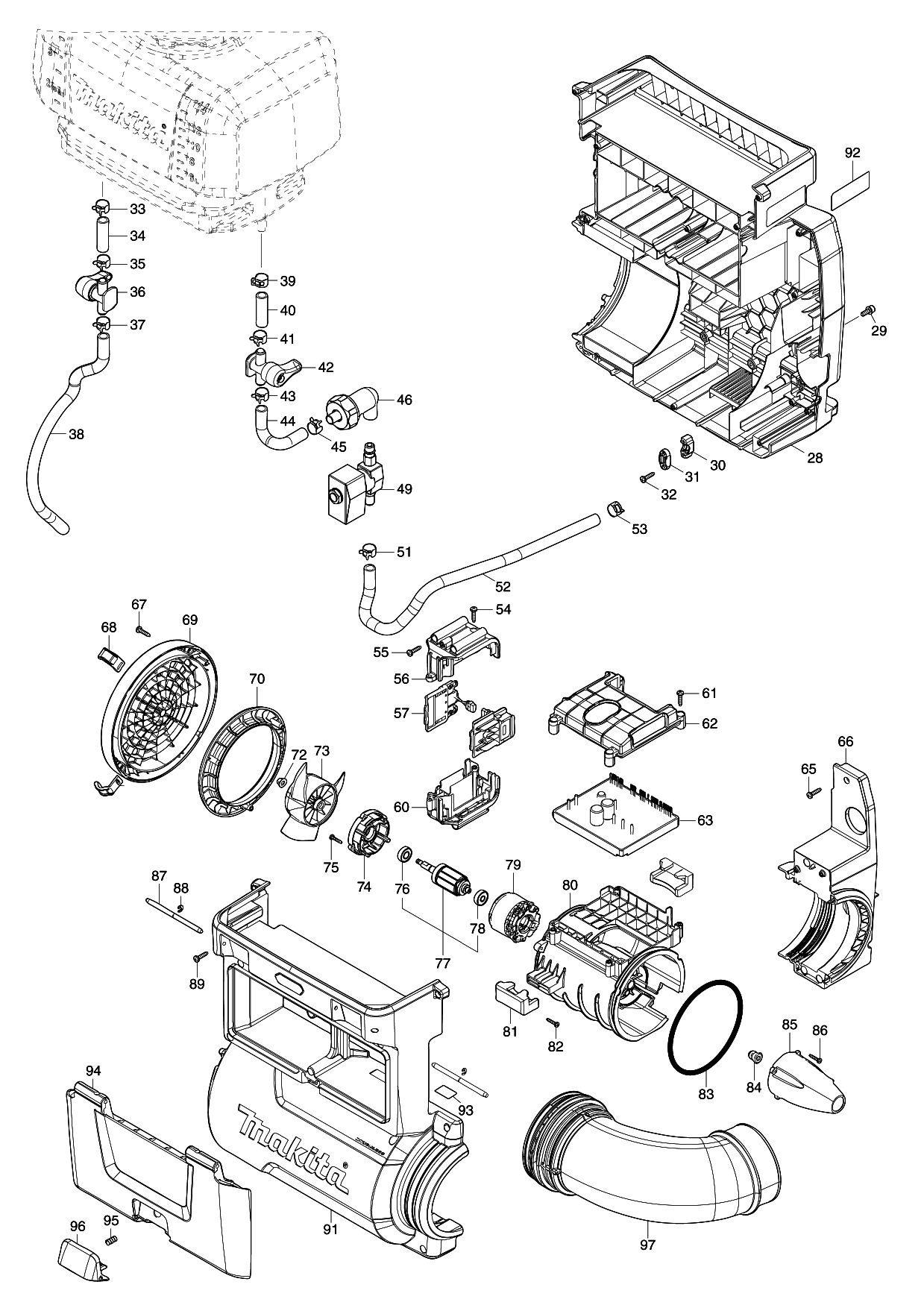

Makita PM001G parts diagram, sheet 2
No.Part numberPart name
28141M69-4
29922218-2Makita 922218-2 HEX SOCKET HEAD BOLT M5*14, MEM427
30687051-6Makita 687051-6 STRAIN RELIEF
31687124-5Makita 687124-5 CORD CLAMP, MT951
32266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
33282023-2Makita 282023-2 HOSE CLAMP 14
34422981-2
35282023-2Makita 282023-2 HOSE CLAMP 14
36122D52-6
37282023-2Makita 282023-2 HOSE CLAMP 14
38422982-0
39282023-2Makita 282023-2 HOSE CLAMP 14
40422981-2
41282023-2Makita 282023-2 HOSE CLAMP 14
42122D52-6
43282023-2Makita 282023-2 HOSE CLAMP 14
44422980-4
45282023-2Makita 282023-2 HOSE CLAMP 14
46122E16-6
49136985-5
51282023-2Makita 282023-2 HOSE CLAMP 14
52422983-8
53282023-2Makita 282023-2 HOSE CLAMP 14
54266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
55266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
56183Y74-7
57632P65-6Makita 632P65-6 TERMINAL UNIT
60183Y74-7
61266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
62413M52-4
63620K75-5
65266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
66413M43-5
67266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
68413M58-2
69413G61-7
70413G72-2
72252286-4
73240177-1Makita 240177-1 FAN 110, DUB362
74413G67-5
75266130-9Makita 266130-9 Tapping Screw PT 3X16, 6935FD
76210040-2Makita 210040-2 BALL BEARING 698LLU
77519639-3
78210022-4Makita 210022-4 BALL BEARING 626DDW, 9526NB
79629C09-7
80413M44-3
81422877-7
82266130-9Makita 266130-9 Tapping Screw PT 3X16, 6935FD
83424721-4Makita 424721-4 RUBBER RING 115
84422879-3
85413G64-1
86266130-9Makita 266130-9 Tapping Screw PT 3X16, 6935FD
87256938-9
88961011-9Makita 961011-9 STOP RING, HR2450
89266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
91136912-2
928587F3-0
938587G1-1
94413M54-0
95231240-1Makita 231240-1 COMPRESSION SPRING 7, 2412N
96413M55-8
97413M51-6

Sheet 3: Makita PM001G parts diagram

Makita PM001G parts diagram, sheet 3
No.Part numberPart name
99183X87-2
104265C61-7
105620L36-1
106620L35-3
107651492-2
108413G68-3
109687260-7Makita 687260-7 CORD CLAMP, HR2470
110266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
111183X87-2
112266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
113699220-7
114162B56-4
115281040-9
116413M50-8
117122F35-8
118266007-8Makita 266007-8 TAPPING SCREW, 16G341A
119453505-3Makita 453505-3 NOZZLE CAP
120213686-3Makita 213686-3 O-RING 12
121268288-0Makita 268288-0 PIN 5,5
122234244-2Makita 234244-2 COMPRESSION SPRING 3
123282023-2Makita 282023-2 HOSE CLAMP 14
124422984-6
125282023-2Makita 282023-2 HOSE CLAMP 14
126122D53-4
127413M66-3
128266045-0Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20
129213437-4Makita 213437-4 O RING 28, HR261D
130413M59-0
131327A93-1
132213647-3
133141M72-5
134911228-4Makita 911228-4 PAN HEAD SCREW M5*18, 5377MG
135281040-9
136632L49-0Makita 632L49-0 SWITCH UNIT, DUC254
137233101-1Makita 233101-1 COMPRESSION SPRING 4, AN611
138413M49-3
139162B60-3
