Bosch PLS 300

Bosch PLS 300 saw table: exploded parts diagram, 1 sheet, 11 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PLS 300: 11 positions on 1 sheet

Bosch PLS 300 parts list (1 sheet)

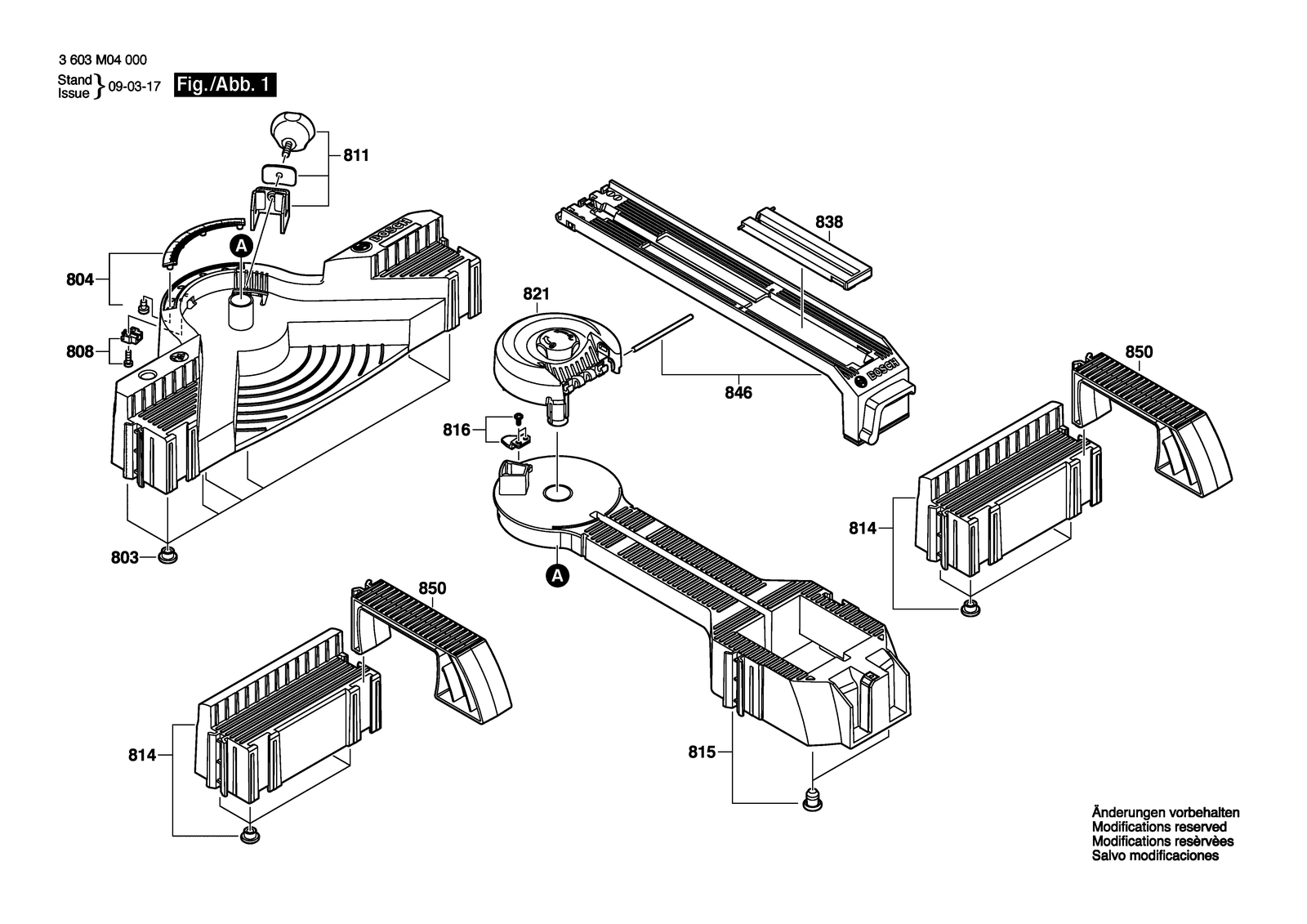

Bosch PLS 300 parts diagram, sheet 1
No.Part numberPart name
8031619P05823Supporting foot
8041619P05824Scale Plate
8081619P05825Anti-Twist Lock
8111619P05826Adjustment Knob
8141619P05822Lengthening Piece
8151619P05827Carrier
8161619P05828Guide Piece
8211619P05829Swivel Plate
8381619P05830Width Stop
8461619P05831Guide Rail
8501619P05832Extension Stand
