Makita PLM5121N2
Makita PLM5121N2: exploded parts diagram, 2 sheets, 134 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita PLM5121N2: 134 positions on 2 sheets

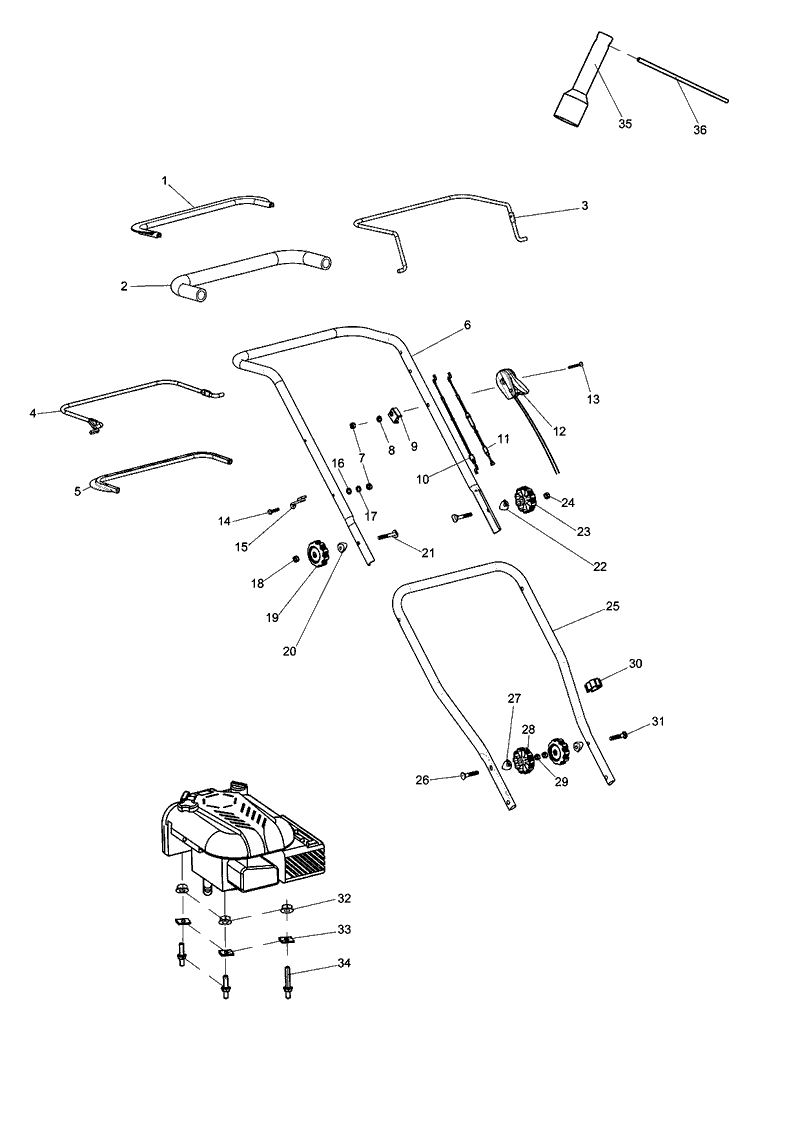

Sheet 1: Makita PLM5121N2 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 671687001 | Makita 671687001 CLAMP PLATE |
| 2 | 671103001 | Makita 671103001 HANDLE SHEATH |
| 3 | DA00001087 | |
| 4 | DA00001060 | |
| 5 | 671687001 | Makita 671687001 CLAMP PLATE |
| 6 | 671001814 | Makita 671001814 HANDLE UPPER PART |
| 7 | DA00000575 | Makita DA00000575 LID SHAPE NUT PLM4817 |
| 8 | DA00000574 | Makita DA00000574 FLAT WASHER |
| 9 | DA00000573 | Makita DA00000573 CABLE FIXING PLATE |
| 10 | DA00001164 | Makita DA00001164 FRAMEOUT CABLE, PLM5120N2 |
| 11 | DA00000952 | Makita DA00000952 DRIVING CABLE |
| 12 | DA00001165 | Makita DA00001165 THROTTLE ASSY, PLM5120N2 |
| 13 | DA00000572 | Makita DA00000572 HEXAGON FLANGE BOLT |
| 14 | DA00000577 | Makita DA00000577 HEXAGON FLANGE BOLT |
| 15 | DA00000579 | Makita DA00000579 CABLE HOOK |
| 16 | DA00000574 | Makita DA00000574 FLAT WASHER |
| 17 | DA00000576 | Makita DA00000576 SPRING WASHER |
| 18 | DA00000563 | Makita DA00000563 HEXAGON NUT |
| 19 | DA00000564 | Makita DA00000564 STAR KNOB |
| 20 | DA00000924 | Makita DA00000924 CURVE SHAPE GASKET, PLM4620N2 |
| 21 | DA00000569 | Makita DA00000569 BOLT 8*58 |
| 22 | DA00000924 | Makita DA00000924 CURVE SHAPE GASKET, PLM4620N2 |
| 23 | DA00000564 | Makita DA00000564 STAR KNOB |
| 24 | DA00000563 | Makita DA00000563 HEXAGON NUT |
| 25 | DA00000951 | Makita DA00000951 LOWE HANDLE |
| 26 | DA00000566 | Makita DA00000566 BOLT |
| 27 | DA00000924 | Makita DA00000924 CURVE SHAPE GASKET, PLM4620N2 |
| 28 | DA00000564 | Makita DA00000564 STAR KNOB |
| 29 | DA00000563 | Makita DA00000563 HEXAGON NUT |
| 30 | DA00001170 | |
| 31 | DA00000566 | Makita DA00000566 BOLT |
| 32 | DA00000537 | Makita DA00000537 HEXAGON FLANGE LOCK NUT |
| 33 | DA00000582 | Makita DA00000582 SQUARE WASHER |
| 34 | DA00000617 | Makita DA00000617 SPECIAL BOLT |
| 35 | DA00000583 | |
| 36 | DA00000584 | Makita DA00000584 SPANNER POLE |

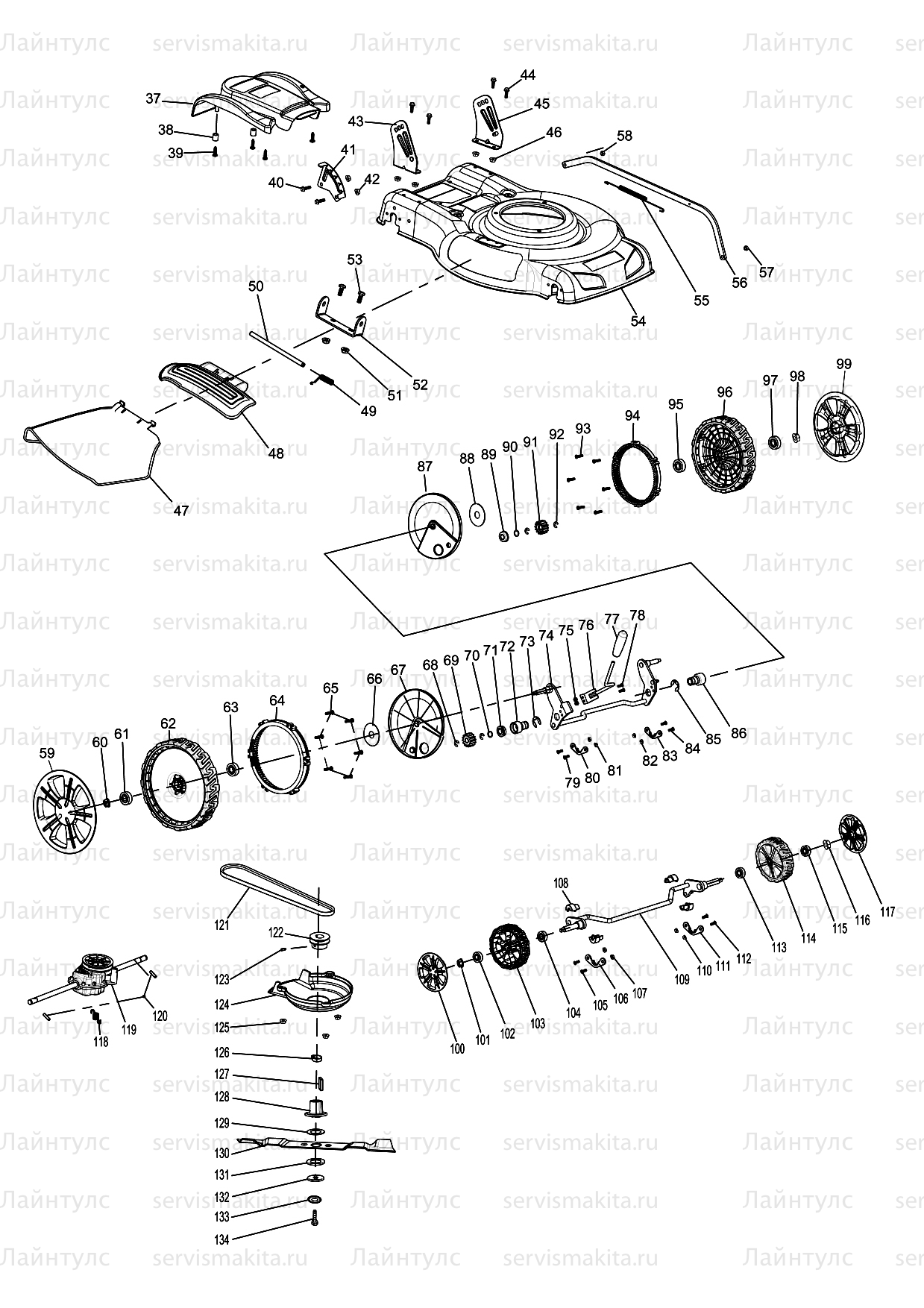

Sheet 2: Makita PLM5121N2 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 37 | 671689001 | Makita 671689001 GEAR BOX COVER |
| 38 | 671314001 | Makita 671314001 COVER FIXING CAP |
| 39 | DA00000614 | Makita DA00000614 SELF-TAPPING SCREW PLM4819 |
| 40 | DA00000562 | Makita DA00000562 HEXAGON FLANGE BOLT |
| 41 | 671001710 | Makita 671001710 SECTOR HIGHT ADJUSTMENT |
| 42 | DA00000537 | Makita DA00000537 HEXAGON FLANGE LOCK NUT |
| 43 | DA00000588 | Makita DA00000588 RIGHT BRACKET OF HANDLE |
| 44 | DA00000562 | Makita DA00000562 HEXAGON FLANGE BOLT |
| 45 | DA00000587 | Makita DA00000587 LIEFT BRACKET OF HANDLE |
| 46 | DA00000537 | Makita DA00000537 HEXAGON FLANGE LOCK NUT |
| 47 | DA00000560 | Makita DA00000560 SIDE DISCHARGE COVER |
| 48 | DA00000559 | Makita DA00000559 SIDE DISCHARGE COVER BOARD |
| 49 | DA00000556 | Makita DA00000556 SIDE DISCHARGE SPRING |
| 50 | DA00000558 | Makita DA00000558 AXIS |
| 51 | DA00000543 | Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT |
| 52 | DA00000555 | Makita DA00000555 PRESSING BOARD |
| 53 | DA00000552 | Makita DA00000552 TRIGGER SCREW |
| 54 | 671015250 | OTHR Makita 671015250 DECK BLUE |
| 55 | DA00000546 | Makita DA00000546 CONNECTION ROD SPRING |
| 56 | 671001813 | Makita 671001813 LINK ROD 20" |
| 57 | DA00000549 | Makita DA00000549 HEXAGON LOCK NUT |
| 58 | DA00000549 | Makita DA00000549 HEXAGON LOCK NUT |
| 59 | 671001322 | Makita 671001322 HUB CAPPLM5102 |
| 60 | DA00000537 | Makita DA00000537 HEXAGON FLANGE LOCK NUT |
| 61 | DA00000538 | Makita DA00000538 BEARING |
| 62 | 671002021 | Makita 671002021 WHEEL CPL.PLM5102 |
| 63 | DA00000538 | Makita DA00000538 BEARING |
| 64 | 671200010 | Makita 671200010 GEAR WHEEL |
| 65 | DA00000603 | Makita DA00000603 SELF-TAPPING SCREW |
| 66 | 671007065 | Makita 671007065 BIG WASHER |
| 67 | 671251800 | Makita 671251800 INNER WHEEL COVER |
| 68 | DA00000604 | Makita DA00000604 OPEN BLOCK RING |
| 69 | DA00001091 | Makita DA00001091 RIGHT GEAR |
| 70 | 671007059 | |
| 71 | DA00001029 | Makita DA00001029 BEARING |
| 72 | DA00000610 | Makita DA00000610 BEARING SHEATH |
| 73 | DA00000612 | Makita DA00000612 OPEN BLOCK RING |
| 74 | 671001812 | Makita 671001812 REAR WHEEL AXLE |
| 75 | DA00000549 | Makita DA00000549 HEXAGON LOCK NUT |
| 76 | 671001707 | |
| 77 | DA00001058 | |
| 78 | 671002030 | Makita 671002030 SCREWPLM5102 |
| 79 | 671002019 | Makita 671002019 TRIGGER BOLTPLM |
| 80 | DA00000542 | Makita DA00000542 FIXING RING FOR WHEEL AXIS |
| 81 | DA00000543 | Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT |
| 82 | DA00000543 | Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT |
| 83 | DA00000542 | Makita DA00000542 FIXING RING FOR WHEEL AXIS |
| 84 | 671002019 | Makita 671002019 TRIGGER BOLTPLM |
| 85 | DA00000612 | Makita DA00000612 OPEN BLOCK RING |
| 86 | DA00000610 | Makita DA00000610 BEARING SHEATH |
| 87 | 671251800 | Makita 671251800 INNER WHEEL COVER |
| 88 | 671007065 | Makita 671007065 BIG WASHER |
| 89 | DA00001029 | Makita DA00001029 BEARING |
| 90 | 671007059 | |
| 91 | DA00001090 | Makita DA00001090 LEFT OUTPUT GEAR ASSEMBLY |
| 92 | DA00000604 | Makita DA00000604 OPEN BLOCK RING |
| 93 | DA00000603 | Makita DA00000603 SELF-TAPPING SCREW |
| 94 | 671200010 | Makita 671200010 GEAR WHEEL |
| 95 | DA00000538 | Makita DA00000538 BEARING |
| 96 | 671002021 | Makita 671002021 WHEEL CPL.PLM5102 |
| 97 | DA00000538 | Makita DA00000538 BEARING |
| 98 | DA00000537 | Makita DA00000537 HEXAGON FLANGE LOCK NUT |
| 99 | 671001322 | Makita 671001322 HUB CAPPLM5102 |
| 100 | DA00000536 | Makita DA00000536 WHEEL COVER |
| 101 | DA00000537 | Makita DA00000537 HEXAGON FLANGE LOCK NUT |
| 102 | DA00000538 | Makita DA00000538 BEARING |
| 103 | 671020160 | Makita 671020160 WHEEL ASSY.PLM |
| 104 | DA00000538 | Makita DA00000538 BEARING |
| 105 | 671002019 | Makita 671002019 TRIGGER BOLTPLM |
| 106 | DA00000542 | Makita DA00000542 FIXING RING FOR WHEEL AXIS |
| 107 | DA00000543 | Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT |
| 108 | DA00000545 | Makita DA00000545 BEARING SHELL |
| 109 | 671001811 | Makita 671001811 FRONT WHEEL AXIS |
| 110 | DA00000543 | Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT |
| 111 | DA00000542 | Makita DA00000542 FIXING RING FOR WHEEL AXIS |
| 112 | 671002019 | Makita 671002019 TRIGGER BOLTPLM |
| 113 | DA00000538 | Makita DA00000538 BEARING |
| 114 | 671020160 | Makita 671020160 WHEEL ASSY.PLM |
| 115 | DA00000538 | Makita DA00000538 BEARING |
| 116 | DA00000537 | Makita DA00000537 HEXAGON FLANGE LOCK NUT |
| 117 | DA00000536 | Makita DA00000536 WHEEL COVER |
| 118 | 671011173 | Makita 671011173 GEAR BOX SPRING |
| 119 | 671502015 | Makita 671502015 GEAR BOX |
| 120 | DA00000597 | Makita DA00000597 COLUMN PIN |
| 121 | 671020380 | Makita 671020380 V-BELT |
| 122 | DA00000599 | Makita DA00000599 Driving Wheel |
| 123 | DA00000598 | Makita DA00000598 SCREW |
| 124 | DA00000594 | Makita DA00000594 BELT PROTECTING COVER |
| 125 | DA00000537 | Makita DA00000537 HEXAGON FLANGE LOCK NUT |
| 126 | 671319001 | Makita 671319001 BLADE LINING SHEATH |
| 127 | DA00000535 | Makita DA00000535 FLAT KEY |
| 128 | 671002049 | Makita 671002049 BLADE SUPPORT |
| 129 | DA00000533 | Makita DA00000533 UPPER PRESSING PLATE FOR BLADE |
| 130 | DA00000944 | Makita DA00000944 Lawn mower blade 510mm PLM5120,5121 |
| 131 | DA00000531 | Makita DA00000531 LOWER PRESSING PLATE |
| 132 | DA00000530 | Makita DA00000530 PRESSING PLATE |
| 133 | DA00000529 | Makita DA00000529 LID SHAPE WASHER |
| 134 | 671006141 | Makita 671006141 BLADE TIGHTEN BOLT |
