Makita PLM5113

Makita PLM5113: exploded parts diagram, 4 sheets, 182 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita PLM5113: 182 positions on 4 sheets

Sheet 1: Makita PLM5113 parts diagram

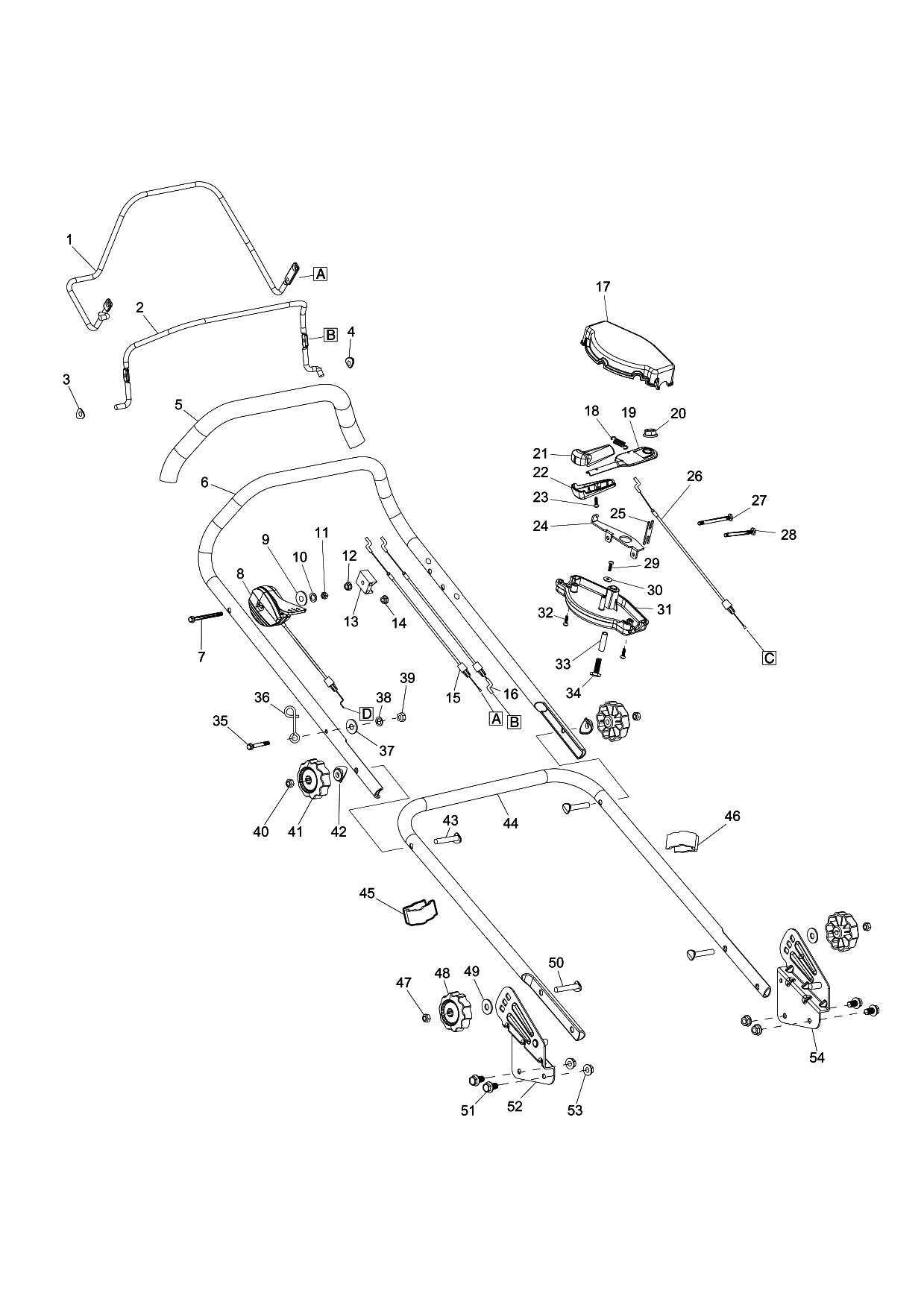

Makita PLM5113 parts diagram, sheet 1
No.Part numberPart name
1DA00000964
2DA00000961
3671001524Makita 671001524 PRESSING PLATE OFPLM5102
4671001524Makita 671001524 PRESSING PLATE OFPLM5102
5671001029Makita 671001029 HANDLE SHEATH
6DA00000963
7671006082Makita 671006082 HEXAGON FLANGE BOLT
8671001150Makita 671001150 HANDLE / CABLE,PLM5102
9DA00000574Makita DA00000574 FLAT WASHER
10DA00000576Makita DA00000576 SPRING WASHER
11DA00000575Makita DA00000575 LID SHAPE NUT PLM4817
12DA00000543Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT
13DA00000573Makita DA00000573 CABLE FIXING PLATE
14DA00000543Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT
15DA00000977Makita DA00000977 WHEEL DRIVE CONTROL CABLE
16671001151Makita 671001151 MOTOR BRAKE CONTROL CABLE
17671470002Makita 671470002 CASE RIGHTPLM5102
18671011123Makita 671011123 SPRING OF SPEEDPLM5102
19DA00000972
20DA00000543Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT
21DA00000869Makita DA00000869 VARIABLE ADJUST HANDLE UPPER
22DA00000870Makita DA00000870 VARIABLE ADJUST HANDLE LOWER
23DA00000873Makita DA00000873 SELF-DRIVING SCREW
24671001514Makita 671001514 CONNECTING BOARDPLM5102
25671001511Makita 671001511 FIXED PLATEPLM5102
26671001191Makita 671001191 SPEED ADJUSTMENT CORD ASSEY
27671006063Makita 671006063 HEXAGON BOLTPLM5102
28DA00000577Makita DA00000577 HEXAGON FLANGE BOLT
29DA00000603Makita DA00000603 SELF-TAPPING SCREW
30671002075Makita 671002075 WASHERPLM
31671470001Makita 671470001 CASE, LEFTPLM5102
32671010630Makita 671010630 SELF TAPPING SCREW
33671001513Makita 671001513 SLEEVEPLM5102
34671006063Makita 671006063 HEXAGON BOLTPLM5102
35DA00000577Makita DA00000577 HEXAGON FLANGE BOLT
36DA00000579Makita DA00000579 CABLE HOOK
37DA00000574Makita DA00000574 FLAT WASHER
38DA00000576Makita DA00000576 SPRING WASHER
39DA00000575Makita DA00000575 LID SHAPE NUT PLM4817
40DA00000563Makita DA00000563 HEXAGON NUT
41DA00000564Makita DA00000564 STAR KNOB
42DA00000924Makita DA00000924 CURVE SHAPE GASKET, PLM4620N2
43DA00000569Makita DA00000569 BOLT 8*58
44671001453Makita 671001453 HANDLE, LOWER PARTPLM
45671177001Makita 671177001 CABLE CLIPPLM
46671177001Makita 671177001 CABLE CLIPPLM
47DA00000563Makita DA00000563 HEXAGON NUT
48DA00000564Makita DA00000564 STAR KNOB
49671007007Makita 671007007 WASHERELM
50DA00000880Makita DA00000880 FLAT HEAD BOLT
51DA00000562Makita DA00000562 HEXAGON FLANGE BOLT
52671001325Makita 671001325 BRACKET HANDLE,PLM5102
53DA00000537Makita DA00000537 HEXAGON FLANGE LOCK NUT
54671001324Makita 671001324 BRACKET HANDLE,PLM5102

Sheet 2: Makita PLM5113 parts diagram

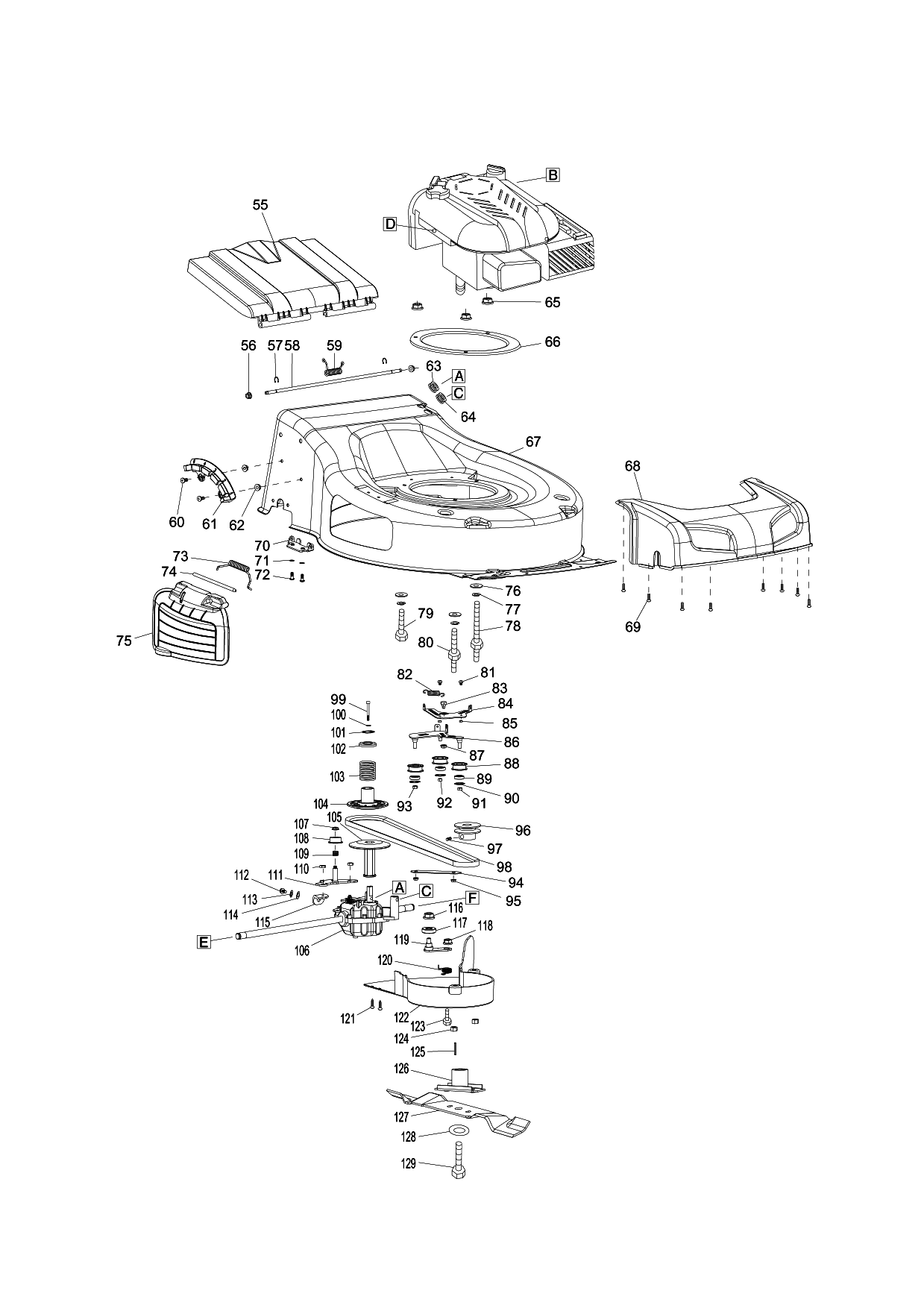

Makita PLM5113 parts diagram, sheet 2
No.Part numberPart name
55671468001Makita 671468001 REAR COVER BOAEDPLM
56DA00000543Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT
57671009017Makita 671009017 OPEN BLOCK RINGPLM
58671001518Makita 671001518 LONG POLEPLM
59671011101Makita 671011101 SPRING OF REARPLM
60671002019Makita 671002019 TRIGGER BOLTPLM
61671010280Makita 671010280 HEIGHT ADJUSTMENTPLM5102
62DA00000543Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT
63671800104Makita 671800104 CORD PROTECTING SHEATH
64671800104Makita 671800104 CORD PROTECTING SHEATH
65DA00000537Makita DA00000537 HEXAGON FLANGE LOCK NUT
66671144701Makita 671144701 RUBBERPLM5102
67671132602Makita 671132602 DECK
68671513001Makita 671513001 GRILLPLM5102
69DA00000911Makita DA00000911 SELF-TAPPING SCREW
70671001571Makita 671001571 PLATEPLM5102
71DA00000198Makita DA00000198 SPRING WASHER
72671201501Makita 671201501 SCREWPLM5102
73671111300Makita 671111300 TORSION SPRING
74671001019Makita 671001019 AXLEPLM5102
75671514001Makita 671514001 COVERPLM5102
76671007007Makita 671007007 WASHERELM
77DA00000832Makita DA00000832 SPRING WASHER
78671003024Makita 671003024 SPECIAL SCREWPLM
79DA00000586Makita DA00000586 HEXAGON FLANGE BOLT
80DA00000617Makita DA00000617 SPECIAL BOLT
81671002019Makita 671002019 TRIGGER BOLTPLM
82671011021Makita 671011021 SPRINGPLM5102
83671003042Makita 671003042 FIXED BOLTPLM
84DA00000971
85DA00000549Makita DA00000549 HEXAGON LOCK NUT
86671001455Makita 671001455 FIXED BOARD OF SPEEDPLM5102
87DA00000537Makita DA00000537 HEXAGON FLANGE LOCK NUT
88671001056Makita 671001056 PULLEYPLM5102
89671004015Makita 671004015 BALL BEARINGPLM5102
90671009021Makita 671009021 RINGPLM5102
91DA00000563Makita DA00000563 HEXAGON NUT
92671005008Makita 671005008 HEXAGONAL LOCKINGPLM
93DA00000563Makita DA00000563 HEXAGON NUT
94671001533Makita 671001533 PRESSING PLATE OFPLM5102
95DA00000537Makita DA00000537 HEXAGON FLANGE LOCK NUT
96671004013Makita 671004013 PULLEY COMPL.PLM5102
97DA00000598Makita DA00000598 SCREW
98DA00000968Makita DA00000968 V-BELT PLM5102
99671006123Makita 671006123 BOLTPLM5102
100DA00000198Makita DA00000198 SPRING WASHER
101671009020Makita 671009020 RINGPLM5102
102671001457Makita 671001457 CLAMP WASHERPLM5102
103671011122Makita 671011122 SPRINGPLM5102
104671010540Makita 671010540 PULLEY, UPPERPLM5102
105671001082Makita 671001082 LOWER DRIVEN AXIS ASSY
106671501031Makita 671501031 GEAR BOXPLM5102
107DA00000543Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT
108671002038Makita 671002038 SHAFT SHEATH
109671011156Makita 671011156 SPRING
110671005011Makita 671005011 HEXAGONAL LOCKINGPLM
111671001717Makita 671001717 FIXED PLATE OF GEAR BOX
112DA00000562Makita DA00000562 HEXAGON FLANGE BOLT
113DA00000832Makita DA00000832 SPRING WASHER
114671007007Makita 671007007 WASHERELM
115DA00000915
116DA00000537Makita DA00000537 HEXAGON FLANGE LOCK NUT
117671004015Makita 671004015 BALL BEARINGPLM5102
118DA00000543Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT
119DA00000974Makita DA00000974 GUIDE WHEEL FIXED PLATE, PLM4612
120671011136Makita 671011136 SPRINGPLM5102
121DA00000873Makita DA00000873 SELF-DRIVING SCREW
122671522001Makita 671522001 BELT COVERPLM5102
123671006066Makita 671006066 SCREWPLM5102
124671005008Makita 671005008 HEXAGONAL LOCKINGPLM
125DA00000535Makita DA00000535 FLAT KEY
126671015252Makita 671015252 BLADE SUPPORTPLM5102
127DA00000973
128DA00000529Makita DA00000529 LID SHAPE WASHER
129671006065Makita 671006065 BLADE TIGHTENING SCREW PLM46 (2012)

Sheet 3: Makita PLM5113 parts diagram

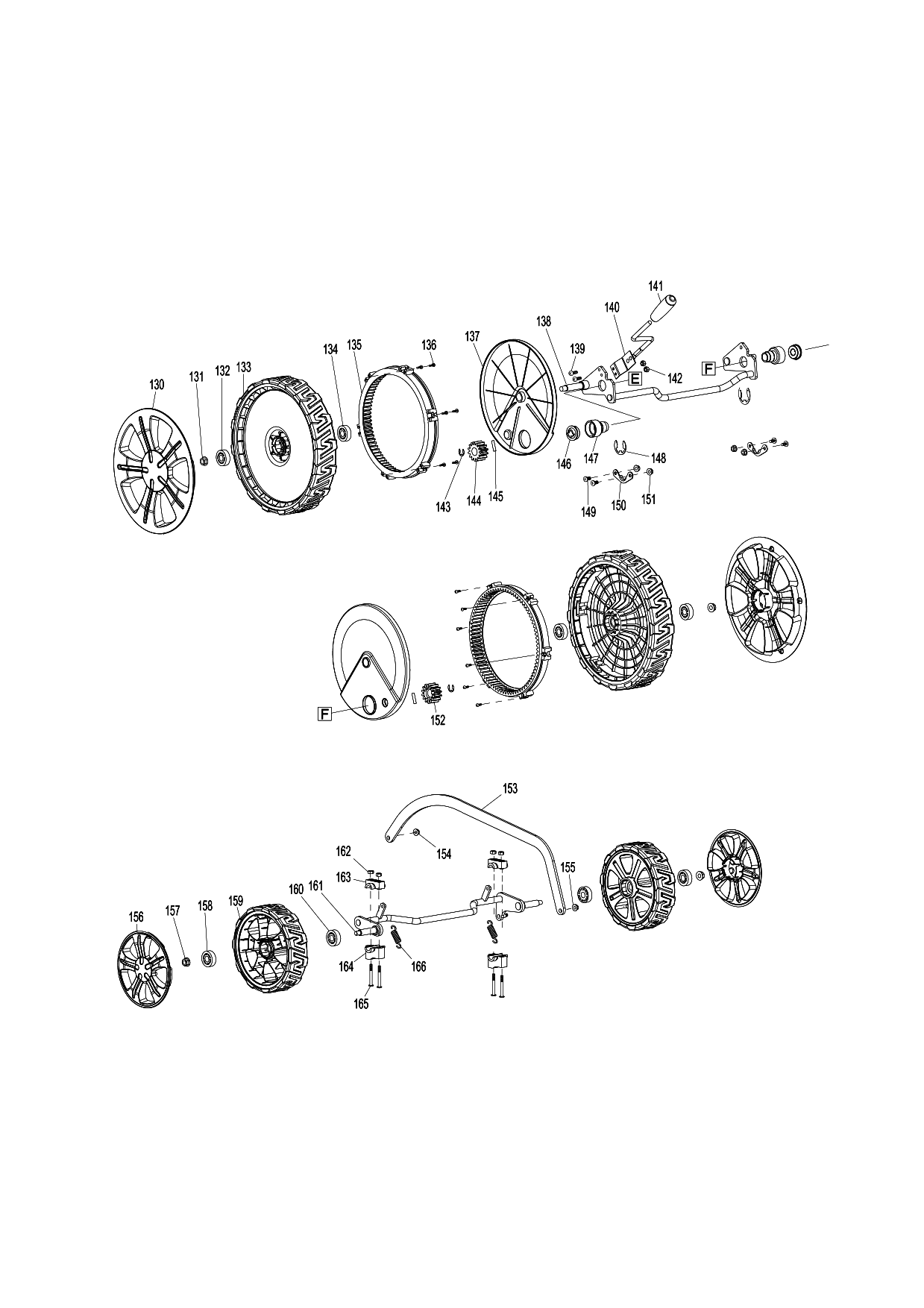

Makita PLM5113 parts diagram, sheet 3
No.Part numberPart name
130671001322Makita 671001322 HUB CAPPLM5102
131DA00000537Makita DA00000537 HEXAGON FLANGE LOCK NUT
132DA00000538Makita DA00000538 BEARING
133671002021Makita 671002021 WHEEL CPL.PLM5102
134DA00000538Makita DA00000538 BEARING
135671200010Makita 671200010 GEAR WHEEL
136DA00000603Makita DA00000603 SELF-TAPPING SCREW
137671251800Makita 671251800 INNER WHEEL COVER
138671001574Makita 671001574 REAR WHEELS AXLEPLM5102
139671002030Makita 671002030 SCREWPLM5102
140671001570Makita 671001570 LEVER HEIGHTPLM5102
141DA00001058
142DA00000549Makita DA00000549 HEXAGON LOCK NUT
143DA00000604Makita DA00000604 OPEN BLOCK RING
144DA00001091Makita DA00001091 RIGHT GEAR
145DA00000597Makita DA00000597 COLUMN PIN
146DA00001029Makita DA00001029 BEARING
147671002024Makita 671002024 BEARING HOUSINGPLM
148DA00000612Makita DA00000612 OPEN BLOCK RING
149671002019Makita 671002019 TRIGGER BOLTPLM
150DA00000542Makita DA00000542 FIXING RING FOR WHEEL AXIS
151DA00000543Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT
152DA00001090Makita DA00001090 LEFT OUTPUT GEAR ASSEMBLY
153671001575Makita 671001575 LINK RODPLM5102
154DA00000549Makita DA00000549 HEXAGON LOCK NUT
155DA00000549Makita DA00000549 HEXAGON LOCK NUT
156DA00000536Makita DA00000536 WHEEL COVER
157DA00000537Makita DA00000537 HEXAGON FLANGE LOCK NUT
158DA00000538Makita DA00000538 BEARING
159671020160Makita 671020160 WHEEL ASSY.PLM
160DA00000538Makita DA00000538 BEARING
161671001573Makita 671001573 FRONT WHEEL AXISPLM5102
162DA00000549Makita DA00000549 HEXAGON LOCK NUT
163671445001Makita 671445001 PRESSING PLATE OFPLM
164671418001Makita 671418001 FIXED BRACKETPLM
165671002028Makita 671002028 TRIGGER BOLTPLM
166671011142Makita 671011142 TENSION SPRINGPLM5102

Sheet 4: Makita PLM5113 parts diagram

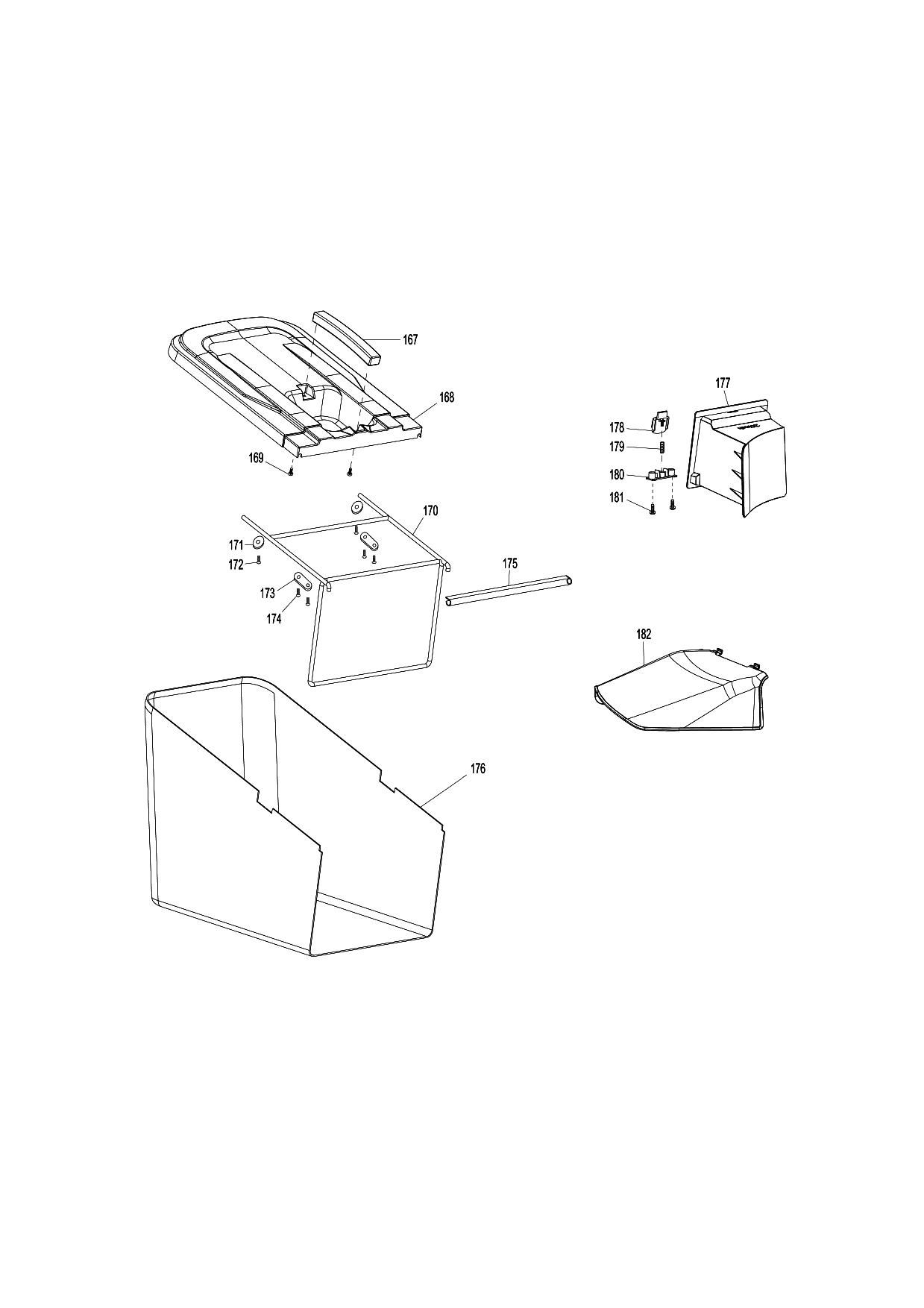

Makita PLM5113 parts diagram, sheet 4
No.Part numberPart name
167671454001Makita 671454001 HANDLE OF GRASSPLM
168671521001Makita 671521001 GRASS-BOX, UPPERPLM5102
169DA00000326Makita DA00000326 SELF DRIVING SCREW 5X16
170671001443Makita 671001443 GRASS CATCHERPLM
171DA00000025Makita DA00000025 WASHER, UR3000/ET-40
172DA00000888Makita DA00000888 SELF-TAPPING SCREW
173671001203Makita 671001203 PRESSING PLATE OFPLM
174DA00000888Makita DA00000888 SELF-TAPPING SCREW
175671001353Makita 671001353 PRESSING BARPLM
176671144401Makita 671144401 GRASS CATCHERPLM5102
177671509001Makita 671509001 MULCH PLUGPLM5102
178671316004Makita 671316004 LOCKING BUTTONPLM
179671011005Makita 671011005 SPRINGPLM
180671317001Makita 671317001 PRESSING PLATEPLM
181DA00000603Makita DA00000603 SELF-TAPPING SCREW
182DA00000969Makita DA00000969 PROTECTION COVER
