Bosch PKS 66

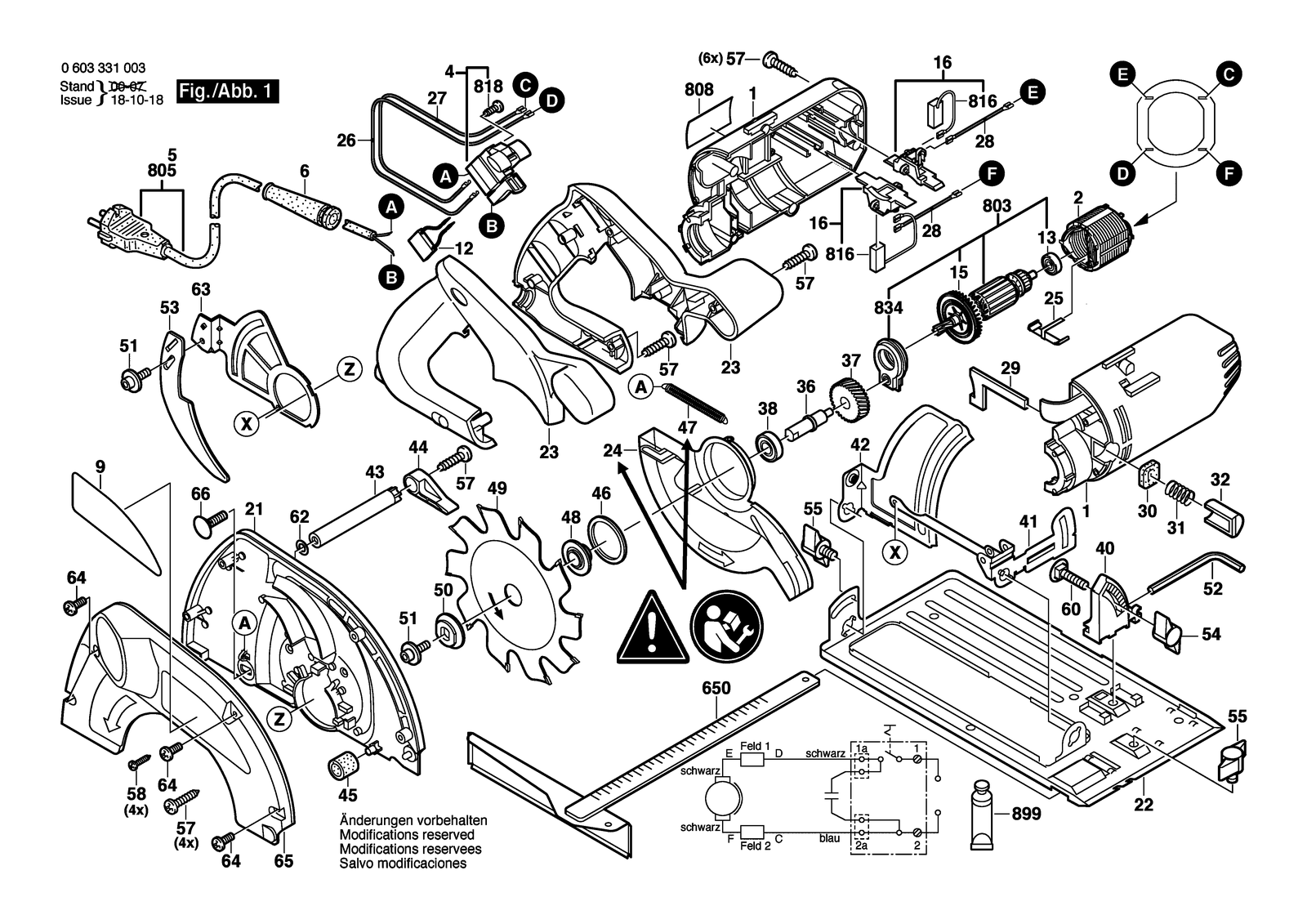

Bosch PKS 66 circular hand saw: exploded parts diagram, 1 sheet, 58 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PKS 66: 58 positions on 1 sheet
Bosch PKS 66 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108218 | Motor Housing Green |
| 12 | 1607328028 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 15 | 1606610145 | Fan |
| 16 | 1604336040 | Brush Plate |
| 2 | 1619P08345 | Field 230V |
| 21 | 1605510300 | Protective Cover |
| 22 | 1608000119 | Base Plate |
| 23 | 1605500217 | Handle |
| 24 | 1605510271 | Pivoting Blade Guard |
| 25 | 1601290010 | Contact Spring |
| 26 | 1604449018 | Connecting piping |
| 27 | 1604449015 | Connecting piping |
| 28 | 1604449013 | Connecting Cable |
| 29 | 1601900005 | Safety Catch |
| 30 | 1601015033 | Felt Seal |
| 31 | 1604610018 | Compression Spring |
| 32 | 1603231019 | Push-Button |
| 36 | 1603124133 | Drive Shaft |
| 37 | 1606320600 | Cylindrical Gear |
| 38 | 1600905031 | Groove ball bearing 12X28X8 |
| 4 | 1607200198 | Switch |
| 40 | 1608190024 | Miter Square |
| 41 | 1601329034 | Bow |
| 42 | 1601329035 | Guide Bracket |
| 43 | 1600360003 | Spacer Tube |
| 44 | 1602002006 | Tensioning Lever |
| 45 | 1600305001 | Rubber Buffer |
| 46 | 1600102025 | Clamp ring |
| 47 | 1604650015 | Extension Spring |
| 48 | 1605703126 | Clamping-Flange |
| 49 | 1608640086 | Circular Saw Blade |
| 5 | 1604460431 | Power supply cord |
| 5 | 2604460140 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 50 | 1605703107 | Conical Spring Washer |
| 51 | 1603414007 | Hex Socket Head Cap Screw M6X14 MM |
| 52 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 53 | 1600025021 | Riving Knife |
| 54 | 1603339006 | Wing Nut M6 |
| 55 | 1603480018 | Wing Screw M6 |
| 57 | 2603490022 | Screw 4X16 |
| 58 | 1613435034 | Lens Head Screw 3X10 St |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 60 | 2910281201 | Round-Head Bolt DIN 603-M6X20 |
| 62 | 2916011894 | Plain Washer |
| 63 | 1600098006 | Carrying Plate |
| 64 | 2610386516 | Torx Oval-Head Screw M4X12 |
| 65 | 1605510301 | Cover |
| 650 | 2608005036 | Parallel-Guide |
| 66 | 1603434009 | Round-Head Bolt M6X2-P1X20 |
| 803 | 1604010772 | Armature With Fan 230V |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 816 | 1607014176 | Carbon-Brush Set |
| 818 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 834 | 1605808070 | Bearing Bracket |
| 899 | 1605430003 | Grease Tube 225 Ml |
| 9 | 1601118B09 | Manufacturer's nameplate |
