Bosch PKS 66 circular hand saw: exploded parts diagram, 1 sheet, 94 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PKS 66: 94 positions on 1 sheet

Bosch PKS 66 parts list (1 sheet)

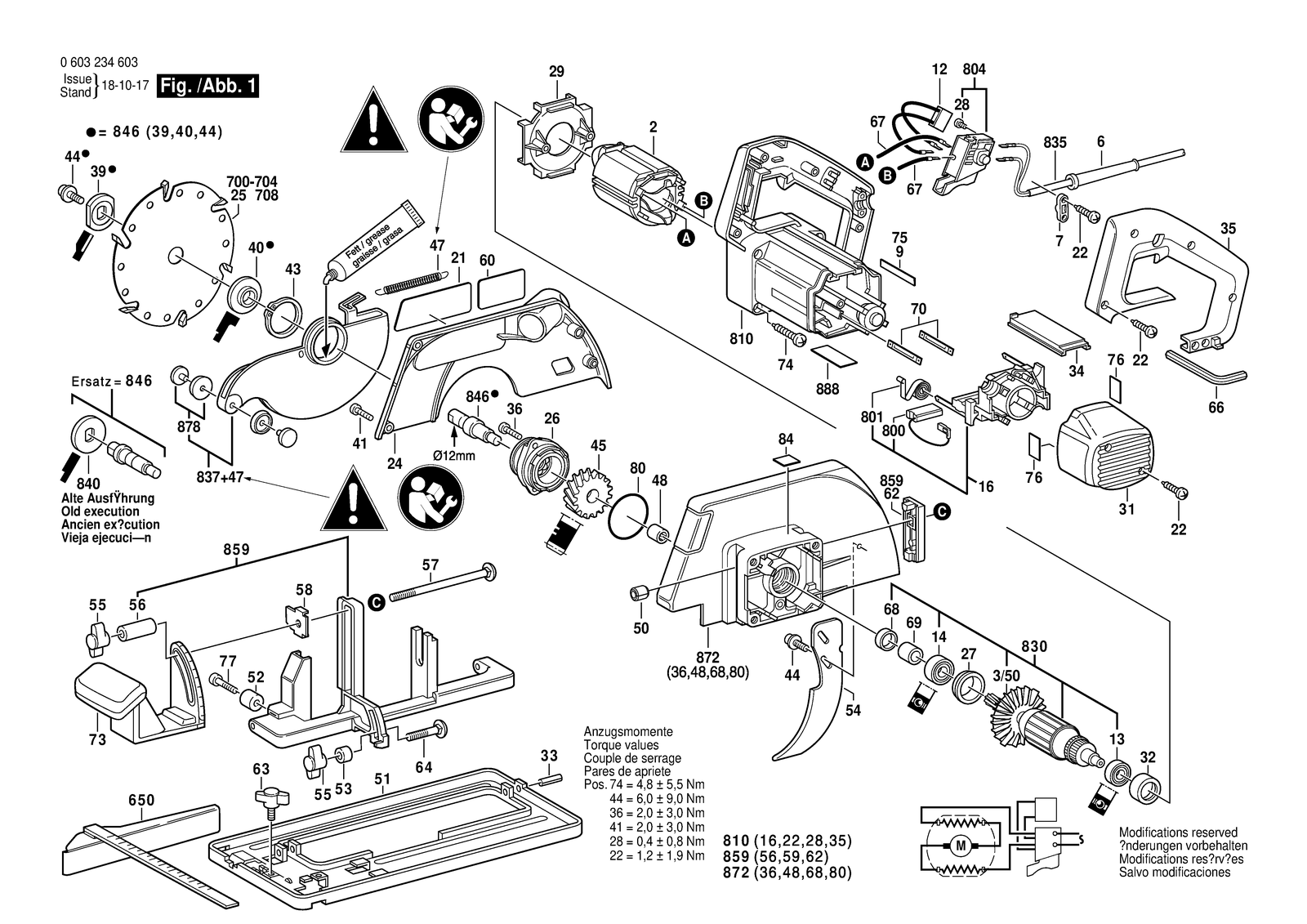

Bosch PKS 66 parts diagram, sheet 1
No.Part numberPart name
121607328028Suppression Filter
132600905032Ball Bearing 7X19X6
141610905009Groove ball bearing 9X26X8
161604336042Brush Holder
21604220242Field 100V
21604220354Field 220-230V
21604220355Field 110-120V
21604220356Field 240V
211601110490Manufacturer's nameplate
222912401019Tapping Screw DIN7981-ST3,9X16-C-Z
241605510157Protective Cover
251608640086Circular Saw Blade
261605808065Bearing Flange
271600221003Intermediate Ring
282603410001Socket head cap screw M3X6,5-4.8
291600591007Air-Deflector Ring
3/501606610122Fan
311605500135Sealing cap Green
311605500136Sealing cap Blue
311605500160Sealing cap Blue
321600502011Intermediate Ring
332917780150Slotted Spring Pin 6X22 DIN7346
341601099013Cover Strip Green
341601099014Cover Strip Blue
341601099021Cover Strip Blue
351605500153Handle Cover Green
351605500155Handle Cover Blue
351605500159Handle Cover Blue
362603435042Thread-forming tap. Screw
391605703107Conical Spring Washer
401605703091Clamping-Flange Ø 12X30 MM
401605703092Clamping-Flange Ø 12X16 MM
412610386516Torx Oval-Head Screw M4X12
432916650020Spring retaining ring DIN 471-40X1,75-FST
441603414007Hex Socket Head Cap Screw M6X14 MM
451606320081Cylindrical Gear Z=41
471604649001Extension Spring
481600910019Nozzle Socket
501600309011Guide Bushing
511608000105Base Plate 170X382 MM
521600305001Rubber Buffer
531600309012Spacer Bushing
541600025013Riving Knife
551603339005Wing Nut M6
561600309013Spacer Bushing Ø33XØ6,2XØ14,7 MM
571603434005Pan head screw M6X170 MM
581601329015Adjusting Plate
61600703024Grommet Ø8,8-Ø9,0X70 MM
61600703025Grommet Ø9,6-Ø10,2X70 MM
601601110058Reference Plate Double Insulation
621608040112Thrust Member
631603480017Wing Screw M6
641603434006Round-Head Bolt M6X35 MM
6502608005036Parallel-Guide
662610364015Hexagon Socket Screw Key 5 MM
671604503014Suppressor Box
681600290016Rotary shaft lip seal
691600300092Intermediate Ring
71611035005Cable Clip
72601035001Cable Clip
701604477005Blade terminal
731608190009Miter Square
741603435022Thread-forming tap. Screw Tt M5X30 MM
751601110128Sticker Double Insulation
761601008004Insulating Plate
772910271120Pan head screw DIN 923-M4X10-5.8
801600210035O-Ring 46,0X1,1 MM
8001607014129Carbon-Brush Set
8012604652008Spiral Spring
8041607000231On-Off Switch
8101607000925Handle Cover Blue
8301604010324Armature With Fan 220V
8301604010325Armature 100V
8301604010326Armature 115V
8301604010327Armature With Fan 240V
8351604460033Power supply cord AUS 2,65M 2 X 1,0MM Pvc
8351604460092Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2
8351604460123Power supply cord GB 240V 4,15M 2 X 1,0MM H05 Vv-F
8351604460134Power supply cord J 4,2M 2 X 1,25MM Gummi
8351604460403Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
8351607000228Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F
8351607000391Power supply cord
8352604460102Power supply cord I 4,15M 2 X 1,0MM H05VV-F
8371605510172Pivoting Blade Guard
841601110618Reference Plate
8401605703090Conical Spring Washer
8401605703093Clamping-Flange
8461607000225Parts Set Ø 12 Mm, M6
8591607000197Parts Set
8721607000222Parts Set
8781607000205Parts Set
888160111A3H3Nameplate
91601110130Manufacturer's nameplate
91601110483Manufacturer's nameplate
