Bosch PKS 66

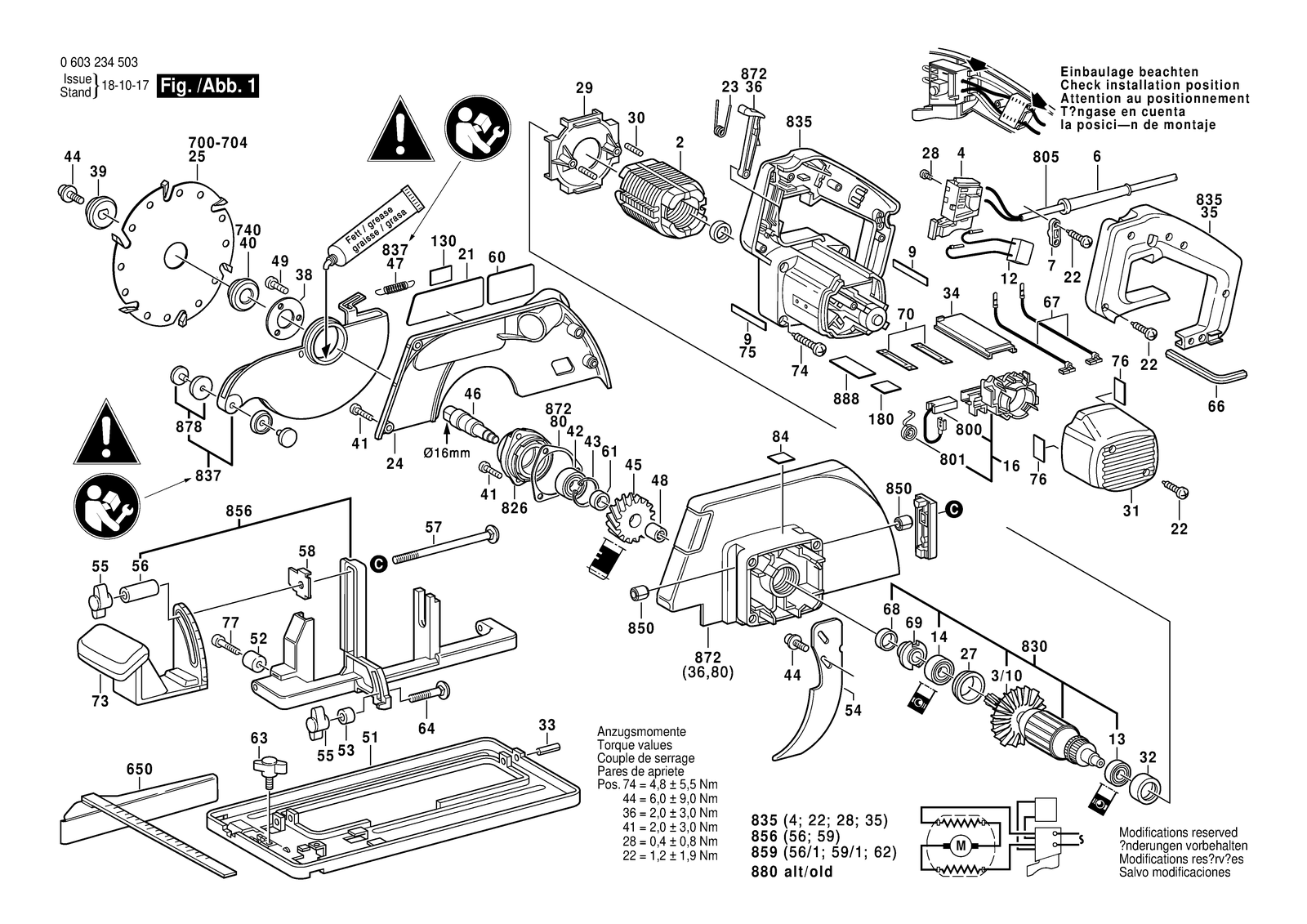

Bosch PKS 66 circular hand saw: exploded parts diagram, 1 sheet, 99 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PKS 66: 99 positions on 1 sheet
Bosch PKS 66 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 12 | 1607328028 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 130 | 1601110265 | Reference Plate |
| 14 | 1610905009 | Groove ball bearing 9X26X8 |
| 16 | 3604336016 | Brush Holder |
| 180 | 3601119137 | Warning Plate Caution |
| 2 | 1604220229 | Field 127V |
| 2 | 1604220242 | Field 100V |
| 2 | 1604220354 | Field 220-230V |
| 2 | 1604220356 | Field 240V |
| 21 | 1601110490 | Manufacturer's nameplate |
| 22 | 2912401019 | Tapping Screw DIN7981-ST3,9X16-C-Z |
| 23 | 1604651008 | Coiled Spring |
| 24 | 1605510157 | Protective Cover |
| 27 | 1600221003 | Intermediate Ring |
| 28 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 29 | 1600591007 | Air-Deflector Ring |
| 3/10 | 1606610122 | Fan |
| 30 | 2603435042 | Thread-forming tap. Screw |
| 31 | 1605500135 | Sealing cap Green |
| 31 | 1605500136 | Sealing cap Blue |
| 31 | 1605500160 | Sealing cap Blue |
| 32 | 1600502011 | Intermediate Ring |
| 33 | 2917780150 | Slotted Spring Pin 6X22 DIN7346 |
| 34 | 1601099013 | Cover Strip Green |
| 34 | 1601099014 | Cover Strip Blue |
| 34 | 1601099021 | Cover Strip Blue |
| 35 | 1605500153 | Handle Cover Green |
| 35 | 1605500155 | Handle Cover Blue |
| 35 | 1605500159 | Handle Cover Blue |
| 36 | 1602099003 | Locking Lever |
| 38 | 1600134005 | Mounting Plate |
| 39 | 1605703079 | Conical Spring Washer SW 36 |
| 4 | 2607200169 | Switch |
| 40 | 1605703080 | Conical Spring Washer Ø 30 MM |
| 41 | 2610386516 | Torx Oval-Head Screw M4X12 |
| 42 | 1900905163 | Groove ball bearing 17X35X10 |
| 43 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 44 | 1603414007 | Hex Socket Head Cap Screw M6X14 MM |
| 45 | 1606320076 | Cylindrical Gear Z=41 |
| 46 | 1603124112 | Drive Shaft M6, Ø16 MM |
| 47 | 1604649001 | Extension Spring |
| 48 | 1600910019 | Nozzle Socket |
| 49 | 2910011115 | Socket head cap screw DIN 84-AM4X5-5.8 |
| 51 | 1608000105 | Base Plate 170X382 MM |
| 52 | 1600305001 | Rubber Buffer |
| 53 | 1600309012 | Spacer Bushing |
| 54 | 1600025013 | Riving Knife |
| 55 | 1603339006 | Wing Nut M6 |
| 56 | 1600309013 | Spacer Bushing Ø33XØ6,2XØ14,7 MM |
| 57 | 1603434005 | Pan head screw M6X170 MM |
| 58 | 1601329015 | Adjusting Plate |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 60 | 1601110058 | Reference Plate Double Insulation |
| 61 | 1600201014 | Spacer Ring |
| 63 | 1603480022 | Wing Screw |
| 64 | 1603434006 | Round-Head Bolt M6X35 MM |
| 650 | 2608005036 | Parallel-Guide |
| 66 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 67 | 1604503014 | Suppressor Box |
| 68 | 1600300092 | Intermediate Ring |
| 69 | 1600290016 | Rotary shaft lip seal |
| 7 | 2601035001 | Cable Clip |
| 70 | 1604477005 | Blade terminal |
| 73 | 1608190009 | Miter Square |
| 74 | 1603435022 | Thread-forming tap. Screw Tt M5X30 MM |
| 75 | 1601110128 | Sticker Double Insulation |
| 76 | 1601008004 | Insulating Plate |
| 77 | 2910271120 | Pan head screw DIN 923-M4X10-5.8 |
| 80 | 3600210124 | O-Ring Red 46,0X1,1 MM |
| 800 | 1607014129 | Carbon-Brush Set |
| 801 | 2604652008 | Spiral Spring |
| 805 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 805 | 1604460092 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 805 | 1604460123 | Power supply cord GB 240V 4,15M 2 X 1,0MM H05 Vv-F |
| 805 | 1604460134 | Power supply cord J 4,2M 2 X 1,25MM Gummi |
| 805 | 1604460403 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 805 | 1607000391 | Power supply cord |
| 805 | 2604460102 | Power supply cord I 4,15M 2 X 1,0MM H05VV-F |
| 826 | 1605808062 | Bearing cover |
| 830 | 1604010324 | Armature With Fan 220V |
| 830 | 1604010325 | Armature 100V |
| 830 | 1604010326 | Armature 115V |
| 830 | 1604010327 | Armature With Fan 240V |
| 835 | 1607000923 | Parts Set Green |
| 835 | 1607000925 | Handle Cover Blue |
| 837 | 1605510172 | Pivoting Blade Guard |
| 84 | 1601110618 | Reference Plate |
| 850 | 1600309011 | Guide Bushing |
| 856 | 1607000197 | Parts Set |
| 859 | 1607000197 | Parts Set |
| 872 | 1607000222 | Parts Set |
| 878 | 1607000205 | Parts Set |
| 880 | 1600135002 | Sealing disk |
| 888 | 160111A3H3 | Nameplate |
| 9 | 1601110130 | Manufacturer's nameplate |
| 9 | 1601110483 | Manufacturer's nameplate |
