Bosch PKS 55 A

Bosch PKS 55 A circular hand saw: exploded parts diagram, 1 sheet, 53 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PKS 55 A: 53 positions on 1 sheet

Bosch PKS 55 A parts list (1 sheet)

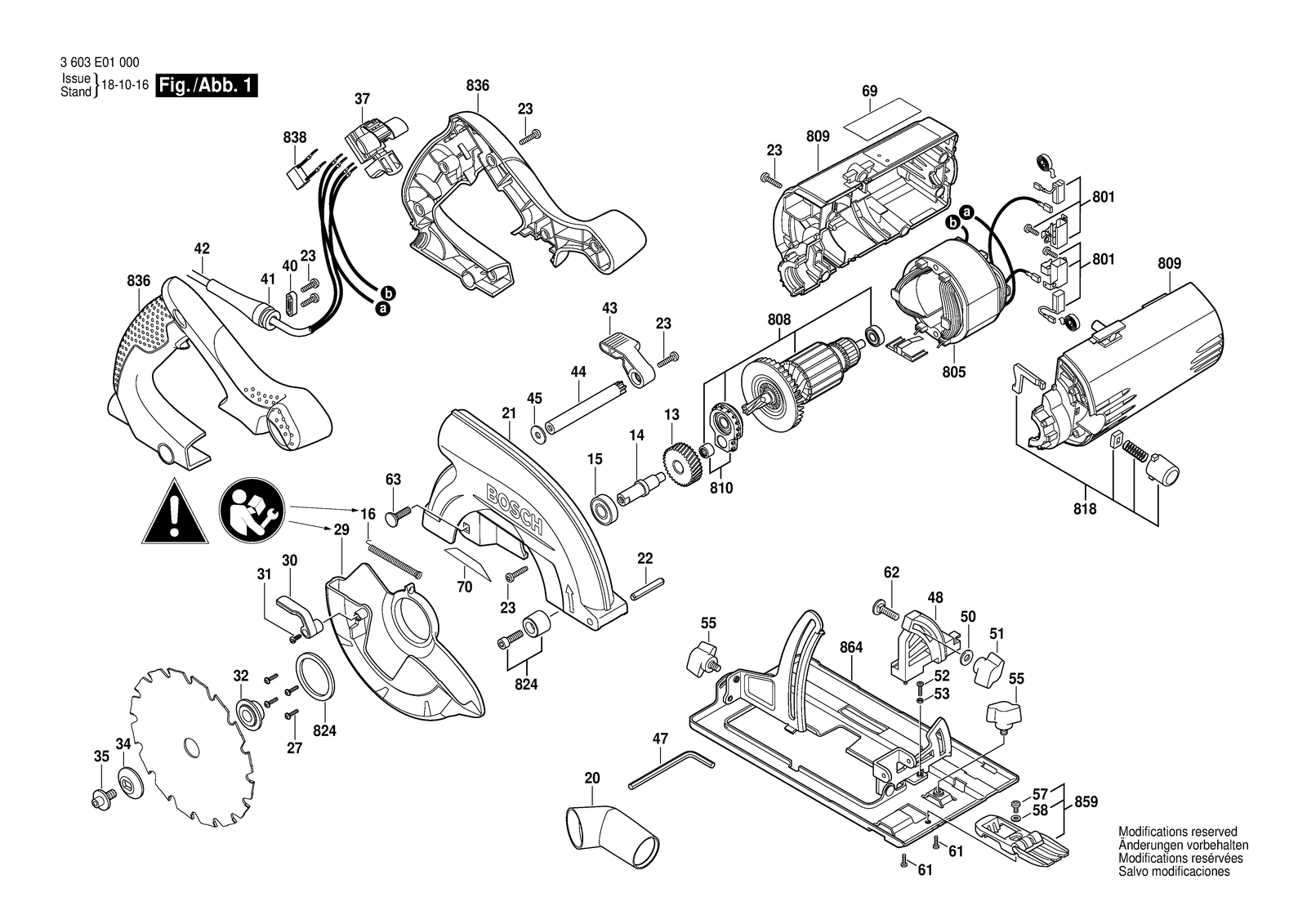

Bosch PKS 55 A parts diagram, sheet 1
No.Part numberPart name
131609203X99Cylindrical Gear
141609203Y00Gear Shaft
151609203Y01Groove ball bearing
161609203Y02Extension Spring
201609203X86Vacuum Adapter
211609203Y03Gear Housing
221609203Y04Spring Pin
231609203Y27Tapping Screw
271609203Y05Screw
291609203Y06Pivoting Blade Guard
301609203Y23Lever
311609203Y76Screw
321609203Y07Clamping Flange
341609203Y08Conical Spring Washer
351609203Y19Screw
371604200234On-Off Switch
401609203Y53Cable Clip
411609203Y54Grommet
421609203Y55Power supply cord
421609203Z01Power supply cord
421619PA4937Power supply cord
431609203Y38Lever
441609203Y39Rod
451609203Y40Plain Washer
472610364015Hexagon Socket Screw Key 5 MM
481609203Y57Angle Support
501609203Y58Plain Washer
511609203Y59Wing Nut
521609203Y78Screw
531609203Y60Hex Nut
551609203Y61Wing Screw
571609203Y79Screw
581609203Y32Plain Washer
611609203Y62Tapping Screw
621609203Y77Bolt
631609203Y44Bolt
691601118R75Nameplate
691601118R76Nameplate
691601118R78Nameplate
691619PB1917Nameplate
701601118R68Manufacturer's nameplate PKS 55A
701619PA8087Manufacturer's nameplate PKS 55-2 A
8011609203Y09Carbon-Brush Set
8051609203Y10Field 230V
8081609203Y11Armature 230V
8091609203Y12Motor Housing
8101609203Y13Bearing Bracket
8181609203Y14Stopping Device
8241609203Y15Stopper
8361609203Y16Set Of Handles
8381609203Y71Suppression Capacitor
8591609203Y73Guide Piece
8641609203Y18Base Plate
