Bosch PKS 46
Bosch PKS 46 circular hand saw: exploded parts diagram, 1 sheet, 71 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

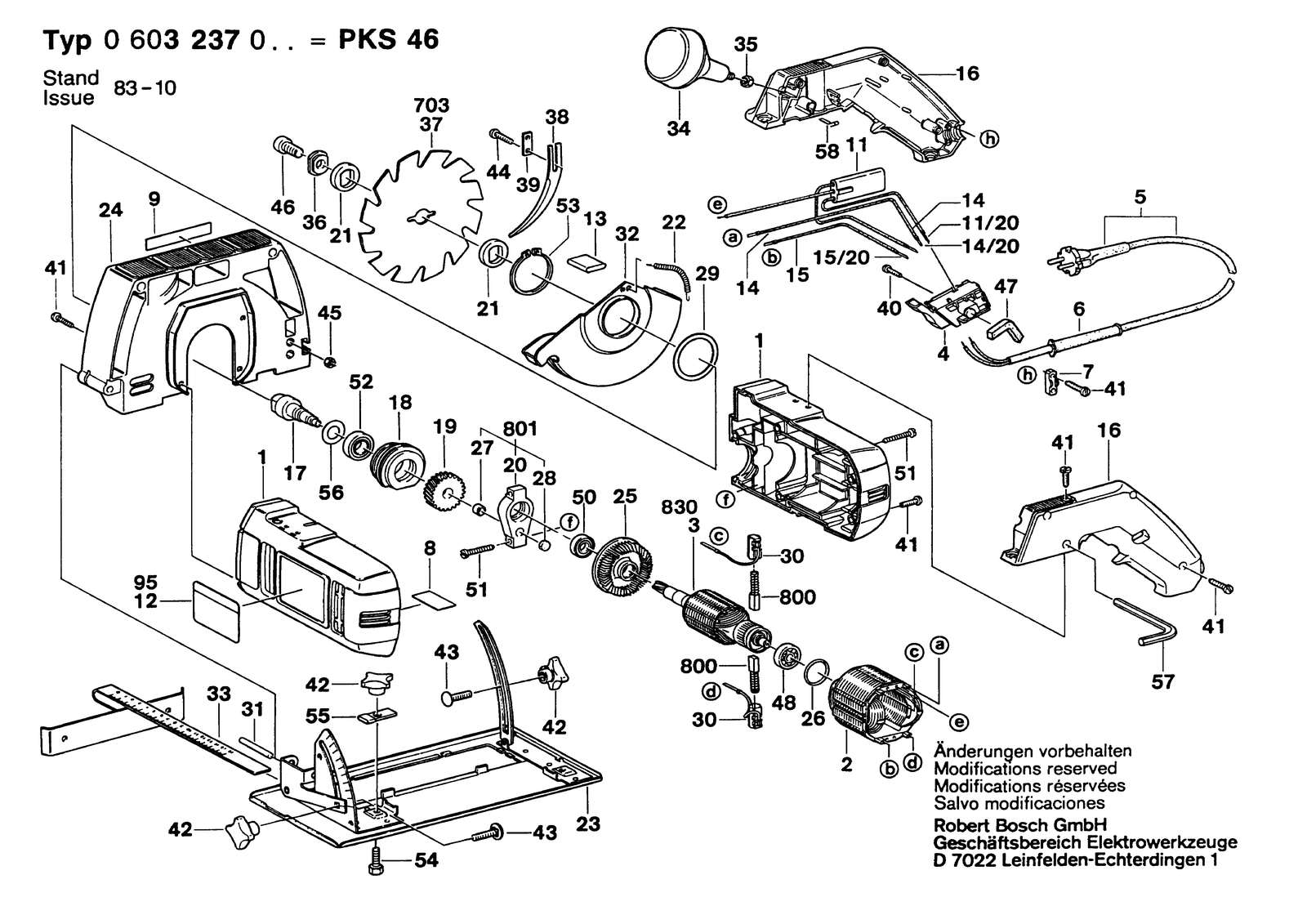

All parts of Bosch PKS 46: 71 positions on 1 sheet
Bosch PKS 46 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108109 | Motor Housing Green |
| 1 | 1605108113 | Motor Housing Blue |
| 11 | 1607328028 | Suppression Filter |
| 12 | 1601110097 | Sticker |
| 13 | 1600707002 | Protective Sheath |
| 14 | 1614431010 | Cable White L=233 MM |
| 15 | 1604448000 | Connecting Cable White L=373 MM |
| 16 | 1605132090 | Handle Green |
| 16 | 1605132095 | Handle Blue |
| 17 | 1603124103 | Drive Shaft M8, Ø16 MM |
| 18 | 1605820222 | Bearing Flange |
| 19 | 1606320075 | Cylindrical Gear Z=25 |
| 2 | 1604220194 | Field 240V |
| 2 | 1604220195 | Field 100V |
| 2 | 1604220196 | Field 110-115V |
| 2 | 2604220438 | Field 220-230V |
| 21 | 1600144000 | Plain Washer Ø16XØ26X5 MM |
| 22 | 1604650010 | Extension Spring |
| 23 | 3608000000 | Base Plate 130X260X2 MM |
| 24 | 1605510121 | Protective Cover |
| 25 | 2606610049 | Fan |
| 26 | 1900210119 | O-Ring 20X2,5 MM |
| 27 | 1900301007 | Sintered-Metal Bushing J6G7X10R6X6DIN1850 |
| 28 | 1600005001 | Lubricating Felt Ø10X3 MM |
| 29 | 1600102677 | Shim washer Thick 0,2 MM |
| 30 | 1607014117 | Carbon Brush |
| 31 | 2917780157 | Slotted Spring Pin 6X36 DIN 7346 |
| 32 | 1605510122 | Pivoting Blade Guard |
| 33 | 2601336000 | End stop |
| 34 | 1603481001 | Handle Black |
| 35 | 2915011009 | Hex Nut DIN 934-M8-8-A |
| 36 | 1600290007 | Intermediate Ring |
| 37 | 2608640122 | Circular Saw Blade Z=12 |
| 38 | 1600025009 | Riving Knife |
| 39 | 1601034035 | Fixing plate |
| 4 | 2607200109 | On-Off Switch |
| 4 | 2607200159 | On-Off Switch |
| 40 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 41 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 42 | 1603339006 | Wing Nut M6 |
| 43 | 2910281196 | Round-Head Bolt M6X15 DIN 603 |
| 44 | 2910011128 | Socket head cap screw DIN 84-AM4X18-5.8 |
| 45 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 46 | 2910141238 | Hex Socket Head Cap Screw DIN 912-M8X16-8.8 |
| 47 | 1600206023 | Seal Ring |
| 48 | 1900905018 | Ball Bearing 7X22X7 |
| 5 | 1604460024 | Power supply cord |
| 5 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460403 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000391 | Power supply cord |
| 50 | 2600905021 | Groove ball bearing 9X24X7 |
| 51 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 52 | 1900905121 | Groove ball bearing 12X28X8 |
| 53 | 2916650037 | Spring retaining ring 36X1,75 DIN 471 |
| 54 | 2911061197 | Hex Screw DIN 933-M 6X16-8.8 |
| 55 | 2601331005 | Connecting terminal |
| 56 | 2916130004 | Sealing disk 12X25,5X1,8 |
| 57 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 58 | 1601253007 | Leaf Spring |
| 6 | 1600703016 | Grommet Ø6,4-Ø7,5X75 MM |
| 6 | 2600703006 | Grommet Ø9,5 MM |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 7 | 2601035001 | Cable Clip |
| 703 | 1608640018 | Circular Saw Blade Ø16X150X1,2 Mm, Z=12 |
| 800 | 1607014117 | Carbon Brush |
| 801 | 1605807012 | Bearing Bracket |
| 830 | 1604010226 | Armature 220V |
| 830 | 1604010227 | Armature 240V |
| 9 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 95 | 1601110265 | Reference Plate |
