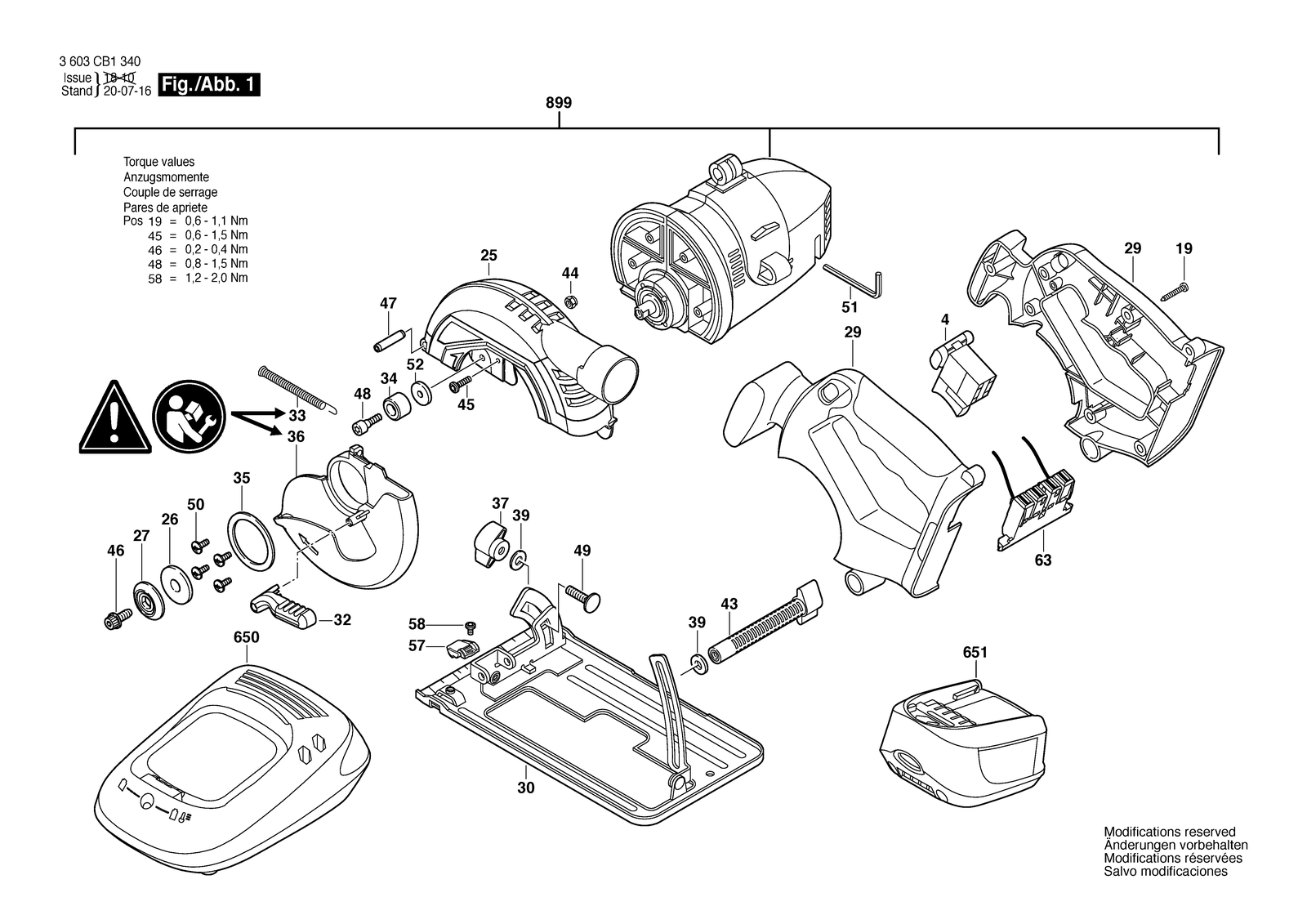

Bosch PKS 18 LI cordless circular saw: exploded parts diagram, 1 sheet, 62 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PKS 18 LI: 62 positions on 1 sheet
Bosch PKS 18 LI parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 19 | 1619P00219 | Tapping Screw |
| 19 | 1619P00219 | Tapping Screw |
| 25 | 1619X07154 | Upper guard |
| 25 | 1619X07154 | Upper guard |
| 26 | 1619X07155 | Washer |
| 26 | 1619X07155 | Washer |
| 27 | 1619X00660 | Washer |
| 27 | 1619X00660 | Washer |
| 29 | 1619X07157 | Set Of Handles |
| 29 | 1619X07157 | Set Of Handles |
| 30 | 1619X07158 | Base Plate |
| 30 | 1619X07158 | Base Plate |
| 32 | 1619X07162 | Lever |
| 32 | 1619X07162 | Lever |
| 33 | 1619X04082 | Extension Spring |
| 33 | 1619X04082 | Extension Spring |
| 34 | 1619X01883 | End stop |
| 34 | 1619X01883 | End stop |
| 35 | 2610386556 | Washer |
| 35 | 2610386556 | Washer |
| 36 | 1619X07161 | Lower guard |
| 36 | 1619X07161 | Lower guard |
| 37 | 2610917567 | Knob |
| 37 | 2610917567 | Knob |
| 39 | 1619P01535 | Washer |
| 39 | 1619P01535 | Washer |
| 4 | 2607202160 | Switch |
| 4 | 2607202160 | Switch |
| 43 | 1619X01891 | Adjustment Knob |
| 43 | 1619X01891 | Adjustment Knob |
| 44 | 2610904165 | Self-locking nut |
| 44 | 2610904165 | Self-locking nut |
| 45 | 1619X02855 | Screw |
| 45 | 1619X02855 | Screw |
| 46 | 1619X07196 | Flange Bolt |
| 46 | 1619X07196 | Flange Bolt |
| 47 | 1619X01894 | Roller Pin |
| 47 | 1619X01894 | Roller Pin |
| 48 | 1619X02626 | Shoulder Screw |
| 48 | 1619X02626 | Shoulder Screw |
| 49 | 2610017262 | Round-Head Bolt |
| 49 | 2610017262 | Round-Head Bolt |
| 50 | 2914201503 | Oval-Head Screw A 4X12-10,9-D |
| 50 | 2914201503 | Oval-Head Screw A 4X12-10,9-D |
| 51 | 1619X01897 | Turnbuckle |
| 51 | 1619X01897 | Turnbuckle |
| 52 | 1619X01898 | Washer |
| 52 | 1619X01898 | Washer |
| 57 | 1619X02433 | Window |
| 57 | 1619X02433 | Window |
| 58 | 1619X05012 | Screw |
| 58 | 1619X05012 | Screw |
| 63 | 1619X07217 | Lever |
| 63 | 1619X07217 | Lever |
| 650 | 2607225475 | Charger Aus AL 2215 CV 240/14,4-18V, 1H |
| 650 | 2607225481 | Fast Charger J AL 2215 CV 100/14,4-18V, 1H |
| 650 | 2607225975 | Fast Charger J AL 1830 CV 100/14,4-18V 1H |
| 651 | 1607A350JM | Battery Pack PBA 18V/1,5 Ah W-a |
| 651 | 2607336457 | Battery Pack PBA 18V 1,5AH V-a J |
| 651 | 2607337201 | Battery Pack PBA 2,5AH W-b J |
| 899 | 06033B1340 | Cordless Circular Saw |
| 899 | 06033B1350 | Cordless Circular Saw |
