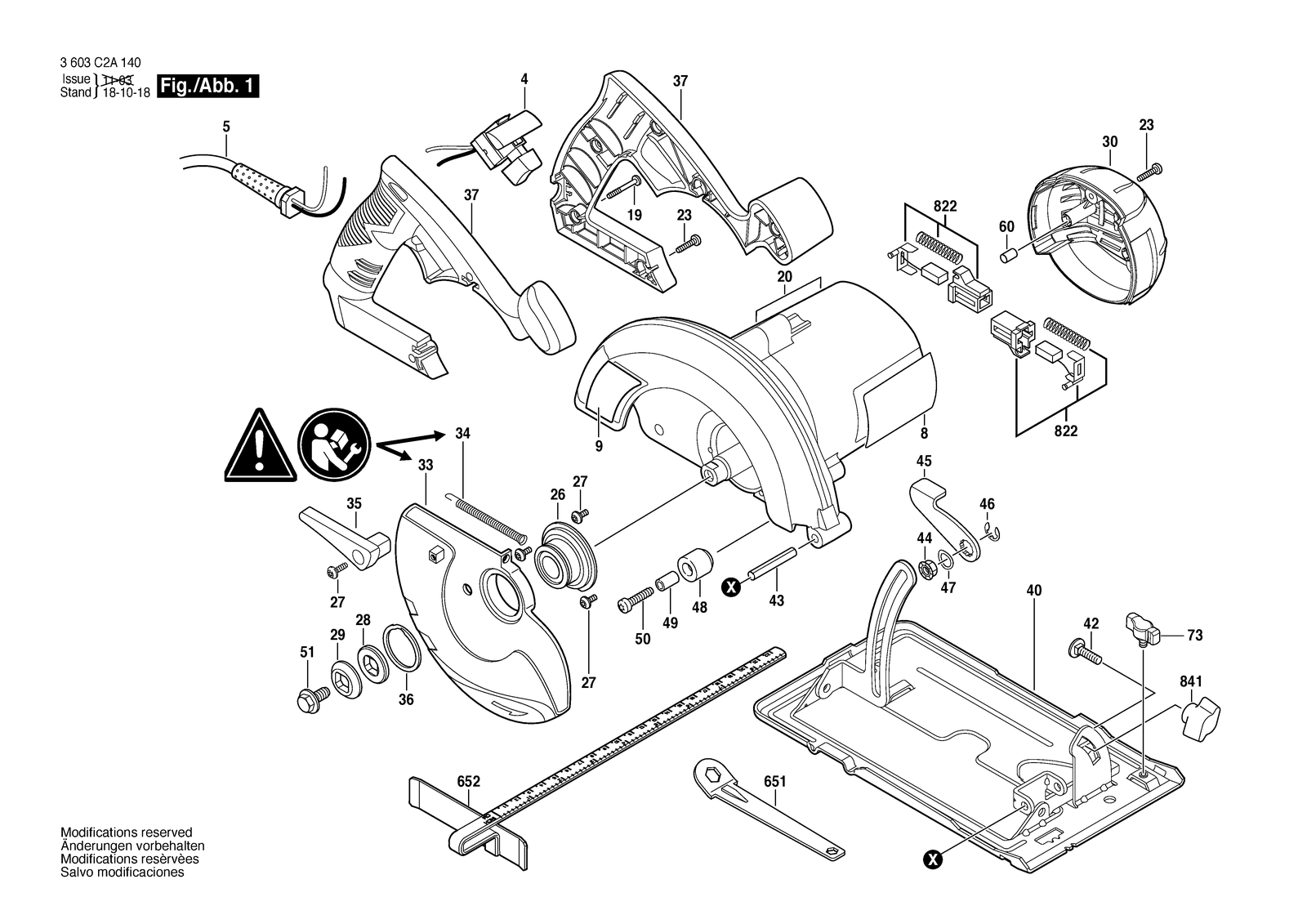

Bosch PKS 1500 circular hand saw: exploded parts diagram, 1 sheet, 33 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PKS 1500: 33 positions on 1 sheet
Bosch PKS 1500 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 19 | 1619X01012 | Screw |
| 20 | 1619X06211 | Warning Label |
| 23 | 1619X01011 | Screw |
| 26 | 1619X00657 | Bearing Plate |
| 27 | 1619X01786 | Contact Screw |
| 28 | 1619X04616 | Washer |
| 29 | 1619X00660 | Washer |
| 30 | 1619X05457 | Housing Cover |
| 33 | 1619X05694 | Pivoting Blade Guard |
| 34 | 1619X04824 | Extension Spring |
| 35 | 1619X04656 | Lever |
| 36 | 1619X00667 | Retaining snap ring |
| 37 | 1619X05695 | Set Of Handles |
| 4 | 1619X05778 | Mains switch |
| 40 | 1619X05698 | Base Plate |
| 42 | 1619X00674 | Bolt |
| 43 | 1619X00676 | Roller Pin |
| 44 | 1619X00677 | Nut |
| 45 | 1619X05827 | Depth-Gauge |
| 46 | 2610923854 | Clip |
| 47 | 1619X01014 | Spring Washer |
| 48 | 1619X04920 | Stopper |
| 49 | 1619X00682 | Spacer |
| 5 | 1619X04612 | Power supply cord |
| 50 | 1619X00683 | Screw |
| 51 | 1619X00935 | Hex Screw |
| 60 | 1619X01409 | Holding Pin |
| 651 | 1619X00685 | Box Wrench |
| 652 | 1619X05789 | Parallel-Guide |
| 73 | 1619X05823 | Wing Screw Black |
| 822 | 1619X04870 | Carbon-Brush Set |
| 841 | 2610917567 | Knob |
| 9 | 1619X05382 | Manufacturer's nameplate PKS 1500 |
