Bosch PKS 14,4 V cordless circular saw: exploded parts diagram, 1 sheet, 42 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PKS 14,4 V: 42 positions on 1 sheet

Bosch PKS 14,4 V parts list (1 sheet)

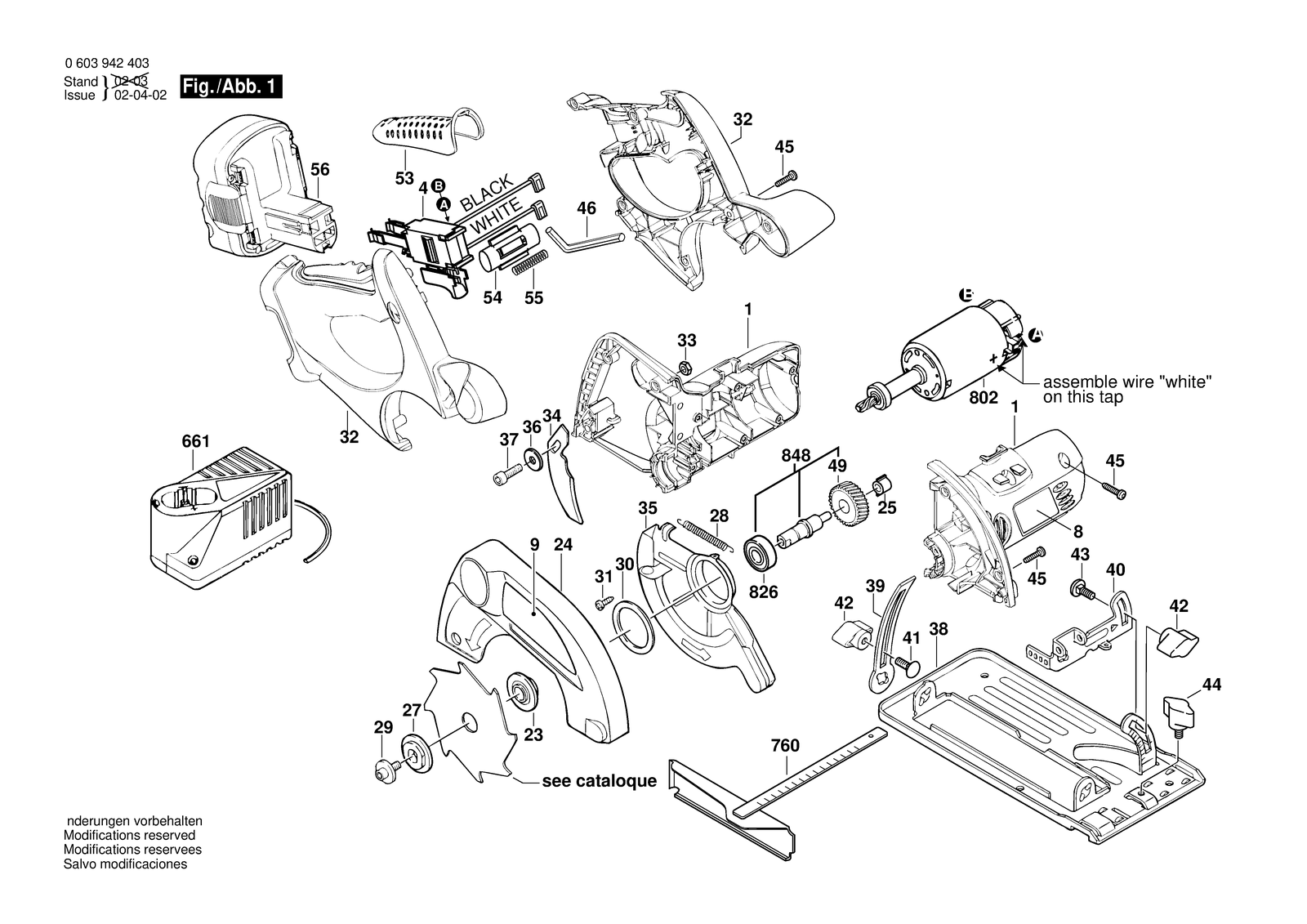

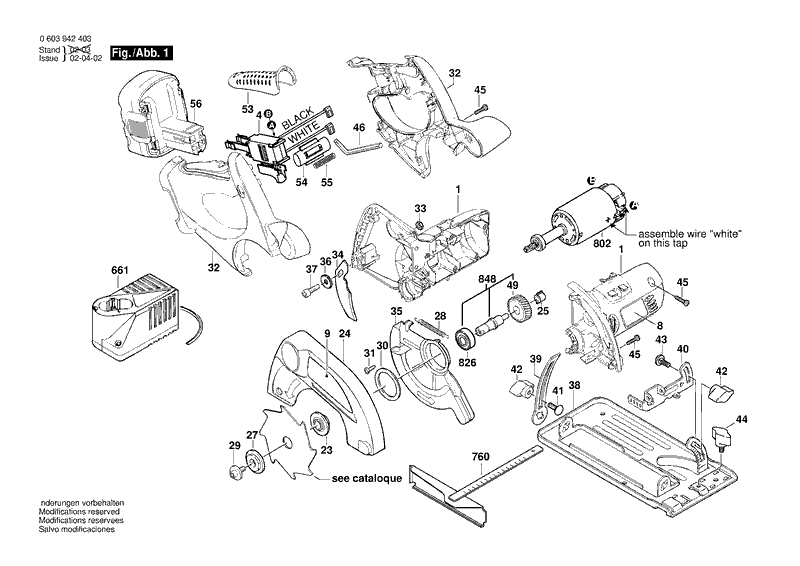

Bosch PKS 14,4 V parts diagram, sheet 1
No.Part numberPart name
12610391221Housing Set
232610386555Washer
242610386621Protective Cover Black
252610386569Bearing
272610391430Washer
282610386609Extension Spring
291603414007Hex Socket Head Cap Screw M6X14 MM
302610386556Washer
312610374913Torx Oval-Head Screw 8X13
322610391222Set Of Handles
332610061550Nut M6
342610391220Riving Knife
352610386551Protective Guard
362610391228Washer
372610386933Screw M6X22 MM
382610386840Base
392610386841Support
42610391868On-Off Switch
402610386842Hinge
412610386847Carrying Bolt M6X20 MM
422610387875Hex Nut
432609003647Carrying Bolt
442610387876Wing Screw
452610374919Torx Oval-Head Screw T20-8X19 MM
462610364015Hexagon Socket Screw Key 5 MM
492610388427Toothed Gear
532610391227Handle Cover
542610391350Slider
552604651017Compression Spring
562607335275Slide-In Accu Package 14,4V, 1,25AH, Nicd
6612607224393Fast Charger GB 230/7,2-14,4V, 1H
6612607224399Fast Charger J 100/7,2-14,4V, 1H
6612607224425Fast Charger EU 230/7,2-24V, 1H
7602608005036Parallel-Guide
81601118E00Nameplate
81601118E99Nameplate
82610391735Nameplate
8022610391217Motor 14,4V
8262610376249Ball Bearing
8482610387048Gear Shaft
91601118E01Manufacturer's nameplate
91601118E97Manufacturer's nameplate
