Bosch PKP 30 LE

Bosch PKP 30 LE glue gun: exploded parts diagram, 1 sheet, 34 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PKP 30 LE: 34 positions on 1 sheet

Bosch PKP 30 LE parts list (1 sheet)

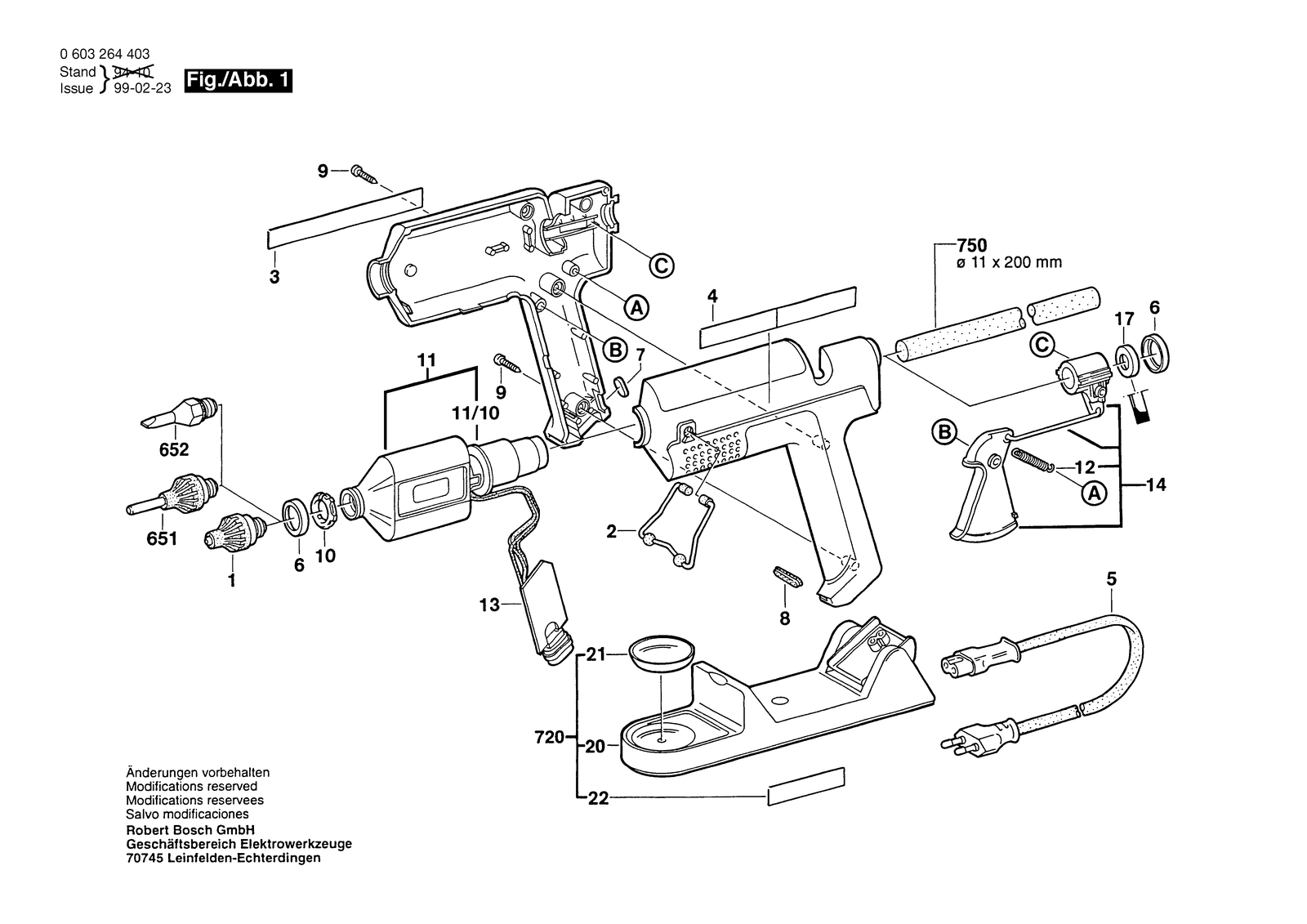

Bosch PKP 30 LE parts diagram, sheet 1
No.Part numberPart name
11609201241Nozzle Body
101609202443Locating ring
111600A000PXHeating Element
111609202435Heating Element 100V
11/101600A000PWGuide Sleeve
121609201417Extension Spring
131609202436Printed-Board Assembly 220-240V
131609202437Printed-Board Assembly 100-110V
141609202404Parts Set
171609201422Retaining snap ring
21609201242Transport Bracket
201609202427Charging Adapter
211609202431Catcher Pan
221601110814Nameplate
31601110812Nameplate
31601110815Nameplate
31601110816Nameplate
41601110813Manufacturer's nameplate
51609202432Power supply cord L=2 M
51609202577Power supply cord L=3,5 M
51609202578Power supply cord L=2 M
51609202579Power supply cord L=3,5 M
51609202580Power supply cord L=3,5 M
61609201243Clamping Sleeve
6511609202428Nozzle Body
6521609202555Nozzle Body
71609202429Signal Disk
7202609200136Battery Charger
7501609201396Thermoplastic Adhesive Ø 11X200 MM
7502607001176Thermoplastic Adhesive Ø 11X200 MM
7502607001177Thermoplastic Adhesive Ø 11X200 MM
7502607001178Thermoplastic Adhesive Ø 11X200 MM
81609202430Rubber Bar
92910211007Tapping Screw DIN 7971-BZ2,9X16
