Bosch PKP 18 E

Bosch PKP 18 E glue gun: exploded parts diagram, 1 sheet, 16 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PKP 18 E: 16 positions on 1 sheet

Bosch PKP 18 E parts list (1 sheet)

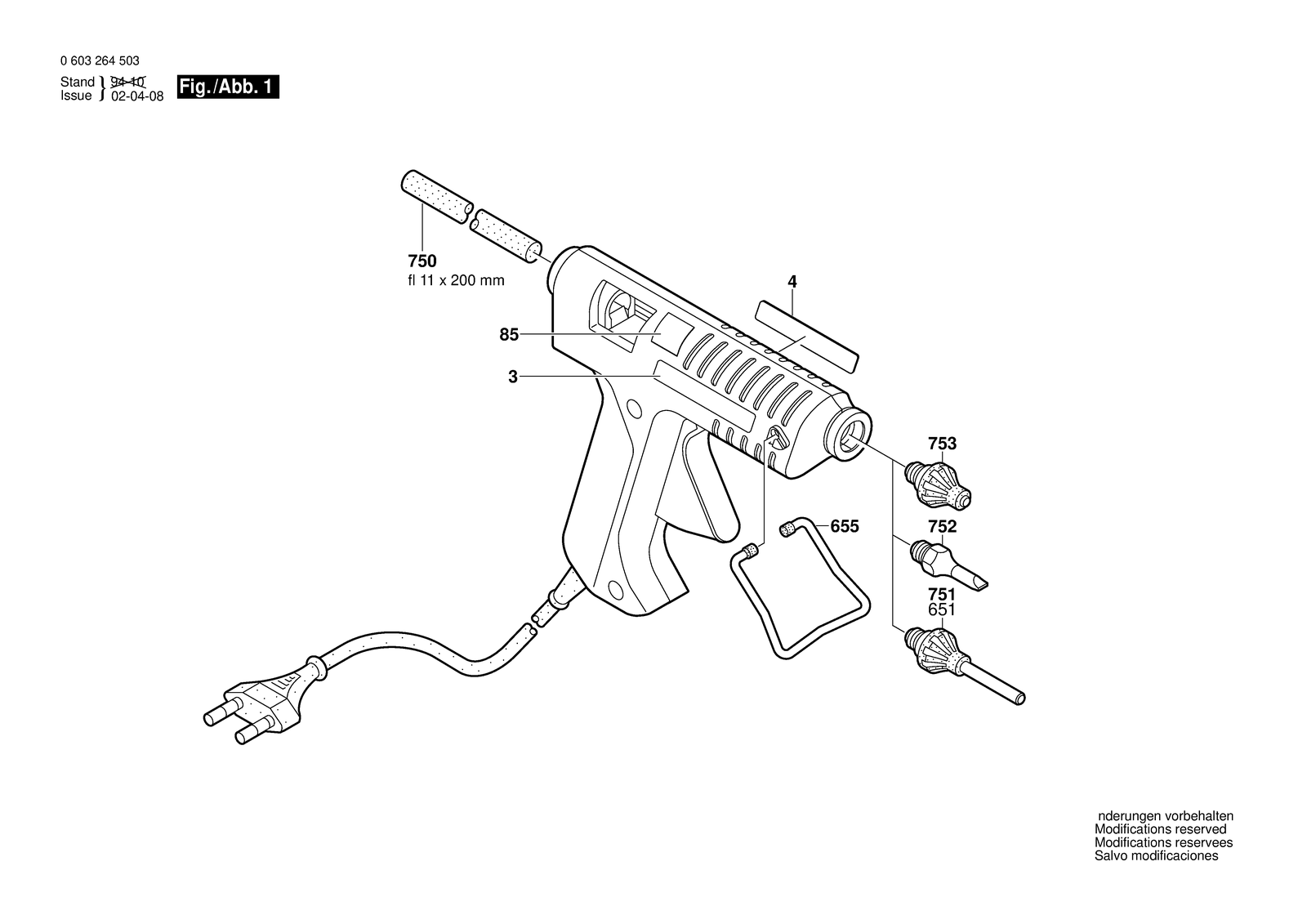

Bosch PKP 18 E parts diagram, sheet 1
No.Part numberPart name
31601118219Nameplate
31601118220Nameplate
31601118221Nameplate
31601118222Nameplate
31601118633Nameplate
3160111A1G0Marking Plate
41601118218Manufacturer's nameplate
6511609202428Nozzle Body
6551609202788Transport Bracket
7501609201396Thermoplastic Adhesive Ø 11X200 MM
7502607001176Thermoplastic Adhesive Ø 11X200 MM
7502607001177Thermoplastic Adhesive Ø 11X200 MM
7502607001178Thermoplastic Adhesive Ø 11X200 MM
7521609202555Nozzle Body
7531609201241Nozzle Body
853601119137Warning Plate Caution
