Bosch PKP 15 E

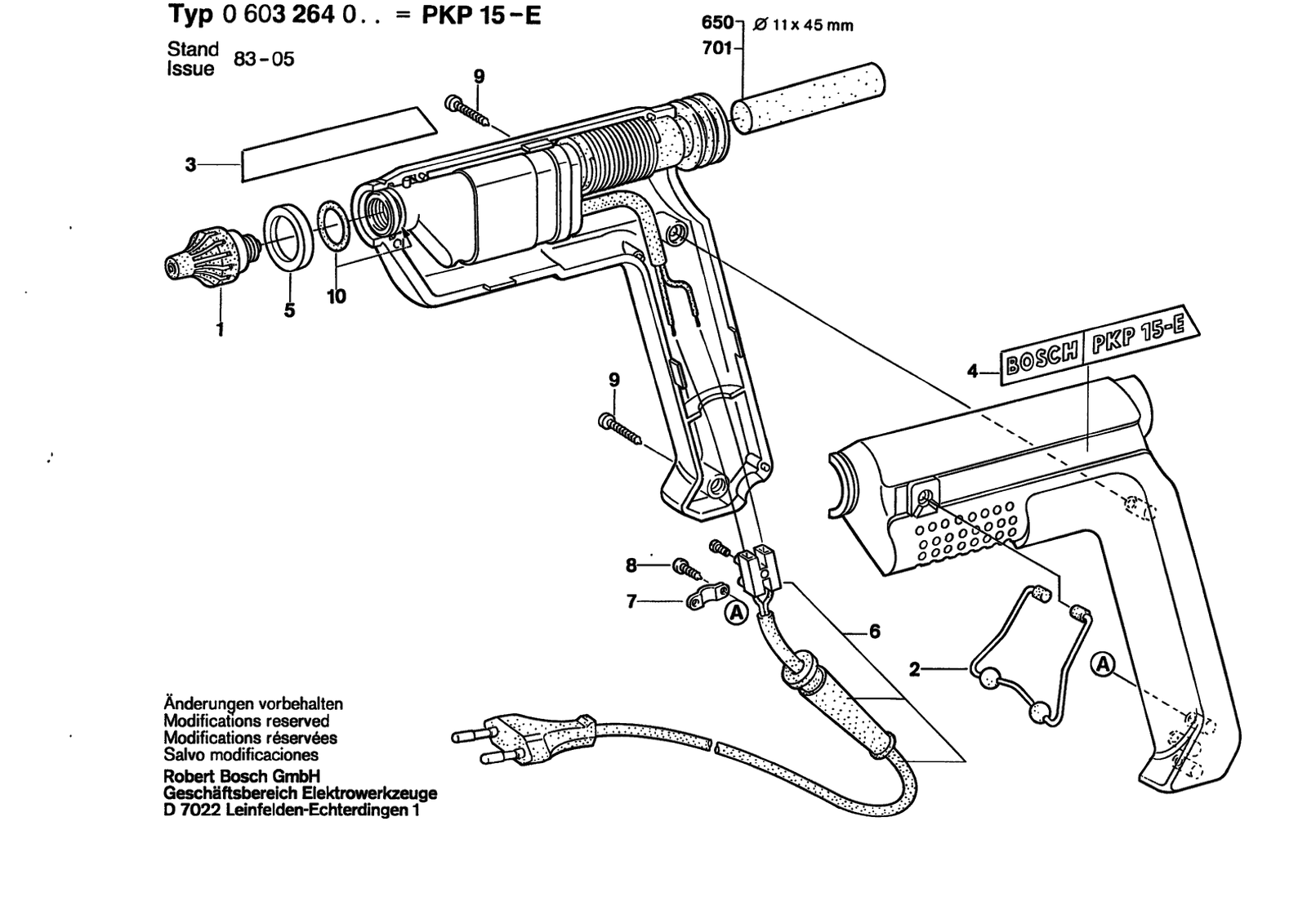

Bosch PKP 15 E glue gun: exploded parts diagram, 1 sheet, 16 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PKP 15 E: 16 positions on 1 sheet
Bosch PKP 15 E parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609201241 | Nozzle Body |
| 10 | 1609201246 | O-Ring |
| 2 | 1609201242 | Transport Bracket |
| 3 | 1601110203 | Nameplate |
| 3 | 1601110204 | Nameplate |
| 3 | 1601110278 | Nameplate |
| 3 | 1601110285 | Nameplate |
| 3 | 1601110303 | Nameplate |
| 4 | 1601110202 | Sticker |
| 5 | 1609201243 | Clamping Sleeve |
| 6 | 1609201244 | Power supply cord |
| 6 | 1609201463 | Power supply cord |
| 7 | 1609201245 | Fastening Clamp |
| 701 | 1609201217 | Thermoplastic Adhesive 125 G, Ø 11X45 MM |
| 8 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 9 | 2910211007 | Tapping Screw DIN 7971-BZ2,9X16 |
