Bosch PHS 46 G

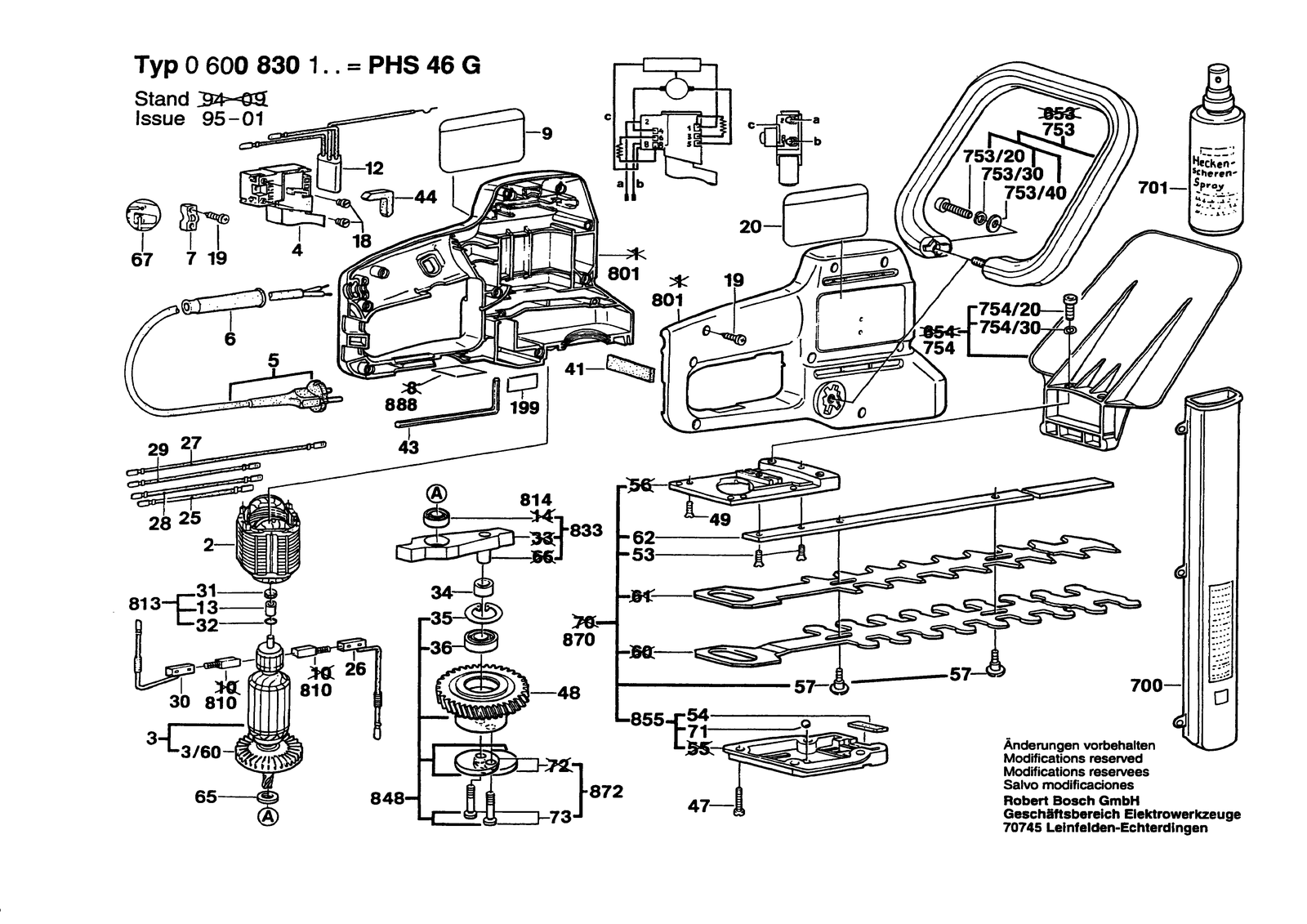

Bosch PHS 46 G hedge trimmer: exploded parts diagram, 1 sheet, 77 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PHS 46 G: 77 positions on 1 sheet
Bosch PHS 46 G parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 12 | 2607329108 | Suppression Filter |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 199 | 1601110265 | Reference Plate |
| 2 | 2604220423 | Field 220-240V |
| 2 | 2604220446 | Field 100V |
| 20 | 2601110865 | Sticker Shadow Side |
| 20 | 2601118259 | Sticker Shadow Side |
| 25 | 2604448000 | Connecting Cable White L=154 MM |
| 25 | 2604448045 | Cable Black L=98 MM |
| 26 | 2604448030 | Connecting Cable White L=81 MM |
| 26 | 2604448070 | Cable |
| 26 | 2604465075 | Suppressor Box |
| 27 | 2604448057 | Cable Blue L=249 MM |
| 28 | 1614431010 | Cable White L=233 MM |
| 28 | 2604448118 | Connecting Cable Blue L=213 MM |
| 29 | 2604448045 | Cable Black L=98 MM |
| 3 | 2604010604 | Armature 220-230V |
| 3 | 2604010605 | Armature 240V |
| 3 | 2604010765 | Armature 100V |
| 3/60 | 2606610027 | Fan |
| 30 | 2604448125 | Connecting Cable |
| 30 | 2604465076 | Suppressor Box |
| 31 | 1600205023 | Felt Washer |
| 32 | 1610210014 | O-Ring 8,0X2,5 MM |
| 34 | 2600200023 | Spacer Ring |
| 35 | 2916660012 | Spring retaining ring 30X1,2MM, DIN 472 |
| 36 | 2600905028 | Groove ball bearing |
| 4 | 2607200147 | On-Off Switch |
| 4 | 2607200159 | On-Off Switch |
| 41 | 2601005008 | Felt Strip |
| 43 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 44 | 2601022000 | Damping Plate |
| 47 | 2603410018 | Socket head cap screw M4X22 MM |
| 48 | 2606320039 | Overload Clutch |
| 49 | 2910871122 | Countersunk-Head Screw DIN 965-M4X12-8.8 |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604420030 | Power supply cord GB 0,40M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460104 | Power supply cord I 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460120 | Power supply cord J 0,40M 2 X 0,75MM Pvc |
| 5 | 2604460133 | Power supply cord |
| 5 | 2604460183 | Power supply cord EU 0,4M 2 X 1,0MM H07 Rn-F |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 53 | 2603421006 | Countersunk-Head Screw |
| 54 | 2601005002 | Felt Strip |
| 57 | 2603413031 | Thread-forming tap. Screw |
| 6 | 2600703007 | Grommet Ø7 MM |
| 6 | 2600703008 | Grommet Ø8,2 MM |
| 62 | 2601038029 | Guide |
| 65 | 2600209003 | Spacer Ring |
| 67 | 2601110685 | Sticker |
| 7 | 2601035001 | Cable Clip |
| 700 | 1605411023 | Dust Bag |
| 701 | 1609200399 | Oil Spray Tin |
| 71 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 73 | 2603123018 | Driving Pin |
| 753 | 2602025059 | Auxiliary Handle Black |
| 753/20 | 2910141201 | Hex Socket Head Cap Screw DIN 912-M6X20-8.8 |
| 753/30 | 2916690005 | Spring Lock Washer M6 |
| 753/40 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 754 | 2607001111 | Protective Shield |
| 754/20 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 754/30 | 2916061007 | Spring Washer DIN 137-A6-FST |
| 801 | 2605104865 | Housing Section Green |
| 810 | 1604321900 | Carbon Brush |
| 810 | 2604321909 | Carbon-Brush Set |
| 810 | 2604321912 | Carbon-Brush Set |
| 813 | 1600301900 | Sintered-Metal Bushing |
| 814 | 2600905039 | Groove ball bearing 9X24X7 |
| 833 | 2605807910 | Bearing Bracket |
| 848 | 2606320900 | Overload Clutch |
| 855 | 2605500904 | Gear Cover |
| 870 | 2607001118 | Set of knives |
| 872 | 2600030900 | Eccentric Disc |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2601110864 | Sticker Sunny Side |
| 9 | 2601118260 | Manufacturer's nameplate Sunny Side |
