Bosch PHO 100

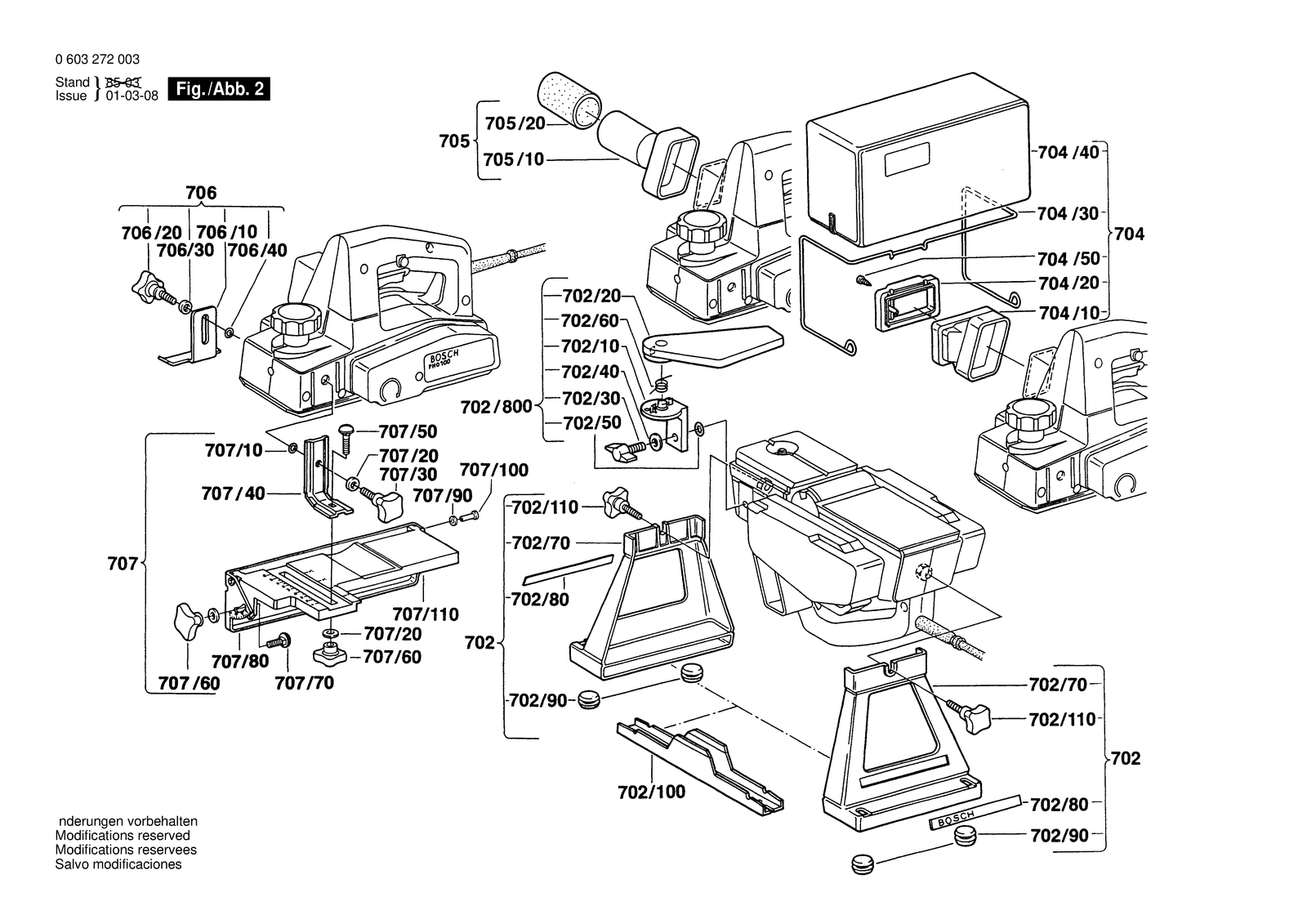

Bosch PHO 100 portable planer: exploded parts diagram, 2 sheets, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PHO 100: 59 positions on 2 sheets
Bosch PHO 100 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104976 | Housing Section Green |
| 12 | 1607328028 | Suppression Filter |
| 13 | 2600910005 | Needle bearing |
| 14 | 2600905052 | Groove ball bearing 8X22X7 |
| 16 | 2604449026 | Brush Holder |
| 16 | 2604465085 | Suppressor Box |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220390 | Field 110-115V |
| 2 | 2604220411 | Field 240V |
| 2 | 2604220421 | Field 110-115V |
| 2 | 2604220423 | Field 220-240V |
| 25 | 2604736001 | Toothed Belt |
| 26 | 1600206025 | Rubber Ring |
| 27 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 28 | 1600190016 | Tab Washer |
| 29 | 2600290004 | Air-Deflector Ring |
| 3 | 2604010647 | Armature 100V |
| 3 | 2604010648 | Armature 220-230V |
| 3 | 2604010649 | Armature 240V |
| 3 | 2604010756 | Armature 110-115V |
| 30 | 2605500163 | Covering hood |
| 33 | 2608000012 | Adjusting Slide |
| 34 | 1608000091 | Base Plate |
| 35 | 1610910057 | Needle bearing Ø8XØ12X10 MM |
| 36 | 2911061209 | Hex Screw DIN 933-M6X40-8.8 |
| 37 | 2602026041 | Handle |
| 39 | 2603342006 | Round Nut Lefthand Threads M6 |
| 4 | 2607200261 | On-Off Switch |
| 40 | 2603342010 | Nut M 8 |
| 41 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 42 | 2606625001 | Toothed Belt Wheel Z= 18 |
| 43 | 2606625002 | Toothed Belt Wheel Z=28 |
| 44 | 2604448062 | Connecting Cable White L = 288 MM |
| 45 | 2600100029 | Plain Washer |
| 46 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 47 | 2604611010 | Compression Spring |
| 5 | 1604460124 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460427 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 5 | 1614460010 | Power supply cord Usa/can/sma 2,15M 2 X 0,82MM SJ 16/2 |
| 5 | 2604460095 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460277 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460290 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 51 | 2602316000 | Blade Holder |
| 52 | 2605510007 | Cutter Plate |
| 56 | 2603414027 | Stud bolt |
| 6 | 2600703006 | Grommet Ø9,5 MM |
| 6 | 2600703007 | Grommet Ø7 MM |
| 6 | 2600703008 | Grommet Ø8,2 MM |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 738 | 2607950004 | Offset Screwdriver DIN 911-4 |
| 810 | 2604321905 | Carbon-Brush Set |
| 810 | 2604321917 | Carbon-Brush Set |
| 835 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 850 | 2608584002 | Planer Head |
| 9 | 2601110643 | Sticker |
| 9 | 2601110872 | Sticker |
