Bosch PHG 600 E

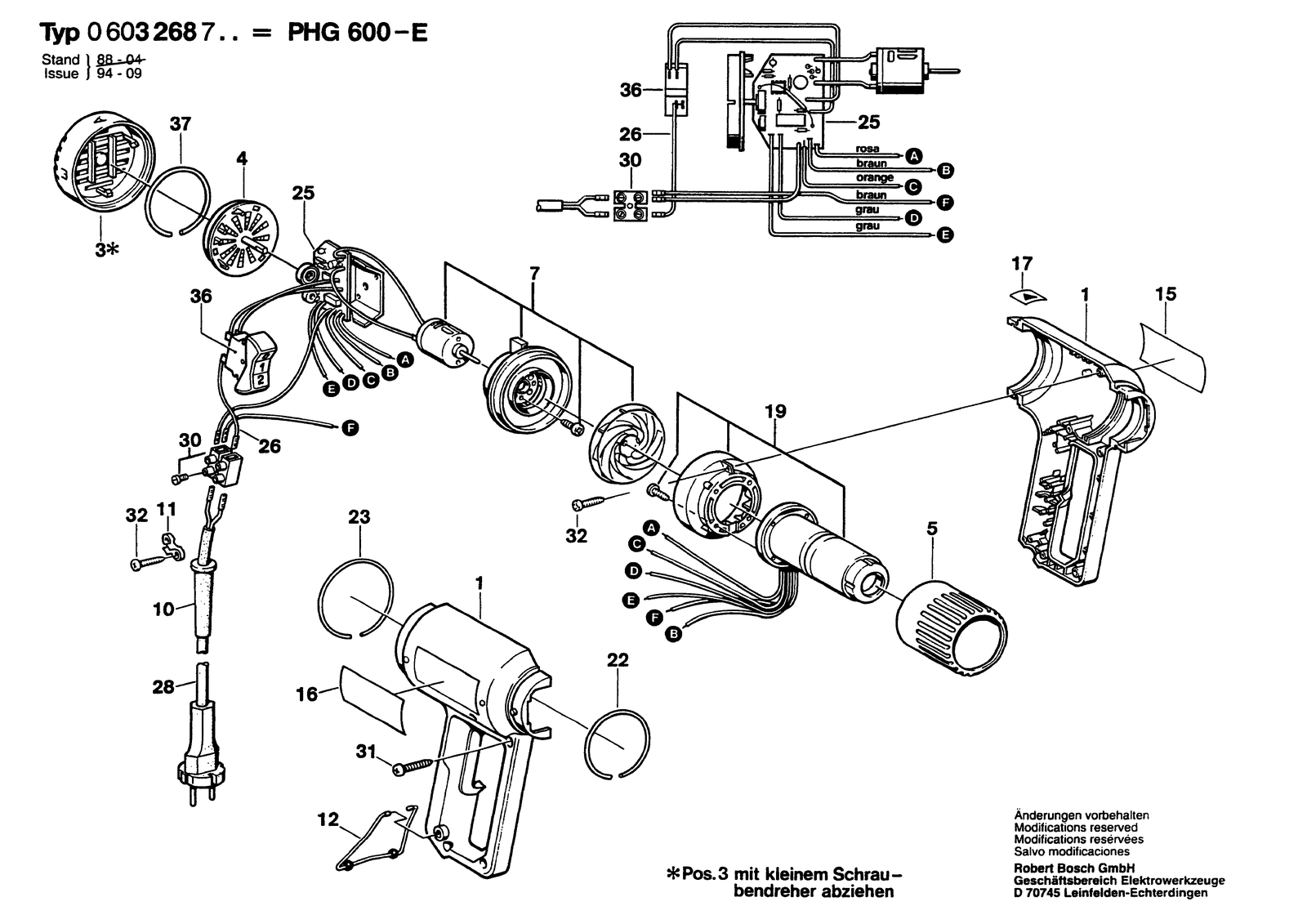

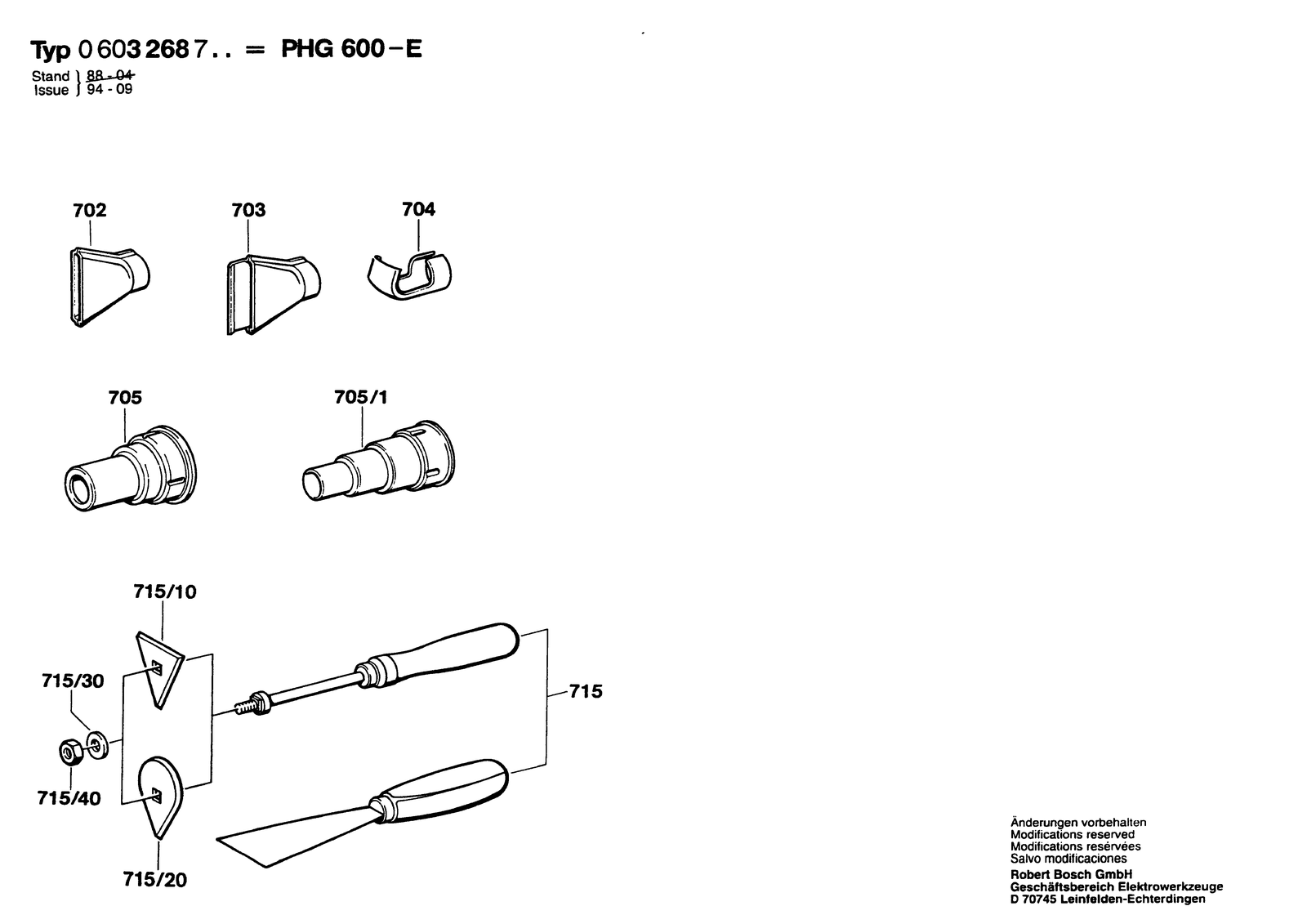

Bosch PHG 600 E hot air gun: exploded parts diagram, 2 sheets, 50 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PHG 600 E: 50 positions on 2 sheets
Bosch PHG 600 E parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609201481 | Motor Housing Green |
| 10 | 1609202793 | Grommet |
| 11 | 1609201487 | Fastening Clamp |
| 12 | 1609202794 | Transport Bracket |
| 15 | 1601110367 | Manufacturer's nameplate |
| 16 | 1601110368 | Nameplate |
| 16 | 1601110370 | Nameplate |
| 16 | 1601110371 | Nameplate |
| 16 | 1601110372 | Nameplate |
| 16 | 1601110373 | Nameplate |
| 16 | 1601110374 | Nameplate |
| 16 | 1601110375 | Nameplate |
| 16 | 1601110376 | Nameplate |
| 17 | 1601110369 | Sticker Red |
| 19 | 1609201573 | Heating Element 220V |
| 19 | 1609201575 | Heating Element 115V |
| 19 | 1609201577 | Heating Element 240V |
| 19 | 1609201579 | Heating Element 100V |
| 22 | 1609201490 | Retaining ring CA.Ø2,3XØ47 MM |
| 23 | 1609201491 | Retaining ring CA.Ø2,5XØ62 MM |
| 25 | 1609201574 | Printed-Board Assembly 220V |
| 25 | 1609201576 | Printed-Board Assembly 115V |
| 25 | 1609201578 | Printed-Board Assembly 240V |
| 25 | 1609201580 | Printed-Board Assembly 100V |
| 26 | 1609201492 | Connecting Cable |
| 28 | 1609201493 | Power supply cord |
| 28 | 1609201494 | Power supply cord |
| 28 | 1609201495 | Power supply cord |
| 28 | 1609201496 | Power supply cord |
| 28 | 1609201497 | Power supply cord |
| 28 | 1609201498 | Power supply cord |
| 3 | 1609201571 | Sealing cap |
| 30 | 1609390042 | Connecting terminal 2-POLE |
| 31 | 2910615507 | Tapping Screw DIN 7983-B2,9X16 |
| 32 | 2910614406 | Tapping Screw DIN 7981-ST 2,9X13-F-H |
| 36 | 1609201500 | On-Off Switch |
| 37 | 1609201723 | Clamping Ring Ø1,5XØ47 MM |
| 4 | 1609201483 | Slotted Disc |
| 5 | 1609201484 | Protective Tube |
| 7 | 1609201572 | DC motor 115-240V |
| 702 | 1609390451 | Flat Suction Nozzle 75 MM |
| 703 | 1609390452 | Nozzle 75 MM |
| 704 | 1609390453 | Nozzle |
| 705 | 1609201647 | Reduction Nozzle Ø22/Ø14 MM |
| 705 | 1609201648 | Reduction Nozzle Ø 22/20 MM |
| 715 | 1609390450 | Parts Set 75 MM |
| 715/10 | 1609201745 | Blade |
| 715/20 | 1609201746 | Blade |
| 715/30 | 2916011015 | Plain Washer 8,4 DIN 433-ST |
| 715/40 | 2915011009 | Hex Nut DIN 934-M8-8-A |
