Bosch PHG 600-3

Bosch PHG 600-3 hot air gun: exploded parts diagram, 1 sheet, 20 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PHG 600-3: 20 positions on 1 sheet

Bosch PHG 600-3 parts list (1 sheet)

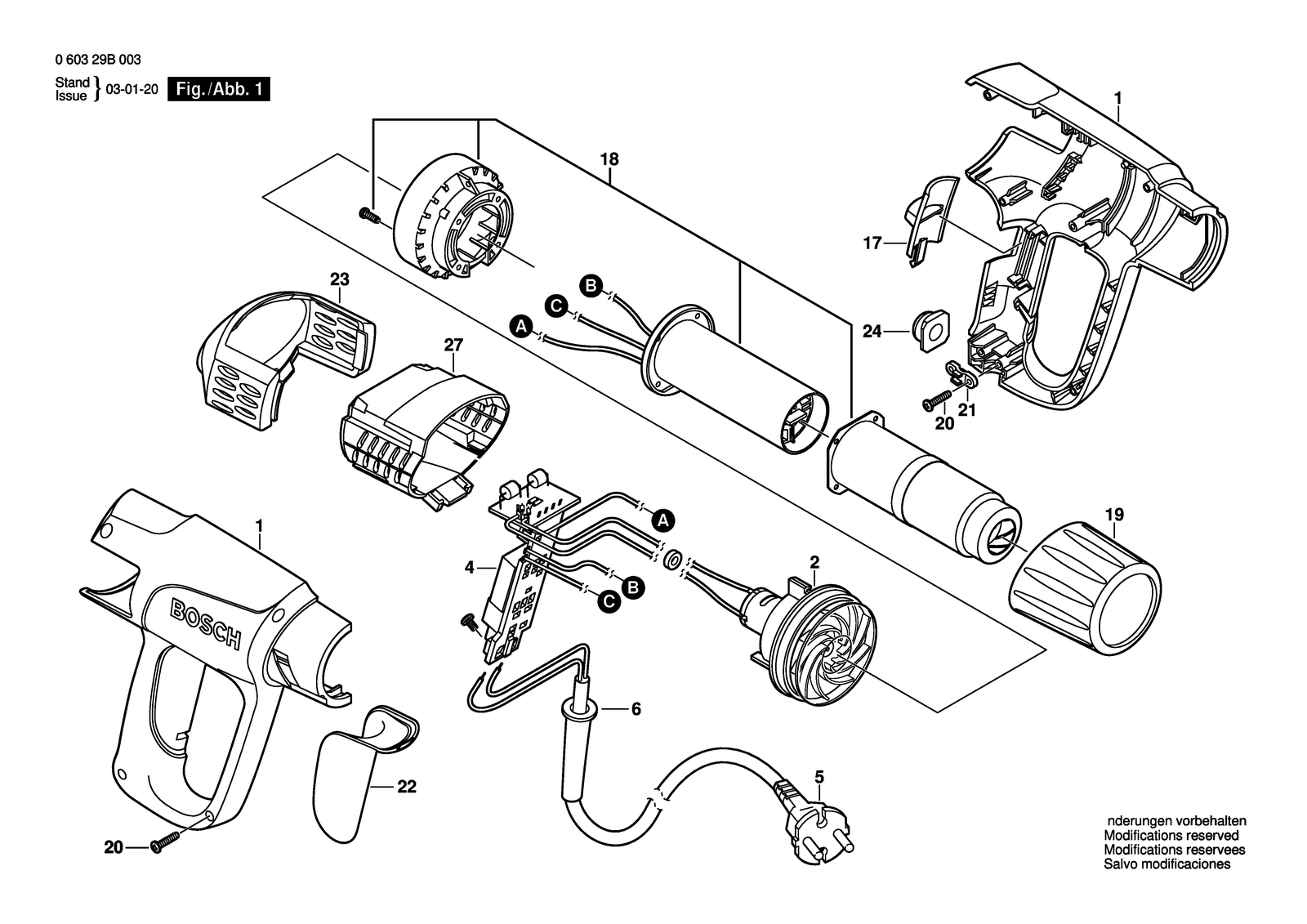

Bosch PHG 600-3 parts diagram, sheet 1
No.Part numberPart name
11609203H58Housing Section
11609203J92Housing Section
11609203J93Housing Section
11609203S80Housing Section
171609203H54Switch Button
181609203H60Heating Element 220-230V
191609203H61Protective Tube
21609202617DC motor 115-240V
202910615407Tapping Screw DIN 7981-ST2,9X16-F-H
211609203102Fastening Clamp
221609203H62Cap-Handle
231609203H63Cover
241609203H65Rubber Base
271609203L50Plug-In Housing
41609203H59Connecting Block 220-230V
51604460104Power supply cord
51609202797Power supply cord
51609203103Power supply cord
51609203964Power supply cord I 2,5M 2 X 1MM H05RR-F
61609202606Grommet
