Bosch PHG 500-2

Bosch PHG 500-2 hot air gun: exploded parts diagram, 1 sheet, 17 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PHG 500-2: 17 positions on 1 sheet

Bosch PHG 500-2 parts list (1 sheet)

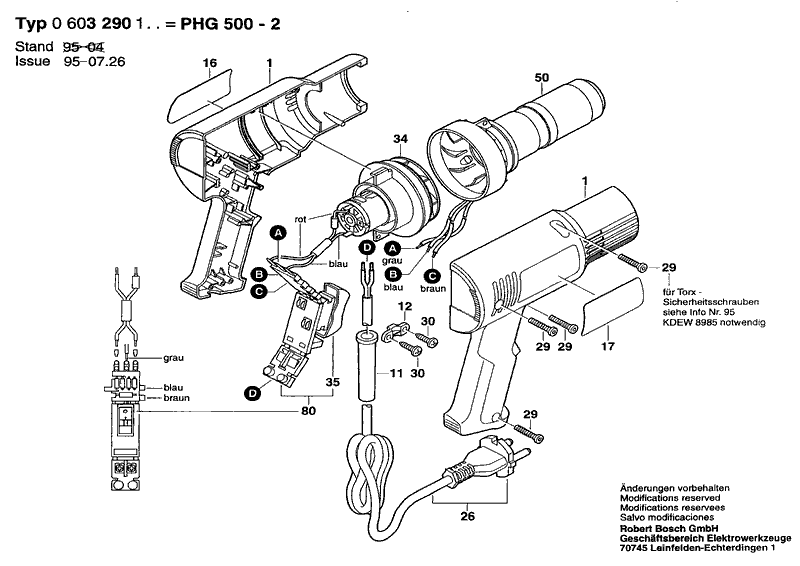

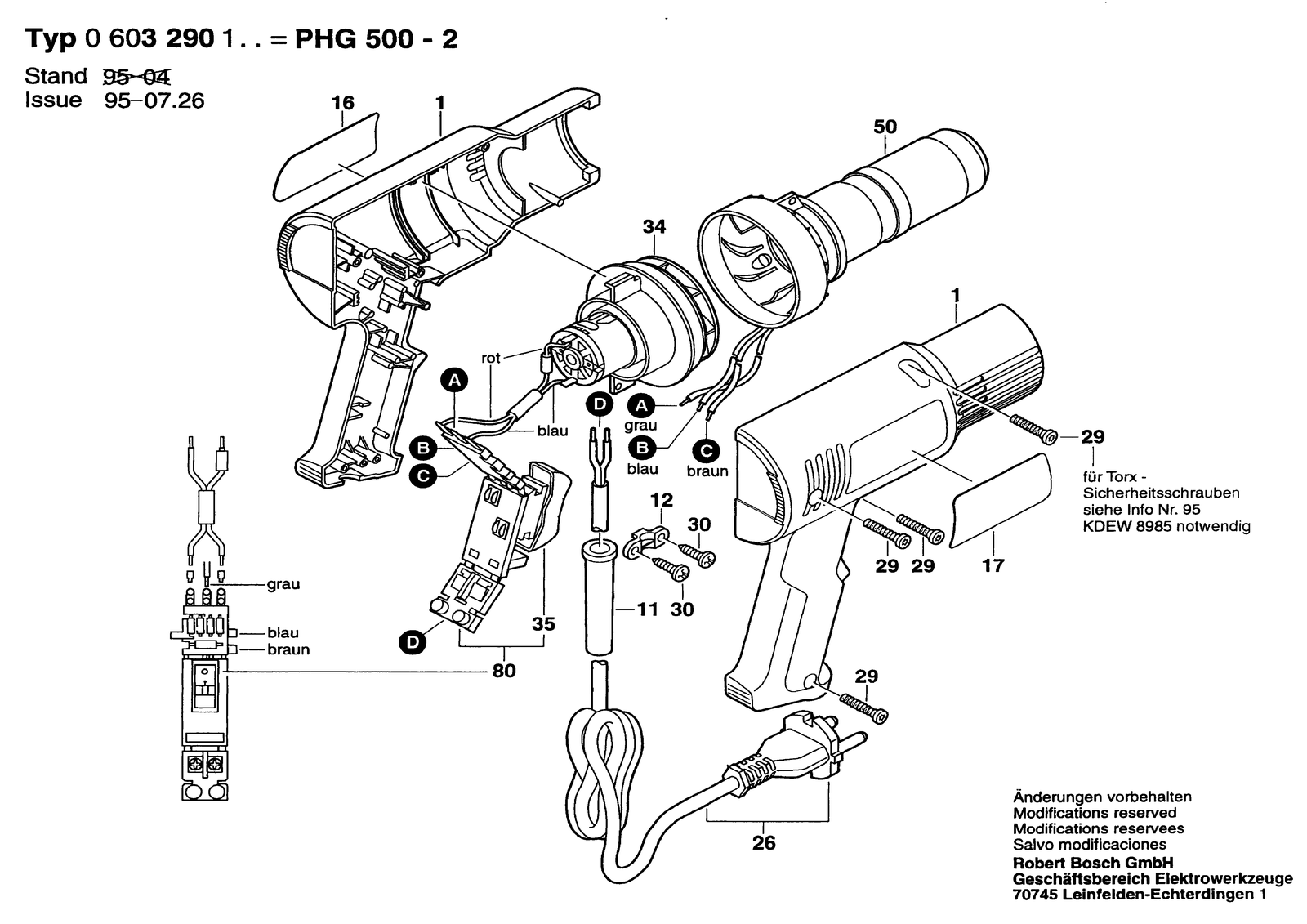

Bosch PHG 500-2 parts diagram, sheet 1
No.Part numberPart name
11609203485Housing Section Green
111609202793Grommet
121609203102Fastening Clamp
161601118523Manufacturer's nameplate
171601118524Nameplate
171601118525Nameplate
171601118581Nameplate
261609202797Power supply cord
261609203103Power supply cord
261609203V15Power supply cord
291609203349Tapping Screw BZ 2,9X16, Sw I-Torx T10
302910614406Tapping Screw DIN 7981-ST 2,9X13-F-H
341609201572DC motor 115-240V
351609202799On-Off Switch
501609203486Cylindrical Heating Elem
501609203575Cylindrical Heating Elem 240V
801609203487Connecting Block 100-240V
