Bosch PHG 2

Bosch PHG 2 hot air gun: exploded parts diagram, 1 sheet, 39 positions. Spare parts with part numbers, availability and prices.

execution 0603360103
other executions06033601040603360108060336013206033601340603360137060336013806033601400603360142
Scroll to zoom · drag to move
All parts on this sheet0
Checking availability…
All parts of Bosch PHG 2: 39 positions on 1 sheet

Bosch PHG 2 parts list (1 sheet)

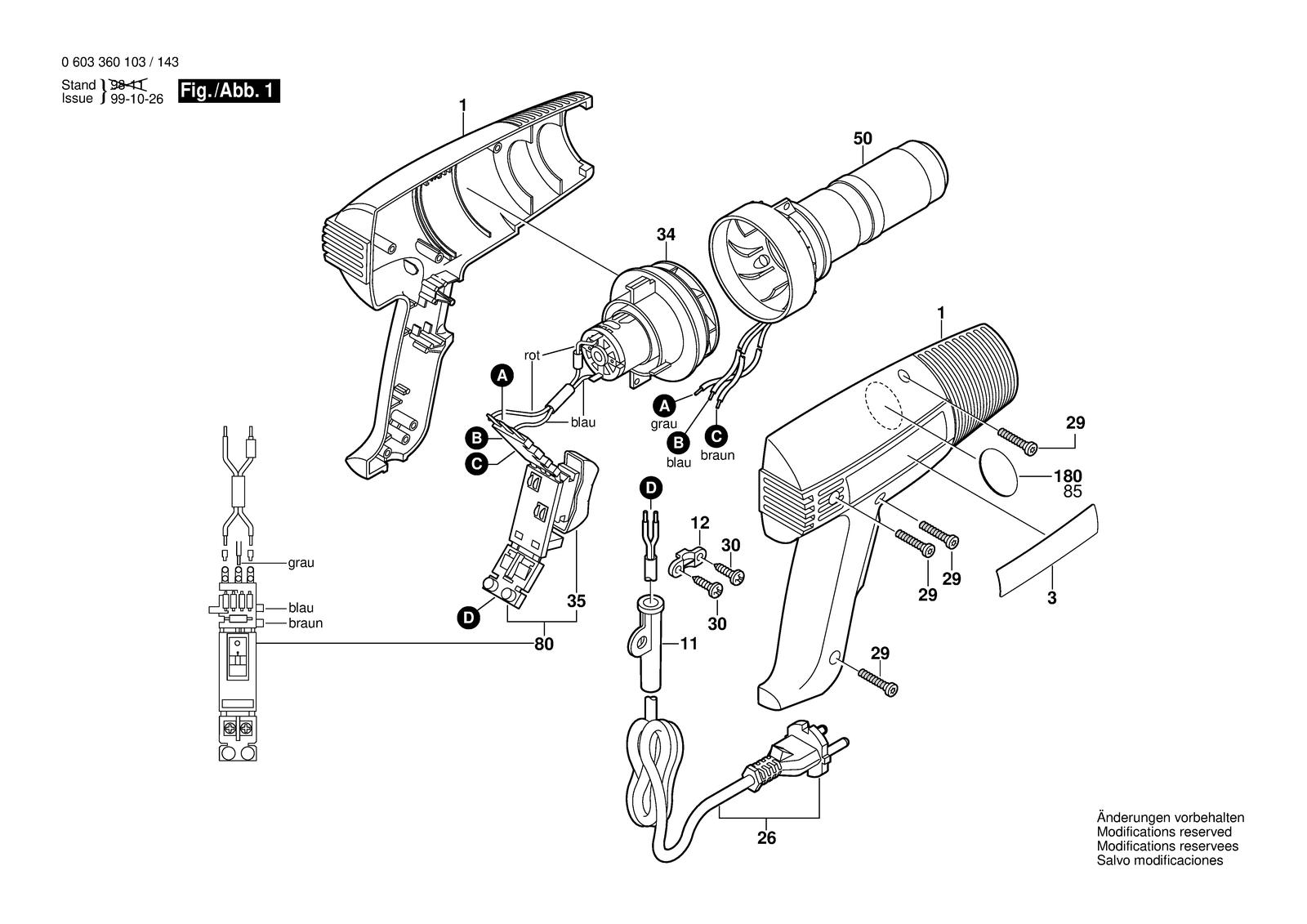

Bosch PHG 2 parts diagram, sheet 1
No.Part numberPart name
11609203991Housing Section Green
11609203993Housing Section Green
11609203996Housing Section Green
11609203A08Housing Section Green
11609203A09Housing Section Green
11609203A10Housing Section Green
11609203B44Housing Section Green
11609203B45Housing Section Green
11609203B56Housing Section
11609203A11Housing Section Green
111609203A01Grommet
111609203A01Grommet
121609203102Fastening Clamp
121609203102Fastening Clamp
261609201498Power supply cord
261609202626Power supply cord
261609202797Power supply cord
261609203103Power supply cord
261609203995Power supply cord
261609203V15Power supply cord
261609203997Power supply cord
291609203349Tapping Screw BZ 2,9X16, Sw I-Torx T10
291609203349Tapping Screw BZ 2,9X16, Sw I-Torx T10
31601118863Manufacturer's nameplate
31601118C01Manufacturer's nameplate
31601118863Manufacturer's nameplate
302910614406Tapping Screw DIN 7981-ST 2,9X13-F-H
302910614406Tapping Screw DIN 7981-ST 2,9X13-F-H
341609201572DC motor 115-240V
341609201572DC motor 115-240V
351609202799On-Off Switch
351609202799On-Off Switch
501609203575Cylindrical Heating Elem 240V
501609203992Cylindrical Heating Elem 230V
501609203994Cylindrical Heating Elem 115V
501609203B55Cylindrical Heating Elem 100V
501609203992Cylindrical Heating Elem 230V
801609203487Connecting Block 100-240V
801609203487Connecting Block 100-240V
