Bosch PFZ 500 E

Bosch PFZ 500 E general purpose saw: exploded parts diagram, 1 sheet, 44 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PFZ 500 E: 44 positions on 1 sheet

Bosch PFZ 500 E parts list (1 sheet)

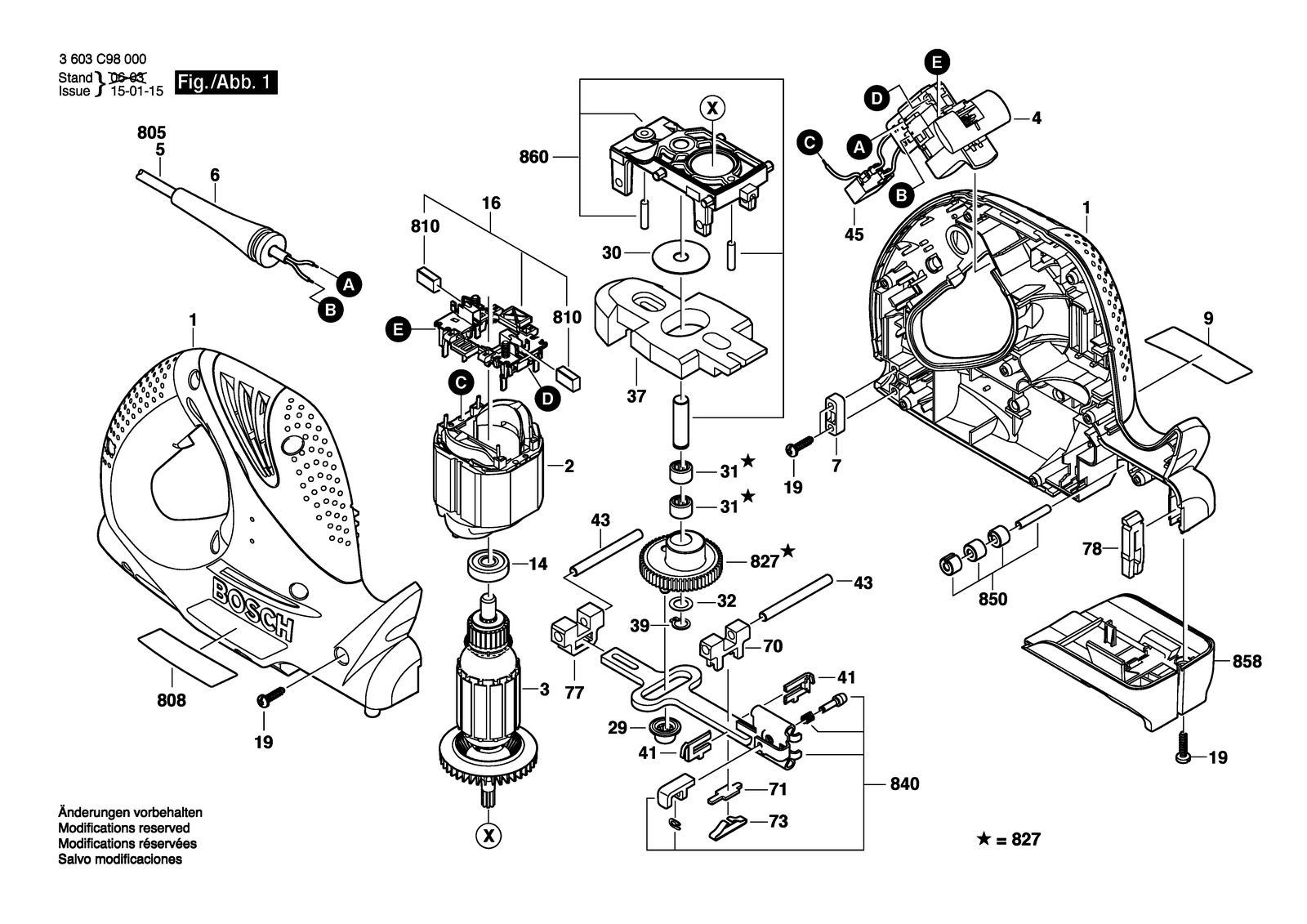

Bosch PFZ 500 E parts diagram, sheet 1
No.Part numberPart name
12609000751Housing
142600905046Groove ball bearing 8X19X6
162609001171Brush Plate
162609001400Brush Plate
192603490022Screw 4X16
22604220601Field 220-240V
22604220654Field 100-110V
292600914022Needle bearing
32604011305Armature 220-230V
32604011307Armature 100V
302600101048Shim 0,5 MM
312600917003Needle-Roller Bearing Ø8X8 MM
322600101077Shim 0,5 MM
372609000787Counterweight
392916640005Spring retaining ring DIN 471-8X0,8 Fst
42607200631Switch
412609001156Seal
432603201089Needle Roller
452609001375Suppression Filter
52609001429Power supply cord EU 2,7M 2 X 0,75MM H05 Vv-F
52609001531Power supply cord J 2,5M 2 X 0,75MM Pvc
52609001938Power supply cord GB 2,65M 2 X 1,0MM H05 Vv-F
52609001939Power supply cord AUS 2,6M 2 X 0,75MM H05 Vv-F
62600703019Grommet Ø8,7-Ø9,6X76 MM
62609002019Grommet
71611035005Cable Clip
72601035001Cable Clip
702609001160Plain bearing
712609001161Pressure Element
732609001163Compression Spring
772609001435Plain bearing
782609001855Lateral Guide
808160111A2L2Nameplate
8082609000778Nameplate
8082609000780Nameplate
8082609000781Nameplate
8102609000460Carbon-Brush Set 100-120V
8102610391290Carbon-Brush Set
8272609001552Eccentric Cog Wheel
8402609001553Lifting Rod
8502609001554Receptacle
8581600A0034UProtective Cover
8602609001556Bearing Bracket
92609000782Manufacturer's nameplate PFZ 500 E
