Bosch PFZ 1200 A

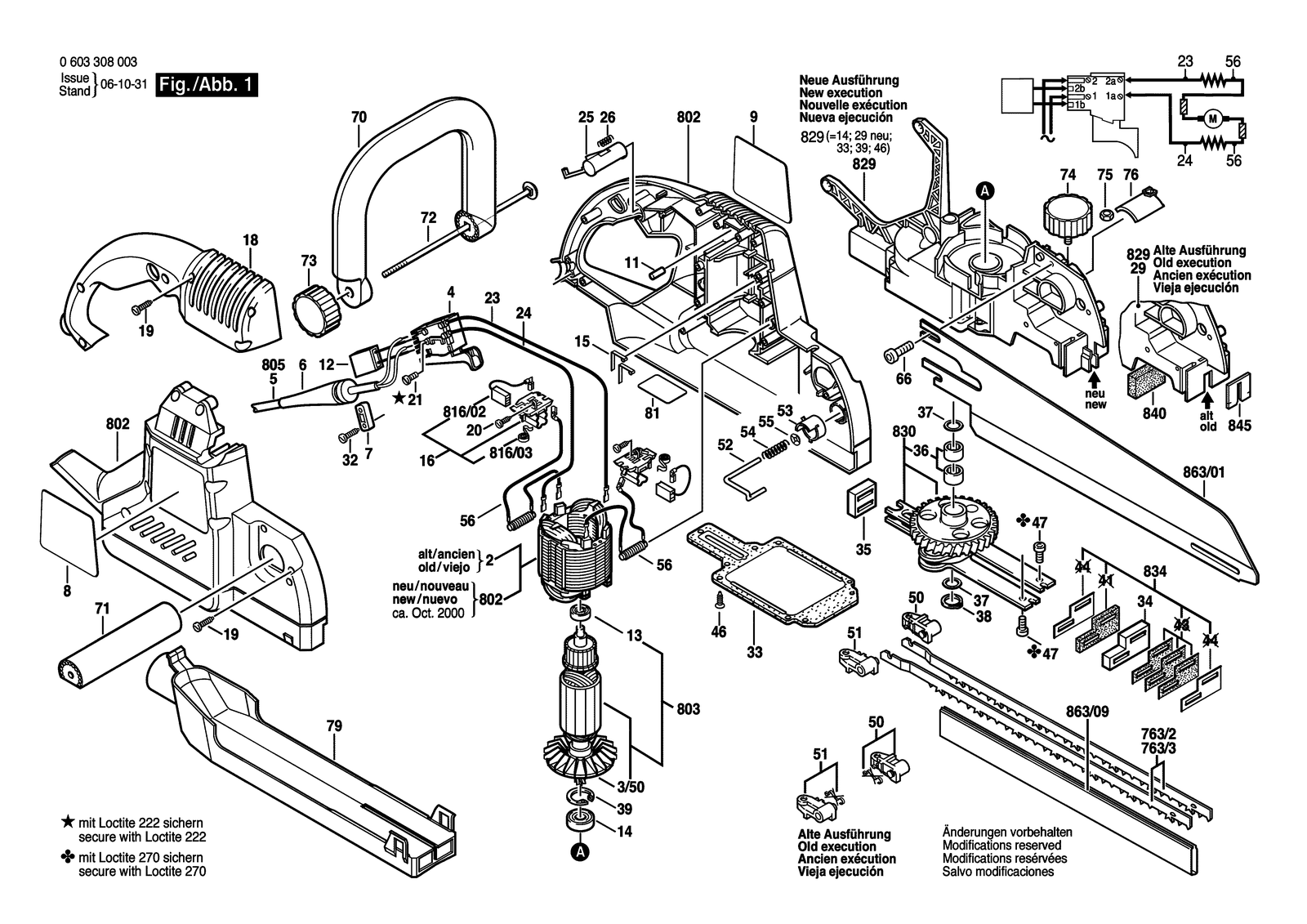

Bosch PFZ 1200 A hw-sabre saw: exploded parts diagram, 1 sheet, 86 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PFZ 1200 A: 86 positions on 1 sheet
Bosch PFZ 1200 A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 11 | 1603100036 | Rubber Buffer |
| 12 | 1607328028 | Suppression Filter |
| 13 | 1610905025 | Groove ball bearing 7X19X6 |
| 14 | 1600900042 | Groove ball bearing |
| 15 | 3604680003 | Contact Spring |
| 16 | 3604336002 | Brush Holder |
| 16 | 3604336007 | Brush Holder |
| 18 | 3605500125 | Housing Cover Green |
| 19 | 3603435009 | Tapping Screw Torx ST 3,9X19-C-Z |
| 20 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 21 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 23 | 3604411036 | Connecting Cable White L=280 MM |
| 24 | 3604411038 | Connecting Cable White L=180 MM |
| 25 | 3602329028 | Rejection Slide |
| 26 | 3604610041 | Compression Spring |
| 3/50 | 3606610002 | Fan |
| 32 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 33 | 3605500133 | Gear Cover |
| 34 | 3600929027 | Plain bearing |
| 35 | 3600929030 | Plain bearing |
| 36 | 3600913008 | Needle bearing |
| 37 | 3600102045 | Friction Washer |
| 38 | 2916650903 | Spring retaining ring DIN 471-12X1-FSTM |
| 39 | 2916660010 | Spring retaining ring DIN 472-26X1,2 MM |
| 4 | 3607200066 | Switch |
| 46 | 3603391003 | Thread-forming tap. Screw M3X8 |
| 47 | 3603410020 | Hex Socket Head Cap Screw M 6X16 MM |
| 5 | 1604460092 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1604460123 | Power supply cord GB 240V 4,15M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460134 | Power supply cord J 4,2M 2 X 1,25MM Gummi |
| 5 | 1604460137 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460403 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000391 | Power supply cord |
| 5 | 2604460102 | Power supply cord I 4,15M 2 X 1,0MM H05VV-F |
| 50 | 3602319021 | Base Body |
| 51 | 3602319022 | Base Body |
| 52 | 3601921005 | Bow |
| 53 | 3600522002 | Actuating Element |
| 54 | 3604682004 | Compression Spring |
| 55 | 3600112002 | Locking washer |
| 56 | 3604411035 | Connecting Cable White L=125 MM |
| 56 | 3604463010 | Suppression Filter |
| 56 | 3604463013 | Suppression Filter |
| 6 | 1600703026 | Grommet Ø7,2-Ø9,5X81 MM |
| 6 | 2609005766 | Grommet |
| 66 | 3603386041 | Hex Socket Head Cap Screw M6 |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 70 | 3605132063 | Auxiliary Handle |
| 71 | 3600723012 | Distance Pipe |
| 72 | 3603300015 | Round-Head Bolt |
| 73 | 3602317021 | Handwheel M6 |
| 74 | 3602317020 | Handwheel M6 |
| 75 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 76 | 3601329018 | Clamping Piece |
| 763/2 | 2608632119 | Saw Blade Set 300 MM |
| 763/3 | 2608632122 | Saw Blade Set 300 MM |
| 79 | 3602317017 | Suction Channel |
| 8 | 3601110259 | Nameplate |
| 8 | 3601110296 | Nameplate |
| 8 | 3601110297 | Nameplate |
| 8 | 3601110298 | Nameplate |
| 8 | 3601110299 | Nameplate |
| 8 | 3601110300 | Nameplate |
| 8 | 3601110301 | Nameplate |
| 8 | 3601110302 | Nameplate |
| 8 | 3601110304 | Nameplate |
| 802 | 1607000710 | Field 100-120V |
| 802 | 1607000712 | Field 230-240V |
| 803 | 1604010496 | Armature 240V |
| 803 | 1604010497 | Armature 120V |
| 803 | 1604010498 | Armature 110-120V |
| 803 | 3604010077 | Armature 220-230V |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 81 | 3601110332 | Reference Plate |
| 816/02 | 3604321012 | Carbon Brush |
| 816/02 | 3604321025 | Carbon Brush |
| 816/03 | 3604652500 | Spiral Spring |
| 829 | 3605109010 | Gear Housing |
| 830 | 3602319020 | Lift Gear Z=78 |
| 834 | 3600929039 | Seal Kit |
| 840 | 1602381006 | Insulating Plate 20X20X50 MM |
| 845 | 3600929034 | Lateral Guide |
| 863/01 | 2608045016 | Sword 300 MM |
| 863/09 | 2601329048 | Guard Profile 300 MM |
| 9 | 3601110258 | Manufacturer's nameplate |
