Bosch PFS 7000

Bosch PFS 7000 spray pistol: exploded parts diagram, 2 sheets, 46 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PFS 7000: 46 positions on 2 sheets

Bosch PFS 7000 parts list (2 sheets)

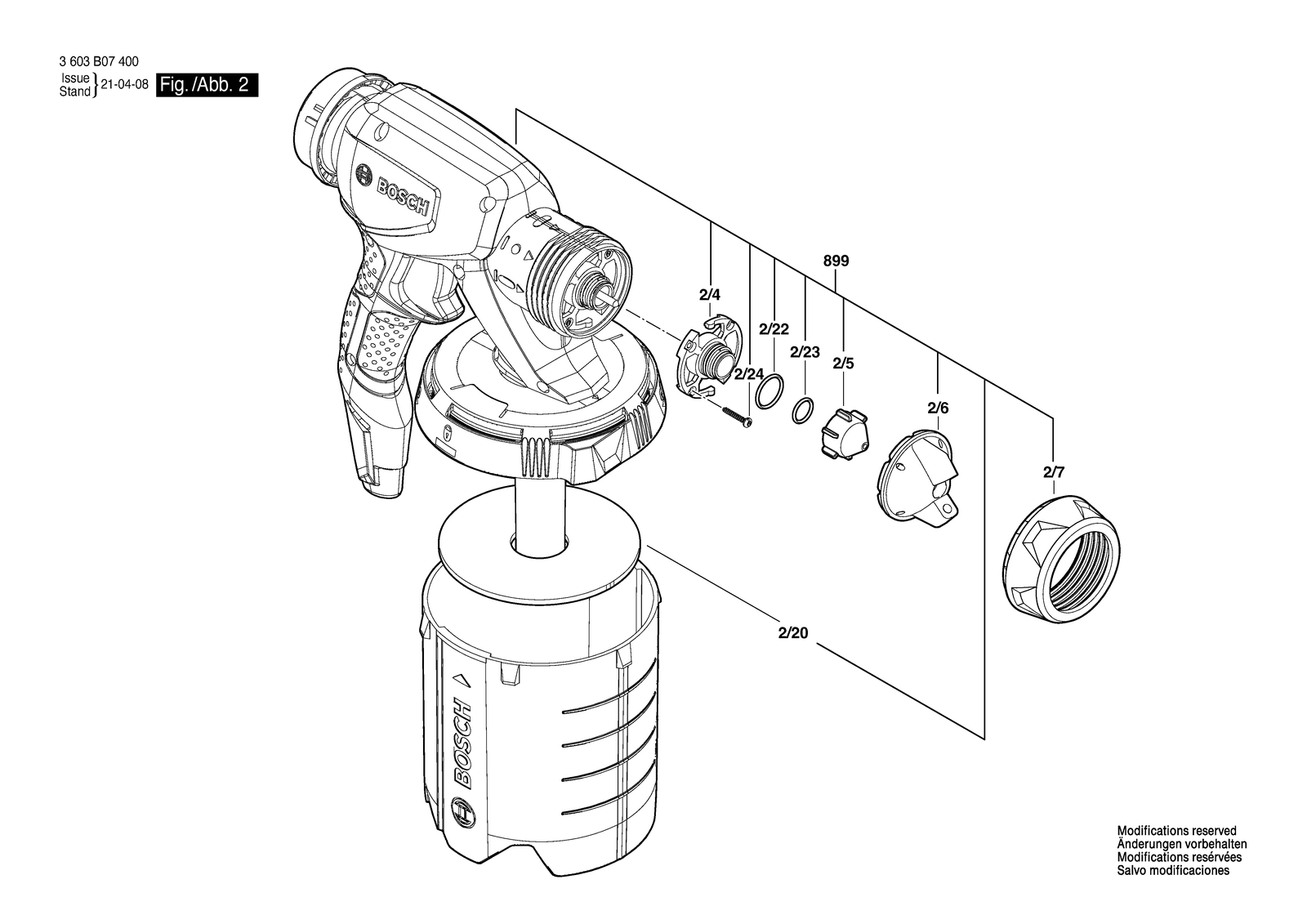

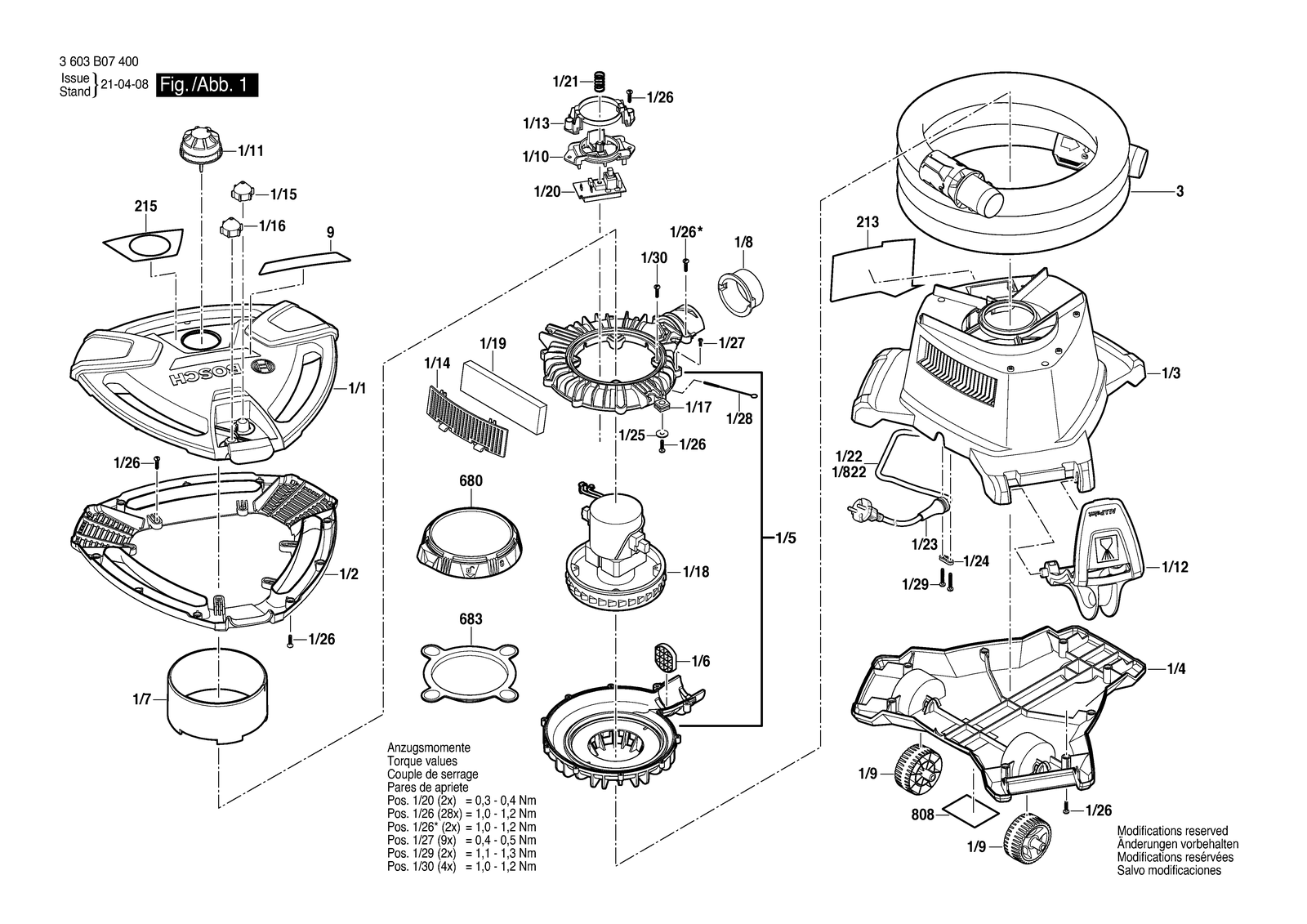

Bosch PFS 7000 parts diagram, sheet 1Bosch PFS 7000 parts diagram, sheet 2
No.Part numberPart name
1/12609006571Housing Section
1/102609006758Fixing Plate
1/112609006759Push-Button
1/122609006762Handle
1/132609006774Fixing Plate
1/142609006755Support
1/152609006620Nozzle Gray
1/162609006883Nozzle Black
1/172609006797Vibration Damper
1/181600A025CJMotor
1/192609006754Air Filter
1/22609006572Housing Section
1/201600A01B7NElectronic Module
1/212609006760Compression Spring
1/232609002019Grommet
1/242601035001Cable Clip
1/252916011892Plain Washer DIN 9021-B 4,3-ST
1/262603490022Screw 4X16
1/272603490017Torx Oval-Head Screw 3X10
1/282609007096Brush
1/292603490024Torx Oval-Head Screw 4X25
1/32609006573Housing Section
1/302914491410Thread-forming tap. Screw M4X16
1/42609006570Housing Section
1/52609006485Motor Housing
1/62609006785Safety Cover
1/72609006752Air Guide Plate
1/82609006753Bushing
1/8221607000388Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F
1/92609006756Wheel
2/202609006628Sealing Plate
2/221610210201O-Ring 17,0X2,0 MM
2/232600210004O-Ring 10,82X1,78 MM
2/242603490018Torx Oval-Head Screw 3X18
2/42609006613Insert
2/52609006614Nozzle White
2/62609006615Spraying Nozzle
2/72609006616Union Nut
2132609007025Sticker
2152609007222Sticker
32609007047Air Hose
6802609007102Cover
6832609007097Filter
808160111A8P1Nameplate
8992609006609Spray gun
9160111C48GManufacturer's nameplate
