Bosch PFS 55

Bosch PFS 55 spray pistol: exploded parts diagram, 1 sheet, 11 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PFS 55: 11 positions on 1 sheet

Bosch PFS 55 parts list (1 sheet)

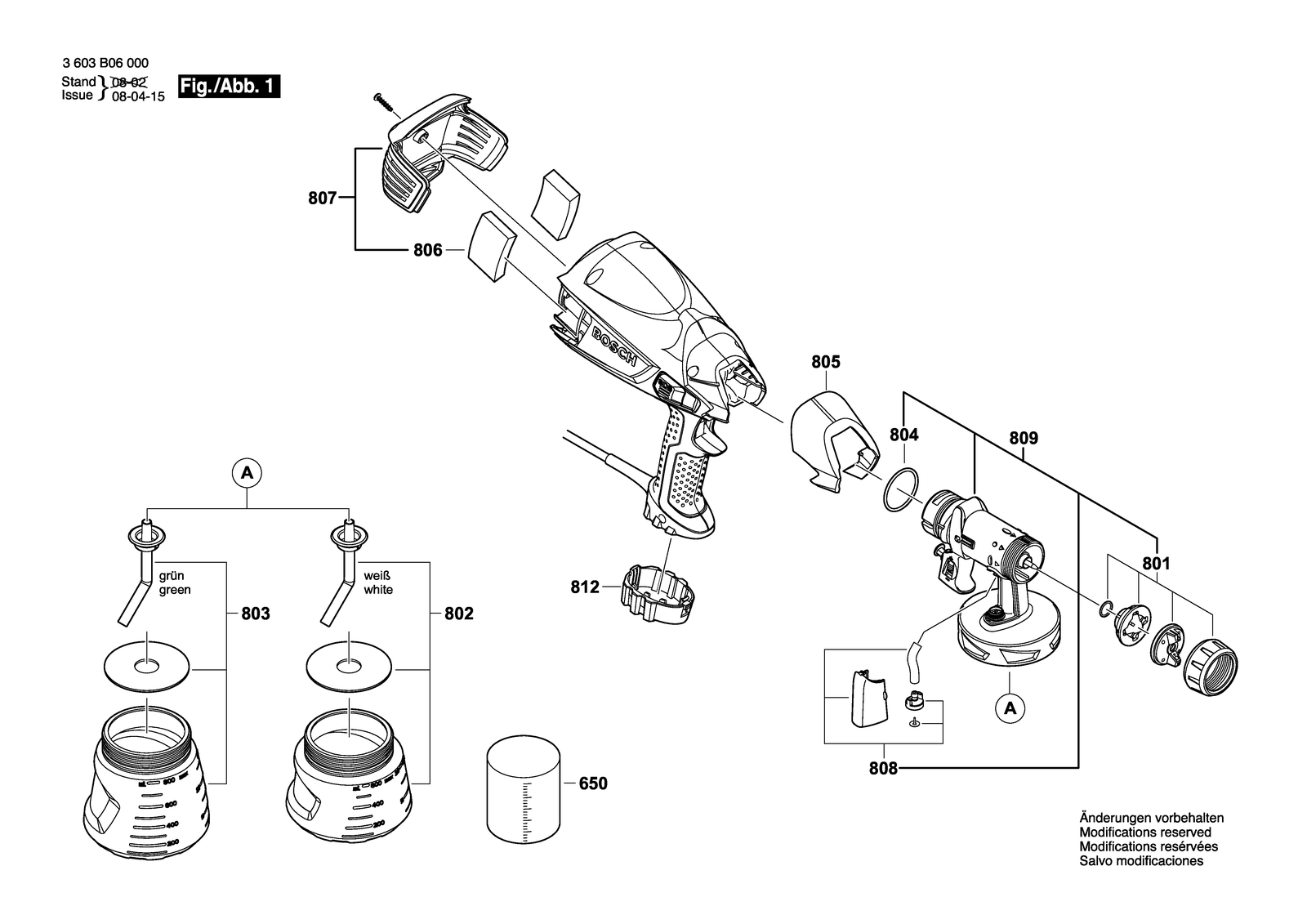

Bosch PFS 55 parts diagram, sheet 1
No.Part numberPart name
6502609390583Graduated Beaker 100 Ml
8011609203W59Nozzle Set
8021609203W60Ink Reservoir White 600 Ml
8031609203W61Ink Reservoir Green 800 Ml
8041609203W89O-Ring
8051609203W90Cover
8061609203W92Air Filter
8071609203W93Filter Cover
8081609203W91Valve Set
8091609203W94Spray Pistol
8121609203W96Base Adapter
