Bosch PFS 280 E
Bosch PFS 280 E fine-cut saw: exploded parts diagram, 2 sheets, 95 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

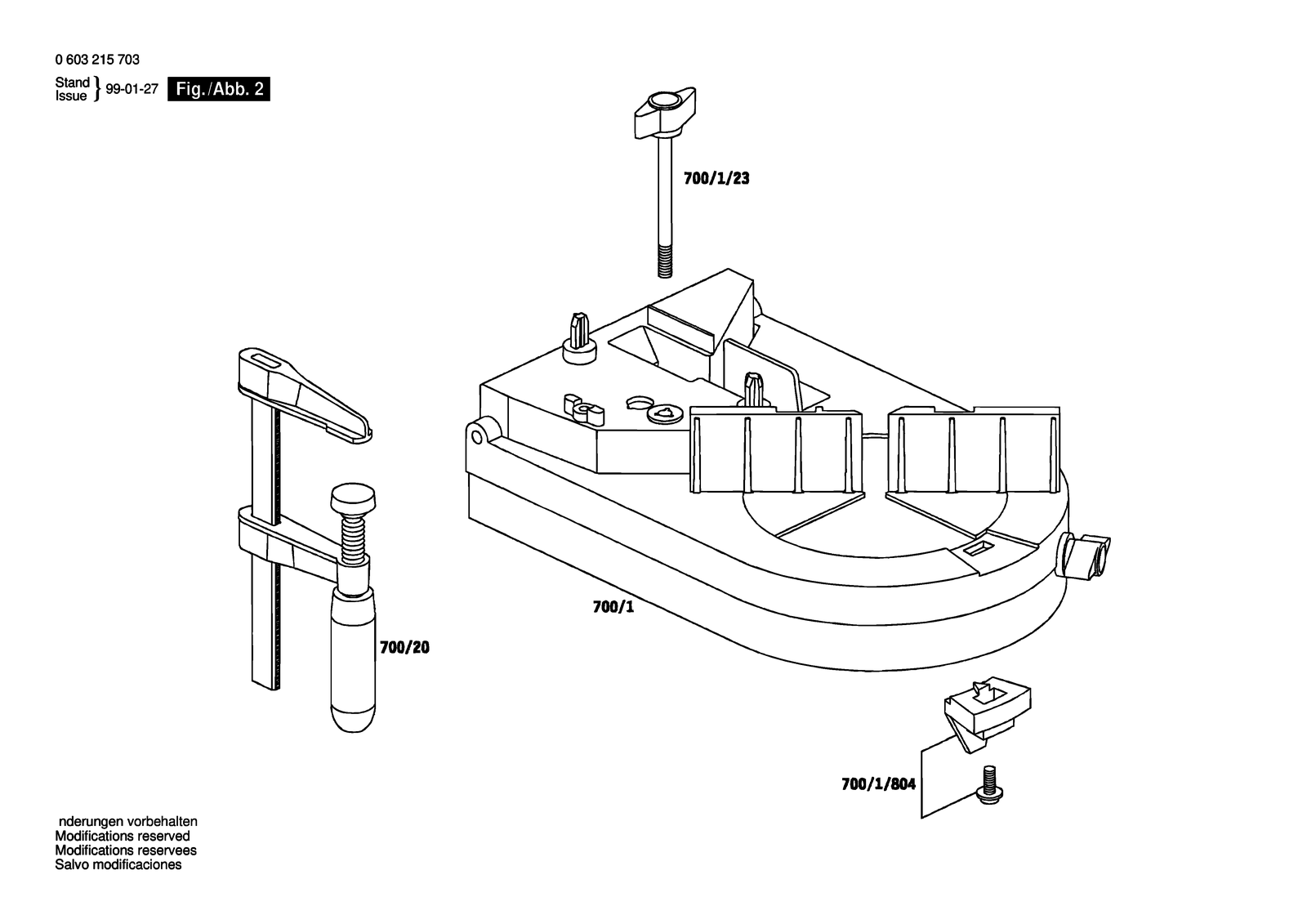

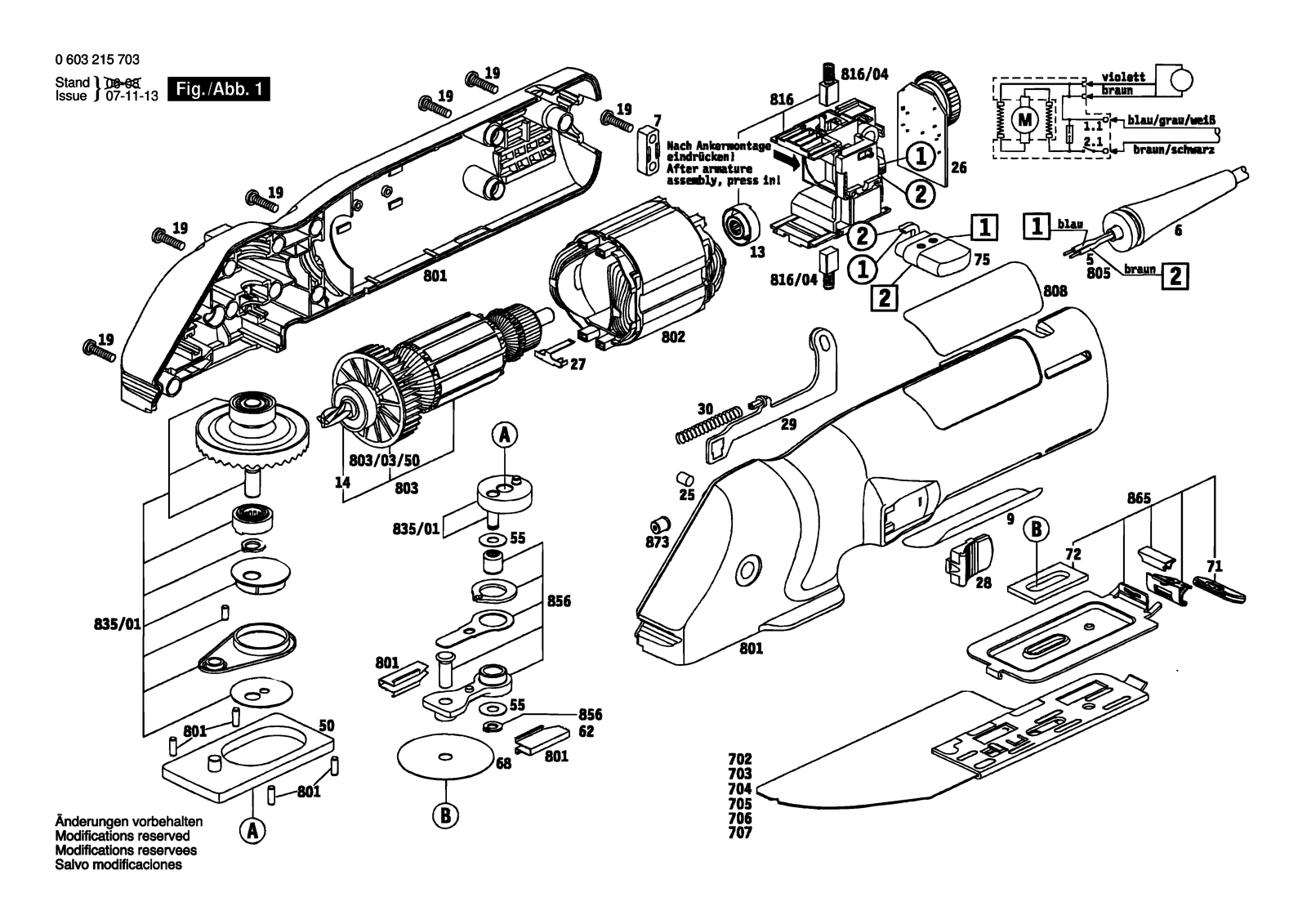

All parts of Bosch PFS 280 E: 95 positions on 2 sheets
Bosch PFS 280 E parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 13 | 2605805008 | Flanged Bearing |
| 13 | 2605805008 | Flanged Bearing |
| 14 | 2600905065 | Groove ball bearing 9X24X7 |
| 14 | 2600905065 | Groove ball bearing 9X24X7 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 25 | 2603100056 | Damping rubber |
| 25 | 2603100056 | Damping rubber |
| 26 | 2607233028 | Rpm Actuator 115V |
| 26 | 2607233029 | Rpm Actuator 230-240V |
| 26 | 2607233029 | Rpm Actuator 230-240V |
| 27 | 2601329037 | Contact Spring |
| 27 | 2601329037 | Contact Spring |
| 28 | 1602026057 | Switch Handle Black |
| 28 | 1602026057 | Switch Handle Black |
| 29 | 2602319017 | Adjusting Slide |
| 29 | 2602319017 | Adjusting Slide |
| 30 | 1604611026 | Compression Spring |
| 30 | 1604611026 | Compression Spring |
| 5 | 1604460430 | Power supply cord CH 2,65M 2 X 1,0MM H05VV-F |
| 5 | 2604460142 | Power supply cord I 2,65M 2 X 1,0MM H05VV-F |
| 5 | 2604460227 | Power supply cord SAM 2,65M 2 X 082MM SJ 18/2 |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460295 | Power supply cord AUS 2,6M 2 X 0,75MM H05 Vv-F |
| 5 | 1604460430 | Power supply cord CH 2,65M 2 X 1,0MM H05VV-F |
| 50 | 2601098047 | Counterweight |
| 50 | 2601098047 | Counterweight |
| 55 | 2600100064 | Friction Washer |
| 55 | 2600100064 | Friction Washer |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 62 | 2600118010 | Clamping Ring |
| 62 | 2600118010 | Clamping Ring |
| 68 | 2600101094 | Sheet metal cover |
| 68 | 2600101094 | Sheet metal cover |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 700/1 | 2608190036 | Cross cutting table |
| 700/1 | 2608190036 | Cross cutting table |
| 700/1/23 | 2603480010 | Wing Screw M 6X77 MM |
| 700/1/23 | 2603480010 | Wing Screw M 6X77 MM |
| 700/1/804 | 2602123900 | Pointer |
| 700/1/804 | 2602123900 | Pointer |
| 700/20 | 2607960008 | Adjustable screw clamp |
| 700/20 | 2607960008 | Adjustable screw clamp |
| 702 | 2608661200 | Saw Blade Set FS 200 Ab |
| 702 | 2608661200 | Saw Blade Set FS 200 Ab |
| 703 | 2608661201 | Saw Blade Set FS 200 Abu |
| 703 | 2608661201 | Saw Blade Set FS 200 Abu |
| 704 | 2608661202 | Saw Blade Set FS 180 At |
| 704 | 2608661202 | Saw Blade Set FS 180 At |
| 705 | 2608661203 | Saw Blade Set FS 180 Atu |
| 705 | 2608661203 | Saw Blade Set FS 180 Atu |
| 706 | 2608661204 | Saw Blade Set FS 180 Dt |
| 706 | 2608661204 | Saw Blade Set FS 180 Dt |
| 707 | 2608661205 | Saw Blade Set FS 180 Dtu |
| 707 | 2608661205 | Saw Blade Set FS 180 Dtu |
| 71 | 2600591012 | Push-Button |
| 71 | 2600591012 | Push-Button |
| 72 | 2601005020 | Felt Seal |
| 72 | 2601005020 | Felt Seal |
| 75 | 2604465109 | Suppression Filter |
| 75 | 2604465109 | Suppression Filter |
| 801 | 2605104823 | Housing Section Green |
| 801 | 2605104808 | Housing Section |
| 802 | 2604220598 | Field 110-115V |
| 802 | 2604220599 | Field 230-240V |
| 802 | 2604220599 | Field 230-240V |
| 803 | 2604010957 | Armature 115V |
| 803 | 2604010958 | Armature 230-240V |
| 803 | 2604010958 | Armature 230-240V |
| 803/03/50 | 2606610050 | Fan |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 808 | 2601119847 | Nameplate |
| 808 | 2601119848 | Marking Plate |
| 808 | 2601119849 | Marking Plate |
| 808 | 2601119850 | Nameplate |
| 808 | 2601119851 | Marking Plate |
| 808 | 2601119852 | Nameplate |
| 808 | 2601117323 | Nameplate |
| 816 | 2604337910 | Brush Plate |
| 816 | 2604337910 | Brush Plate |
| 816/04 | 2604321921 | Carbon-Brush Set |
| 816/04 | 2604321921 | Carbon-Brush Set |
| 835/01 | 2603100901 | Gear Shaft |
| 835/01 | 2603100901 | Gear Shaft |
| 856 | 2602001902 | Connecting Rod |
| 856 | 2602001902 | Connecting Rod |
| 865 | 2608000919 | Fixing Plate |
| 865 | 2608000919 | Fixing Plate |
| 873 | 1600591019 | Thrust Member |
| 873 | 1600591019 | Thrust Member |
| 9 | 2601119595 | Manufacturer's nameplate |
| 9 | 2601117322 | Manufacturer's nameplate |
