Bosch PFS 105 E WALLPaint spray pistol: exploded parts diagram, 1 sheet, 12 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PFS 105 E WALLPaint: 12 positions on 1 sheet

Bosch PFS 105 E WALLPaint parts list (1 sheet)

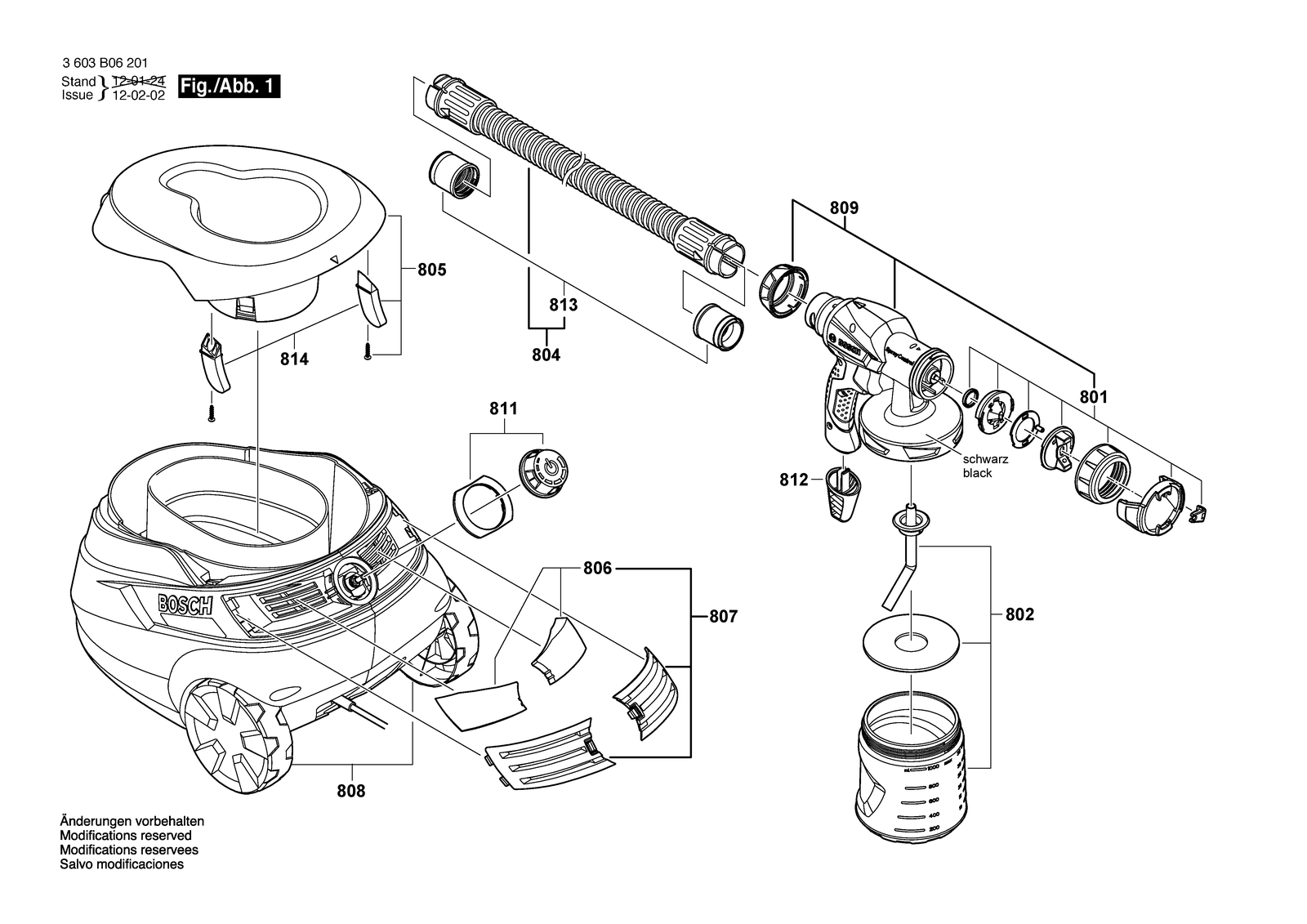

Bosch PFS 105 E WALLPaint parts diagram, sheet 1
No.Part numberPart name
8011600A000YANozzle Set
8021600A000Y7Ink Reservoir
8041609203W98Air Hose
8051609203W99Cover
8061609203X00Air Filter
8071609203X01Filter Cover
8081609203X02Wheel
8091600A000YBSpray Pistol
8111609203X03Rotary Switch
8121600A000YCBase Adapter
8131609203W71Protective Cap
8141609203X08Hook
