Bosch PFS 1000 spray pistol: exploded parts diagram, 2 sheets, 32 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PFS 1000: 32 positions on 2 sheets

Bosch PFS 1000 parts list (2 sheets)

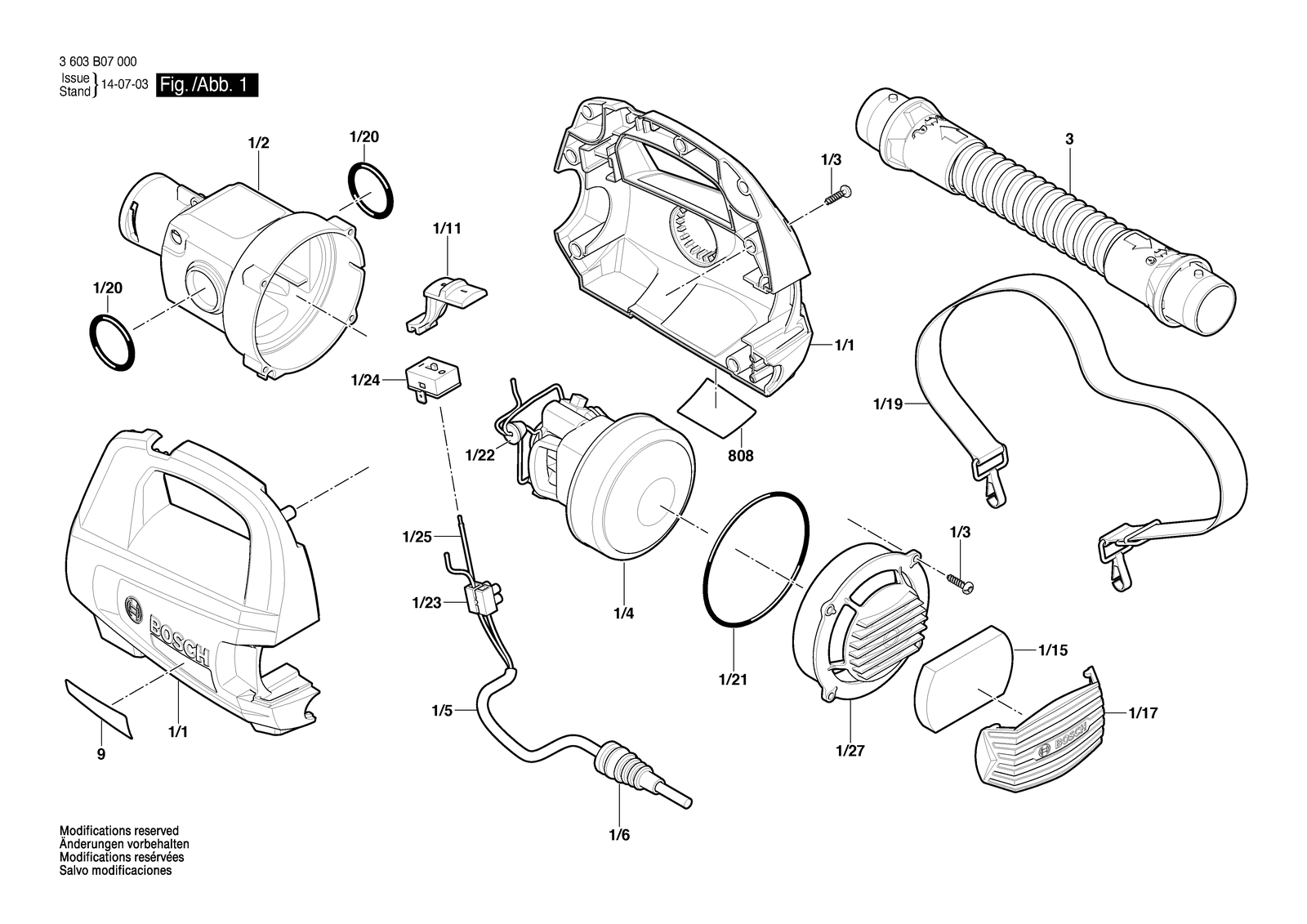

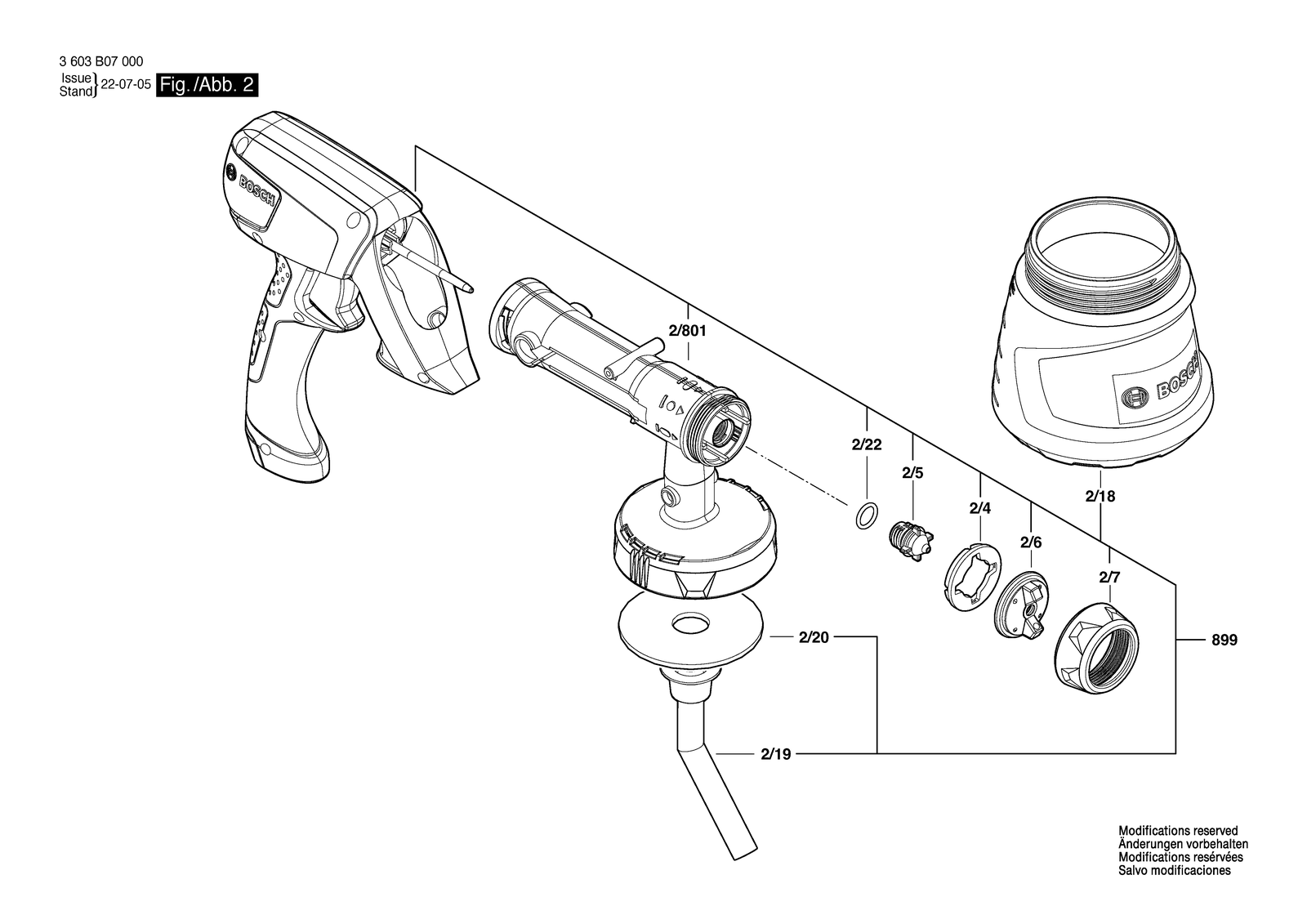

Bosch PFS 1000 parts diagram, sheet 1Bosch PFS 1000 parts diagram, sheet 2
No.Part numberPart name
1/1160510829YHousing Section
1/111600A002MMSwitch Button
1/151600A002MNAir Filter
1/171600A002MPFilter Cover
1/191600A0036TShoulder strap
1/2160510829ZMotor Housing
1/201600210059O-Ring
1/21160021005AO-Ring
1/222609006881Cable Sleeve
1/232609000399Socket-Terminal Strip
1/24160720031USwitch
1/251600A002MXWire
1/271600A003S7Cover
1/32603490022Screw 4X16
1/41600A01H03Motor
1/52604460243Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
1/52604460259Power supply cord EU 230V 2,7M 2 X 0,75MM H05 Vv-F
1/62609002019Grommet
2/181600A002N6Ink Reservoir
2/191600A002N7Suction Pipe
2/201600A002N8Sealing Plate
2/22160021005BO-Ring
2/41600A002MZInsert
2/51600A002R5Nozzle Grey
2/61600A002N1Spraying Nozzle
2/71600A002N2Union Nut
2/8011600A004GYHousing Base
31600A002MLAir Hose Set
808160111A2LLNameplate
808160111A2LRNameplate
8991600A002MKSpray gun
9160111C03AManufacturer's nameplate PFS 1000
