All parts of Makita PF0610: 60 positions on 1 sheet

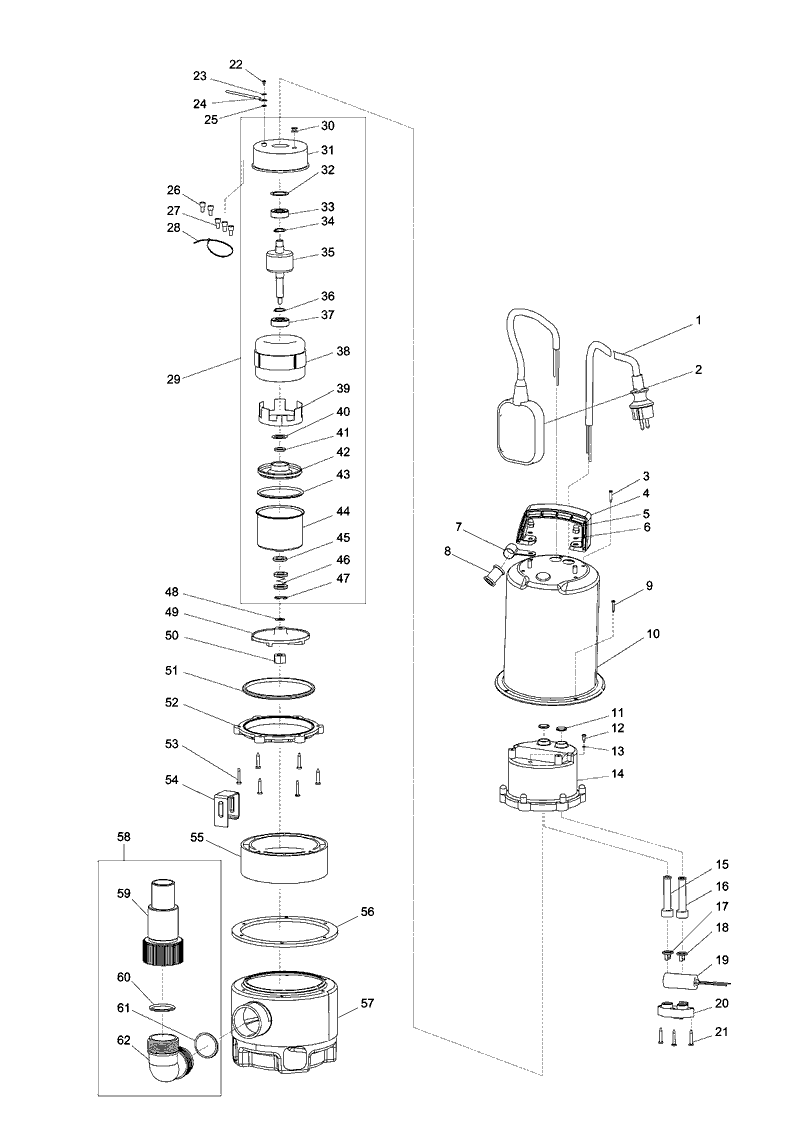

Sheet 1: Makita PF0610 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 609025436 | |
| 2 | 609026209 | Makita 609026209 FLOAT SWITCH |
| 3 | 609026213 | Makita 609026213 SELF TAPPING SCREW |
| 4 | 609024798 | Makita 609024798 HANDLE |
| 5 | 609024637 | Makita 609024637 NUT |
| 6 | 609024638 | Makita 609024638 WASHER |
| 7 | 609024650 | Makita 609024650 WIRE CLAMP |
| 8 | 609026214 | Makita 609026214 CABLE JACKET |
| 9 | 609024639 | Makita 609024639 SCREW |
| 10 | 609024663 | Makita 609024663 MAIN PUMP SHELL KIT |
| 11 | 609024641 | Makita 609024641 O RING |
| 12 | JH00000002 | |
| 13 | JH00000003 | |
| 14 | 609024642 | Makita 609024642 BACK PUMP CASING |
| 15 | 609024588 | Makita 609024588 CABLE JACKET |
| 16 | 609024664 | |
| 17 | 609024590 | Makita 609024590 CABLE PRESS PAD |
| 18 | 609024589 | Makita 609024589 CABLE PRESS PAD |
| 19 | JH00000076 | |
| 20 | 609024592 | Makita 609024592 CABLE PRESS PAD |
| 21 | 609024593 | Makita 609024593 SELF TAPPING SCREW |
| 22 | 609024601 | |
| 23 | 609024596 | |
| 24 | JH00000004 | |
| 25 | 609024600 | |
| 26 | 609024629 | Makita 609024629 NYLON SAFTY PRESS CAP |
| 27 | 609024630 | Makita 609024630 NYLON SAFTY PRESS CAP |
| 28 | 609024632 | |
| 30 | 609024595 | |
| 31 | 609024594 | |
| 32 | 609024602 | |
| 33 | 609024603 | |
| 34 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 35 | JH00000061 | |
| 36 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 37 | 609024603 | |
| 38 | JH00000062 | |
| 39 | 609024667 | |
| 40 | 609024607 | |
| 41 | 609024608 | Makita 609024608 SKELETON SEAL RING |
| 42 | 609024609 | |
| 43 | 609024610 | |
| 44 | 609024668 | |
| 45 | 609024608 | Makita 609024608 SKELETON SEAL RING |
| 46 | 609024633 | Makita 609024633 MECHANICAL SEAL |
| 47 | 609024634 | Makita 609024634 RETAINING RING |
| 48 | 609024613 | Makita 609024613 SPACER WASHER |
| 49 | 609024669 | |
| 50 | 609024615 | Makita 609024615 NUT |
| 51 | 609024612 | Makita 609024612 O RING |
| 52 | JH00000058 | |
| 53 | 609024646 | Makita 609024646 SELF TAPPING SCREW |
| 54 | 609024654 | Makita 609024654 GROUND CONNECTOR |
| 55 | 609024655 | Makita 609024655 LOCATING RING |
| 56 | 609024671 | Makita 609024671 SEAL |
| 57 | 609024672 | |
| 59 | 609024627 | Makita 609024627 OUTPUT CONNECTOR |
| 60 | 609024625 | Makita 609024625 O RING |
| 61 | 609024625 | Makita 609024625 O RING |
| 62 | 609024626 | Makita 609024626 ELBOW |
