Makita PF0300: exploded parts diagram, 1 sheet, 55 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita PF0300: 55 positions on 1 sheet

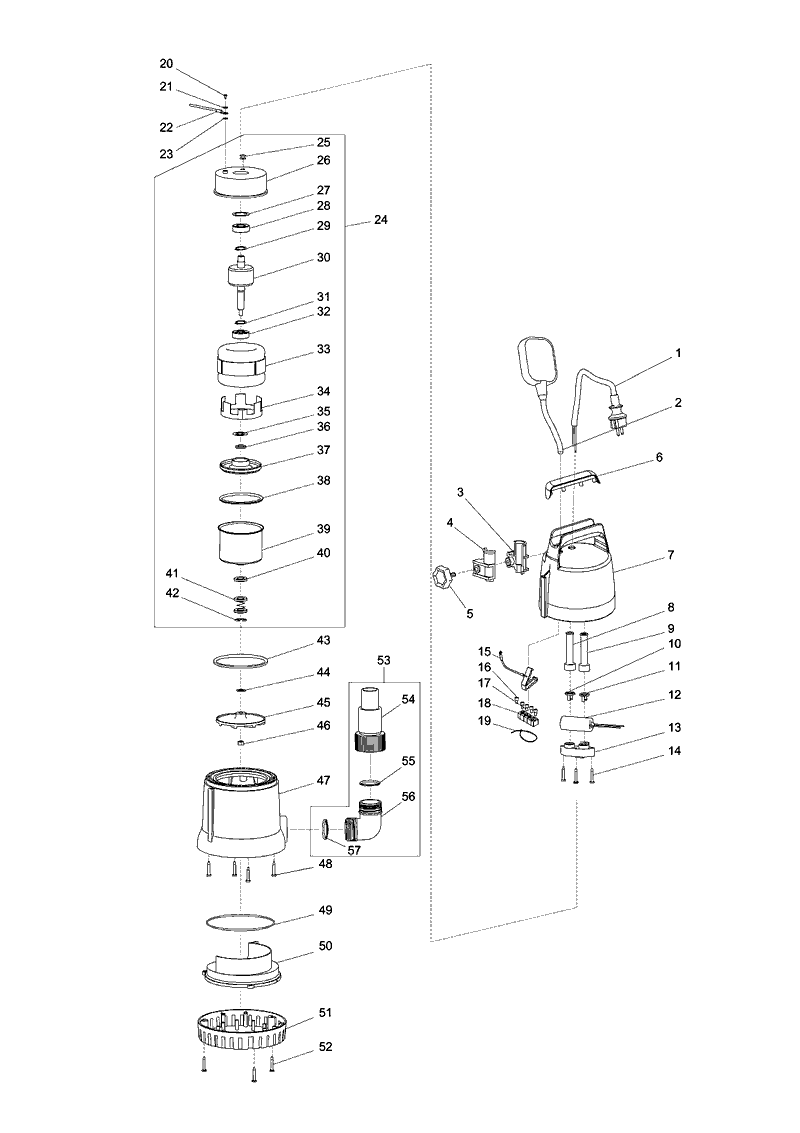

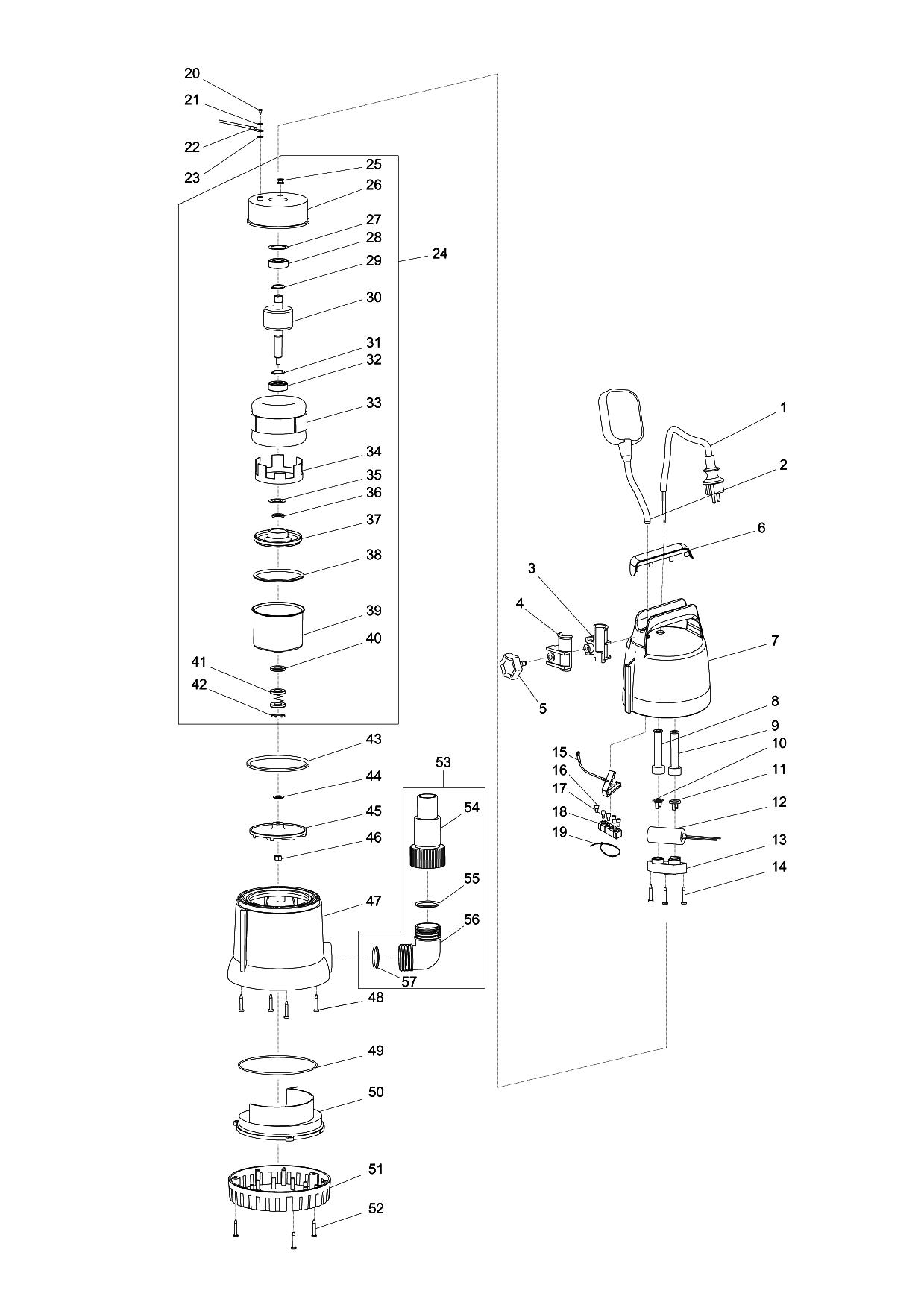

Sheet 1: Makita PF0300 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 609025434 | Makita 609025434 POWER SUPPLY CORD W PLUG |
| 2 | 609026209 | Makita 609026209 FLOAT SWITCH |
| 3 | 609026210 | |
| 4 | 609026211 | |
| 5 | 609026212 | |
| 6 | 609024586 | Makita 609024586 HANDLE COVER |
| 7 | 609026219 | Makita 609026219 BACK PUMP CASING |
| 8 | 609024588 | Makita 609024588 CABLE JACKET |
| 9 | 609024587 | Makita 609024587 CABLE JACKET |
| 10 | 609024590 | Makita 609024590 CABLE PRESS PAD |
| 11 | 609024589 | Makita 609024589 CABLE PRESS PAD |
| 12 | JH00000044 | |
| 13 | 609024592 | Makita 609024592 CABLE PRESS PAD |
| 14 | 609024593 | Makita 609024593 SELF TAPPING SCREW |
| 15 | 609024628 | Makita 609024628 GROUND COVER KIT |
| 16 | 609024629 | Makita 609024629 NYLON SAFTY PRESS CAP |
| 17 | 609024630 | Makita 609024630 NYLON SAFTY PRESS CAP |
| 18 | 609024631 | Makita 609024631 RUBBER CLIP |
| 19 | 609024632 | |
| 20 | 609024601 | |
| 21 | 609024596 | |
| 22 | JH00000004 | |
| 23 | 609024600 | |
| 25 | 609024595 | |
| 26 | 609024594 | |
| 27 | 609024602 | |
| 28 | 609024603 | |
| 29 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 30 | JH00000046 | |
| 31 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 32 | 609024603 | |
| 33 | JH00000047 | |
| 34 | 609024606 | |
| 35 | 609024607 | |
| 36 | 609024608 | Makita 609024608 SKELETON SEAL RING |
| 37 | 609024609 | |
| 38 | 609024610 | |
| 39 | 609024611 | |
| 40 | 609024608 | Makita 609024608 SKELETON SEAL RING |
| 41 | 609024633 | Makita 609024633 MECHANICAL SEAL |
| 42 | 609024634 | Makita 609024634 RETAINING RING |
| 43 | 609024612 | Makita 609024612 O RING |
| 44 | 609024613 | Makita 609024613 SPACER WASHER |
| 45 | 609024614 | Makita 609024614 IMPELLER |
| 46 | 609024615 | Makita 609024615 NUT |
| 47 | 609024616 | Makita 609024616 MAIN PUMP SHELL KIT |
| 48 | 609024620 | Makita 609024620 SELF TAPPING SCREW |
| 49 | 609024621 | Makita 609024621 O RING |
| 50 | 609024622 | Makita 609024622 INNER BASE |
| 51 | 609024623 | Makita 609024623 BASE |
| 52 | 609024624 | Makita 609024624 SELF TAPPING SCREW |
| 54 | 609024627 | Makita 609024627 OUTPUT CONNECTOR |
| 55 | 609024625 | Makita 609024625 O RING |
| 56 | 609024626 | Makita 609024626 ELBOW |
| 57 | 609024625 | Makita 609024625 O RING |
