Bosch PEX 400 AE

Bosch PEX 400 AE random orbital sander: exploded parts diagram, 1 sheet, 45 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PEX 400 AE: 45 positions on 1 sheet

Bosch PEX 400 AE parts list (1 sheet)

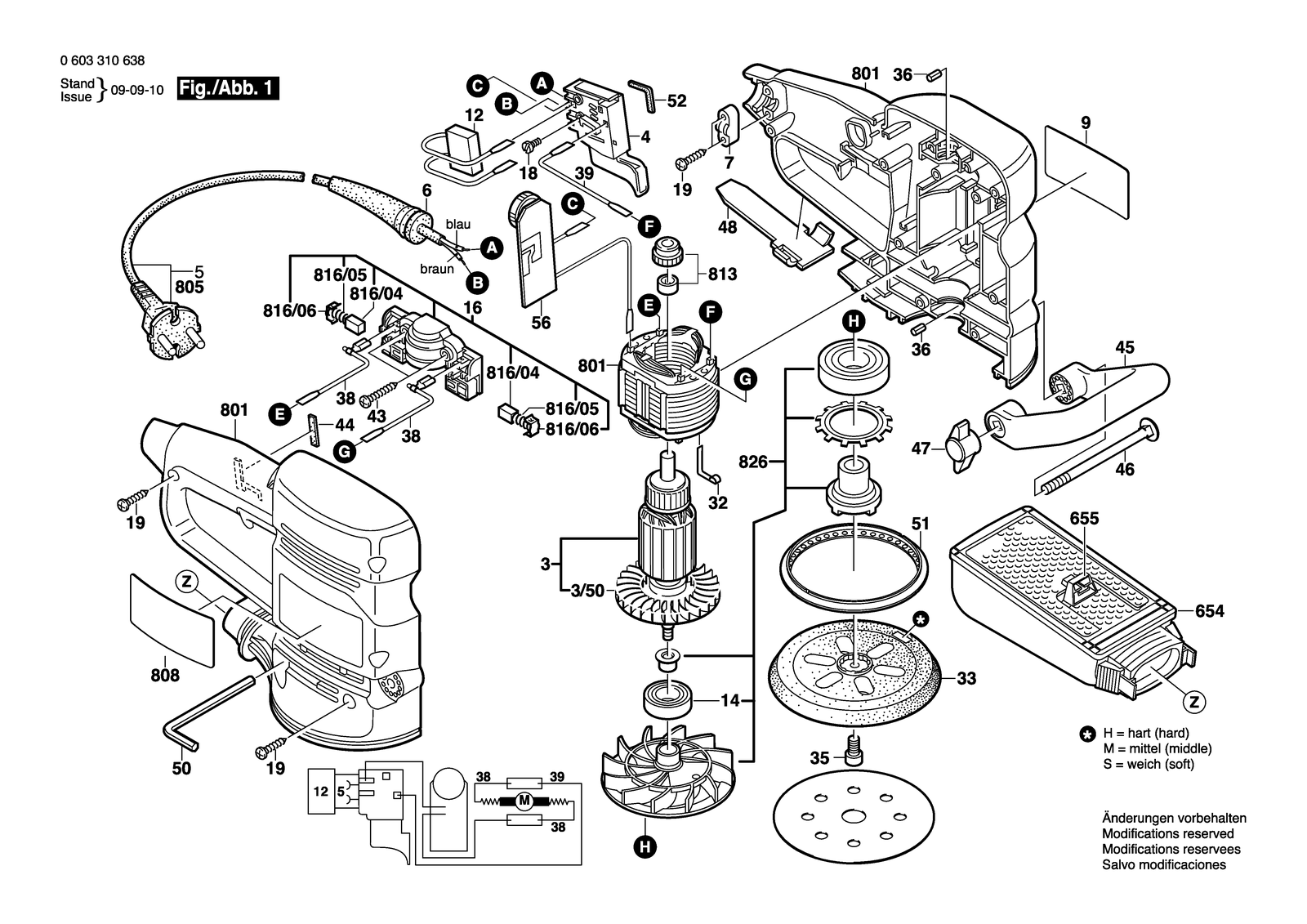

Bosch PEX 400 AE parts diagram, sheet 1
No.Part numberPart name
121607328028Suppression Filter
142600905034Groove ball bearing
162605807122Brush Plate
162609992619Brush Plate
182603410001Socket head cap screw M3X6,5-4.8
192603490022Screw 4X16
32604011263Armature 100V
32604011264Armature 115-120V
322601329057Contact Spring
332608601902Backing Pad
352603414062Hex Socket Head Cap Screw
361603100036Rubber Buffer
382604448180Connecting Cable White L=113 MM
392604448181Connecting Cable White L=233 MM
42607200260Switch
432603490023Torx Oval-Head Screw 4X20
442602380003Seal Strip
452602025068Handle Black
462910285226Round-Head Bolt DIN 603-M6X110
471603339006Wing Nut M6
482608005043Pusher
52604460129Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2
52604460173Power supply cord J 5M 2 X 0,75MM Pvc
502610364015Hexagon Socket Screw Key 5 MM
512600206015Friction Ring
522601022000Damping Plate
562607230120Rpm Actuator 100-120V
62600703018Grommet Ø7,3-Ø8,6X76 MM
62600703019Grommet Ø8,7-Ø9,6X76 MM
6542605411129Dust Chamber
6552605702039Adapter
71611035005Cable Clip
72601035001Cable Clip
8012605104798Housing Section Green
8012605104799Housing Section Green
8082601117768Nameplate
8082601117770Nameplate
8132605805005Cartridge bearing
816/052604610026Compression Spring
816/062601322013Ratchet Cap
816/062601329051Ratchet Cap
816/062604321905Carbon-Brush Set
8262606610901Fan Lefthand Threads
92601116018Manufacturer's nameplate
92601117752Manufacturer's nameplate
