Bosch PEX 125 A-1

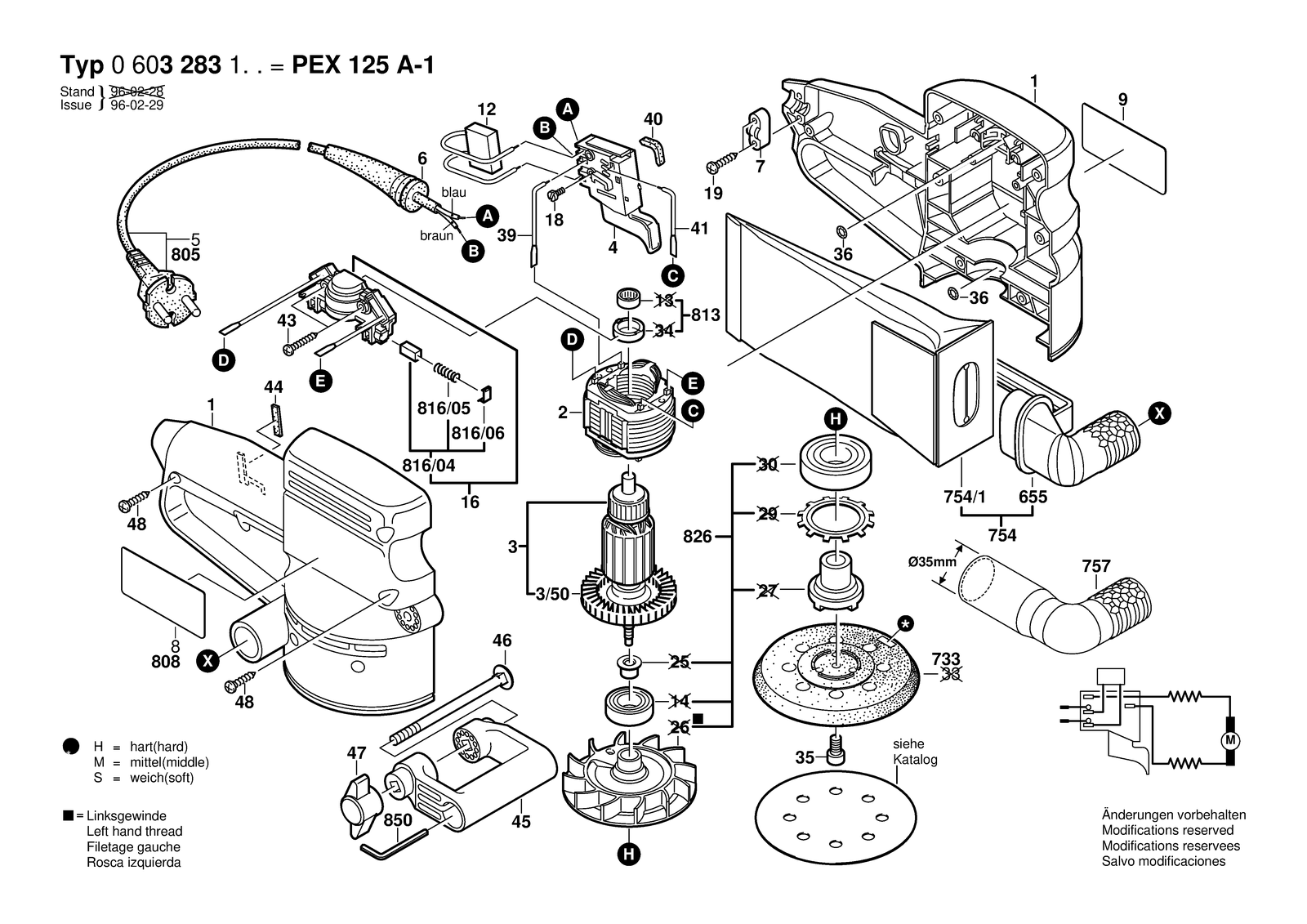

Bosch PEX 125 A-1 random orbital sander: exploded parts diagram, 1 sheet, 116 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PEX 125 A-1: 116 positions on 1 sheet
Bosch PEX 125 A-1 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104288 | Housing Section Green |
| 1 | 2605104507 | Housing Section Red |
| 1 | 2605104570 | Housing Section Gray |
| 12 | 1607328028 | Suppression Filter |
| 16 | 2604337118 | Brush Plate |
| 16 | 2605807122 | Brush Plate |
| 16 | 2605807055 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 19 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 19 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 2 | 2604220538 | Field 230V |
| 2 | 2604220537 | Field 120V |
| 2 | 2604220537 | Field 120V |
| 3 | 2604011018 | Armature 230-240V |
| 3 | 2604011017 | Armature 115-120V |
| 3 | 2604011017 | Armature 115-120V |
| 3/50 | 2606610079 | Fan |
| 3/50 | 2606610079 | Fan |
| 3/50 | 2606610079 | Fan |
| 35 | 2910975197 | Hex Socket Head Cap Screw DIN 7984-M6X16-10.9 |
| 35 | 2910975197 | Hex Socket Head Cap Screw DIN 7984-M6X16-10.9 |
| 35 | 2910975197 | Hex Socket Head Cap Screw DIN 7984-M6X16-10.9 |
| 36 | 2600210036 | O-Ring 5,0X1,75 MM |
| 36 | 2600210036 | O-Ring 5,0X1,75 MM |
| 36 | 2600210036 | O-Ring 5,0X1,75 MM |
| 39 | 2604448000 | Connecting Cable White L=154 MM |
| 39 | 2604448000 | Connecting Cable White L=154 MM |
| 39 | 2604448000 | Connecting Cable White L=154 MM |
| 4 | 2607200260 | Switch |
| 4 | 2607200374 | On-Off Switch |
| 4 | 2607200374 | On-Off Switch |
| 40 | 2601022000 | Damping Plate |
| 40 | 2601022000 | Damping Plate |
| 40 | 2601022000 | Damping Plate |
| 41 | 1614431010 | Cable White L=233 MM |
| 41 | 1614431010 | Cable White L=233 MM |
| 41 | 1614431010 | Cable White L=233 MM |
| 43 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 43 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 43 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 44 | 2602380003 | Seal Strip |
| 44 | 2602380003 | Seal Strip |
| 44 | 2602380003 | Seal Strip |
| 45 | 2602025058 | Handle Black |
| 45 | 2602025058 | Handle Black |
| 45 | 2602025058 | Handle Black |
| 46 | 2910285226 | Round-Head Bolt DIN 603-M6X110 |
| 46 | 2910285226 | Round-Head Bolt DIN 603-M6X110 |
| 46 | 2910285226 | Round-Head Bolt DIN 603-M6X110 |
| 47 | 1603339006 | Wing Nut M6 |
| 47 | 1603339006 | Wing Nut M6 |
| 47 | 1603339006 | Wing Nut M6 |
| 48 | 2603490022 | Screw 4X16 |
| 48 | 2603490022 | Screw 4X16 |
| 48 | 2603490022 | Screw 4X16 |
| 5 | 2604460124 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460125 | Power supply cord CH 2,65M 2 X 1,0MM H05VV-F |
| 5 | 2604460126 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460280 | Power supply cord I / BR 2,65M 2 X 1,0MM H05VV-F |
| 5 | 2604460187 | Power supply cord Usa/cdn 2,68M 2 X 082MM SJ 18/2 |
| 5 | 2604460187 | Power supply cord Usa/cdn 2,68M 2 X 082MM SJ 18/2 |
| 6 | 2600703007 | Grommet Ø7 MM |
| 6 | 2600703008 | Grommet Ø8,2 MM |
| 6 | 2600703032 | Grommet Ø7,6-Ø8,2X95 MM |
| 6 | 2600703032 | Grommet Ø7,6-Ø8,2X95 MM |
| 655 | 2605702029 | Fitting |
| 655 | 2605702012 | Fitting |
| 655 | 2605702012 | Fitting |
| 7 | 2601035004 | Cable Clip |
| 7 | 2601035004 | Cable Clip |
| 7 | 2601035004 | Cable Clip |
| 733 | 2608601061 | Backing Pad Ø 125 MM |
| 733 | 2608601062 | Backing Pad Ø 125 MM |
| 733 | 2608601063 | Backing Pad Ø 125 MM |
| 733 | 2608601061 | Backing Pad Ø 125 MM |
| 733 | 2608601062 | Backing Pad Ø 125 MM |
| 733 | 2608601063 | Backing Pad Ø 125 MM |
| 733 | 2608601061 | Backing Pad Ø 125 MM |
| 733 | 2608601062 | Backing Pad Ø 125 MM |
| 733 | 2608601063 | Backing Pad Ø 125 MM |
| 754 | 2605411025 | Dust Bag |
| 754 | 2605411067 | Dust Bag 3 Piece |
| 754 | 2605411068 | Dust Bag 10 Piece |
| 754 | 2605411069 | Dust Bag 1 Piece |
| 754 | 2605411096 | Dust Bag 1 Piece |
| 757 | 2600499045 | Fitting Ø 35 MM |
| 8 | 2610907082 | Nameplate |
| 8 | 2610906837 | Manufacturer's nameplate |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 808 | 2601119191 | Nameplate |
| 808 | 2601119192 | Marking Plate |
| 808 | 2601119193 | Marking Plate |
| 808 | 2601119194 | Marking Plate |
| 808 | 2601119484 | Marking Plate |
| 813 | 2605805005 | Cartridge bearing |
| 813 | 2605805005 | Cartridge bearing |
| 813 | 2605805005 | Cartridge bearing |
| 816/04 | 2604321905 | Carbon-Brush Set |
| 816/04 | 2604321905 | Carbon-Brush Set |
| 816/04 | 2604321905 | Carbon-Brush Set |
| 816/05 | 2604610026 | Compression Spring |
| 816/06 | 2601322013 | Ratchet Cap |
| 816/06 | 2601322013 | Ratchet Cap |
| 816/06 | 2601322013 | Ratchet Cap |
| 826 | 2606610902 | Fan Lefthand Threads |
| 826 | 2606610902 | Fan Lefthand Threads |
| 826 | 2606610902 | Fan Lefthand Threads |
| 850 | 2607950004 | Offset Screwdriver DIN 911-4 |
| 850 | 2607950004 | Offset Screwdriver DIN 911-4 |
| 850 | 2607950004 | Offset Screwdriver DIN 911-4 |
| 9 | 2601119195 | Manufacturer's nameplate |
| 9 | 2610907081 | Manufacturer's nameplate |
| 9 | 2610905836 | Manufacturer's nameplate |
