Bosch PEX 115 AE

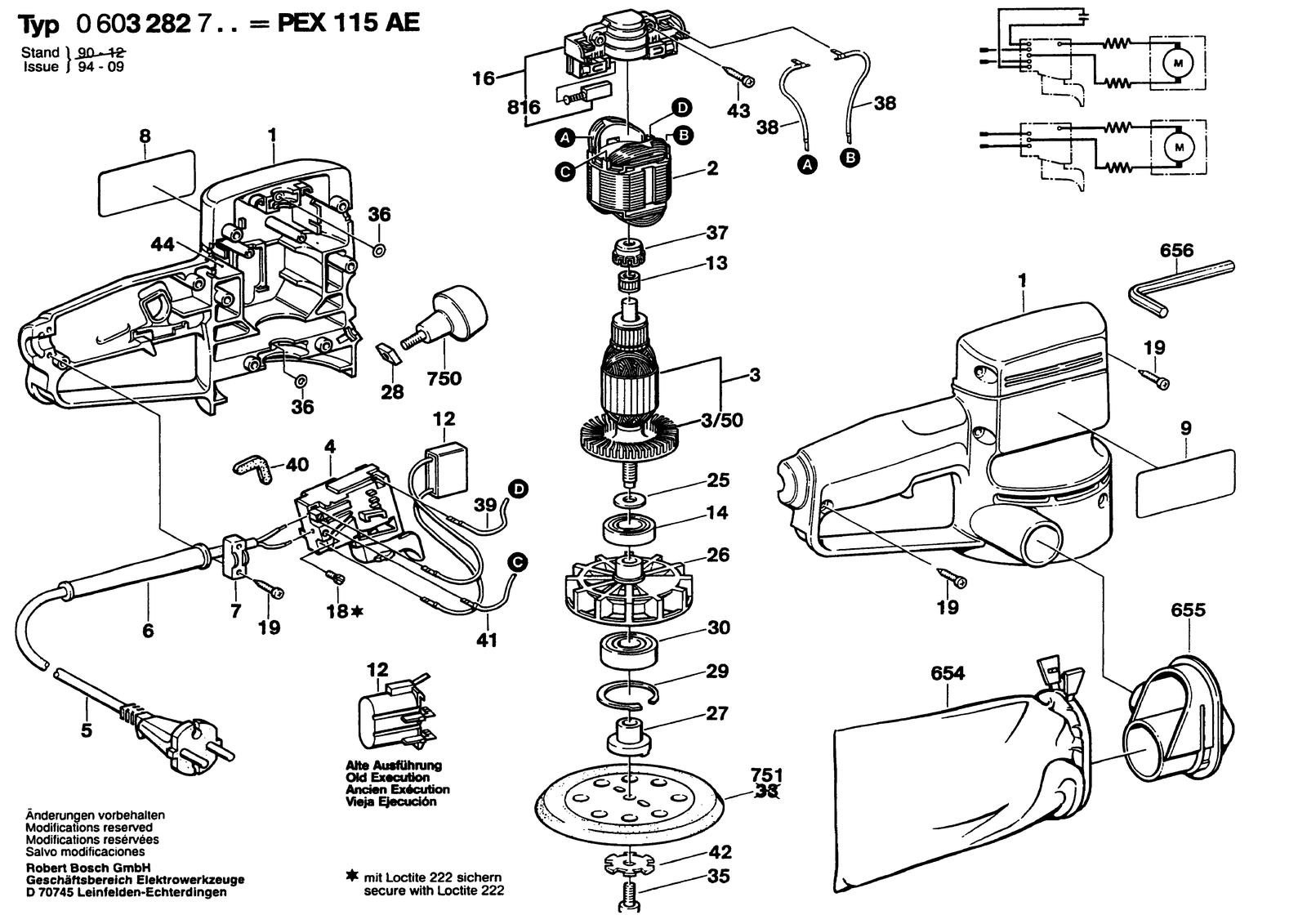

Bosch PEX 115 AE eccentric sander: exploded parts diagram, 1 sheet, 101 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PEX 115 AE: 101 positions on 1 sheet
Bosch PEX 115 AE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104287 | Housing Section Green |
| 1 | 2605104287 | Housing Section Green |
| 12 | 1607328028 | Suppression Filter |
| 13 | 2600917002 | Needle bearing |
| 13 | 2600917002 | Needle bearing |
| 14 | 2600905034 | Groove ball bearing |
| 14 | 2600905034 | Groove ball bearing |
| 16 | 2604337118 | Brush Plate |
| 16 | 2609992619 | Brush Plate |
| 16 | 2605807055 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 19 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 2 | 2604220450 | Field 100V |
| 2 | 2604220451 | Field 110-115V |
| 2 | 2604220453 | Field 240V |
| 2 | 2604220507 | Field 230-240V |
| 2 | 2604220451 | Field 110-115V |
| 25 | 2600100041 | Plain Washer DIN 315-M8-GT-C |
| 25 | 2600100041 | Plain Washer DIN 315-M8-GT-C |
| 26 | 2606610057 | Fan |
| 26 | 2606610057 | Fan |
| 27 | 2600328016 | Carrier |
| 27 | 2600328016 | Carrier |
| 28 | 2915121006 | Square Nut DIN 562-M6-04 |
| 28 | 2915121006 | Square Nut DIN 562-M6-04 |
| 29 | 2600116014 | Spring retaining ring |
| 29 | 2600116014 | Spring retaining ring |
| 3 | 2604010748 | Armature 100V |
| 3 | 2604010749 | Armature 115V |
| 3 | 2604010750 | Armature 220V |
| 3 | 2604010751 | Armature 240V |
| 3 | 2604010749 | Armature 115V |
| 3/50 | 2606610055 | Fan |
| 3/50 | 2606610055 | Fan |
| 30 | 2600905111 | Groove ball bearing 15X35X11 |
| 30 | 2600905111 | Groove ball bearing 15X35X11 |
| 35 | 2910975197 | Hex Socket Head Cap Screw DIN 7984-M6X16-10.9 |
| 35 | 2910975197 | Hex Socket Head Cap Screw DIN 7984-M6X16-10.9 |
| 36 | 1900210000 | O-Ring 5,0X1,5 MM |
| 36 | 1900210000 | O-Ring 5,0X1,5 MM |
| 37 | 2600222002 | Bearing Sleeve |
| 37 | 2600222002 | Bearing Sleeve |
| 38 | 2604448139 | Connector Cable |
| 38 | 2604448139 | Connector Cable |
| 39 | 2604448000 | Connecting Cable White L=154 MM |
| 39 | 2604448000 | Connecting Cable White L=154 MM |
| 4 | 2607200256 | On-Off Switch |
| 4 | 2607200358 | On-Off Switch |
| 4 | 2607200256 | On-Off Switch |
| 40 | 2601022000 | Damping Plate |
| 40 | 2601022000 | Damping Plate |
| 41 | 1614431010 | Cable White L=233 MM |
| 41 | 1614431010 | Cable White L=233 MM |
| 42 | 2600190150 | Plain Washer |
| 42 | 2600190150 | Plain Washer |
| 43 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 43 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 44 | 2602380003 | Seal Strip |
| 44 | 2602380003 | Seal Strip |
| 5 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460124 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460125 | Power supply cord CH 2,65M 2 X 1,0MM H05VV-F |
| 5 | 2604460126 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460127 | Power supply cord J 2,50M 2 X 0,75MM Pvc |
| 5 | 2604460129 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 2604460280 | Power supply cord I / BR 2,65M 2 X 1,0MM H05VV-F |
| 5 | 2604460129 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 6 | 2600703031 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703032 | Grommet Ø7,6-Ø8,2X95 MM |
| 6 | 2600703032 | Grommet Ø7,6-Ø8,2X95 MM |
| 654 | 2605411009 | Dust Bag |
| 654 | 2605411009 | Dust Bag |
| 655 | 2605702012 | Fitting |
| 655 | 2605702012 | Fitting |
| 656 | 2607950004 | Offset Screwdriver DIN 911-4 |
| 656 | 2607950004 | Offset Screwdriver DIN 911-4 |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 750 | 2602026046 | Handle Black M6X15 MM |
| 750 | 2602026046 | Handle Black M6X15 MM |
| 751 | 2608601064 | Backing Pad Ø 115 MM |
| 751 | 2608601065 | Backing Pad Ø 115 MM |
| 751 | 2608601066 | Backing Pad Ø 115 MM |
| 751 | 2608601064 | Backing Pad Ø 115 MM |
| 751 | 2608601065 | Backing Pad Ø 115 MM |
| 751 | 2608601066 | Backing Pad Ø 115 MM |
| 8 | 2601110940 | Nameplate |
| 8 | 2601110941 | Nameplate |
| 8 | 2601110942 | Nameplate |
| 8 | 2601110943 | Nameplate |
| 8 | 2601110944 | Nameplate |
| 8 | 2601110945 | Nameplate |
| 8 | 2601118176 | Nameplate |
| 8 | 2601110949 | Nameplate |
| 816 | 2604321905 | Carbon-Brush Set |
| 816 | 2604321905 | Carbon-Brush Set |
| 9 | 2601110946 | Manufacturer's nameplate |
| 9 | 2601110950 | Manufacturer's nameplate |
