Bosch PEX 11 A

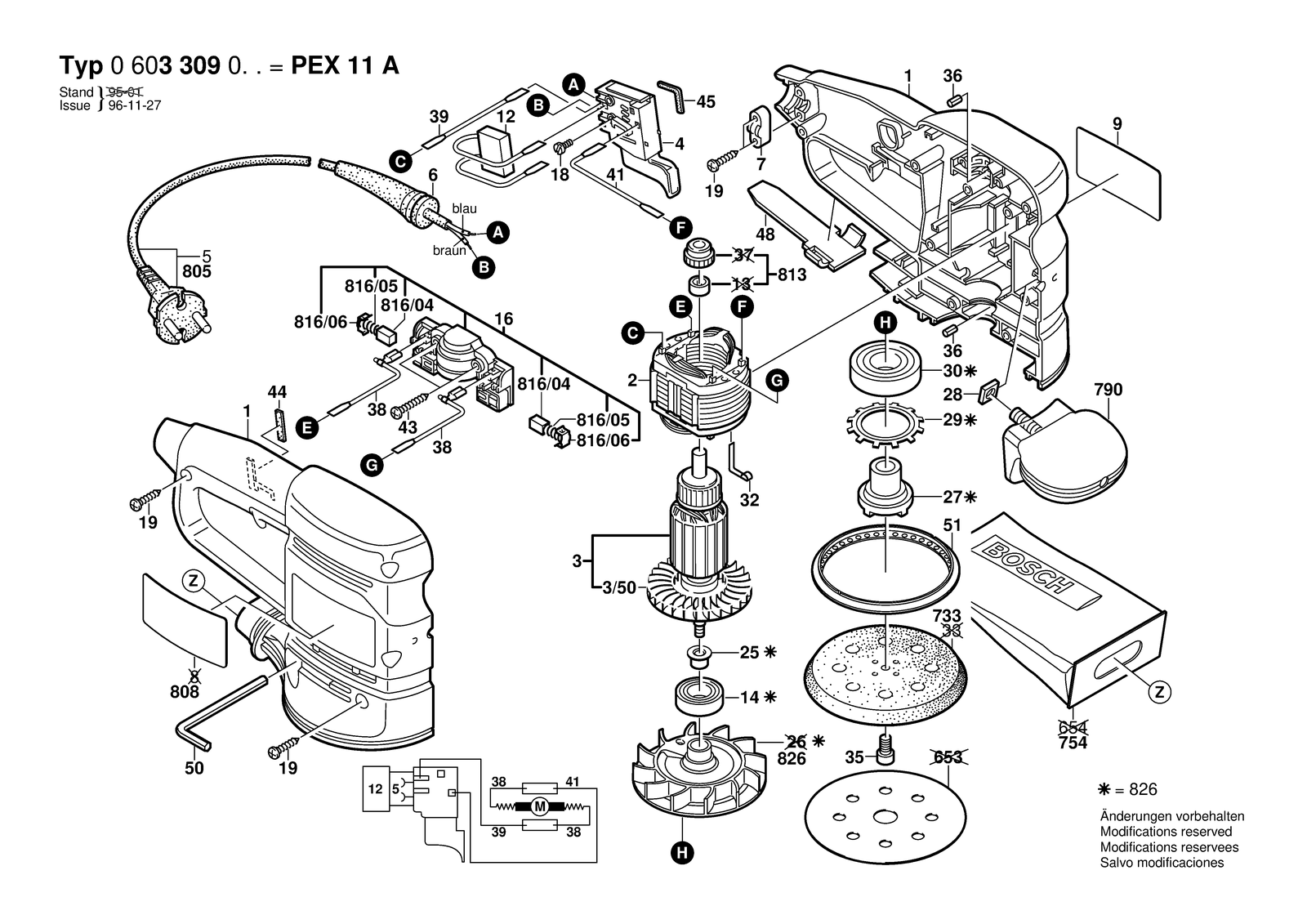

Bosch PEX 11 A random orbital sander: exploded parts diagram, 2 sheets, 60 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PEX 11 A: 60 positions on 2 sheets
Bosch PEX 11 A parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104442 | Housing Section Green |
| 12 | 1607328028 | Suppression Filter |
| 14 | 2600905034 | Groove ball bearing |
| 16 | 2604337118 | Brush Plate |
| 16 | 2605807122 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220537 | Field 120V |
| 2 | 2604220538 | Field 230V |
| 2 | 2604220539 | Field 240V |
| 28 | 2915011006 | Hex Nut DIN 934-M 5-M-8 |
| 3 | 2604011017 | Armature 115-120V |
| 3 | 2604011018 | Armature 230-240V |
| 3 | 2604011019 | Armature 240V |
| 3/50 | 2606610079 | Fan |
| 32 | 2601329057 | Contact Spring |
| 35 | 2910370197 | Hex Socket Head Cap Screw DIN 6912-M6X16-8.8 |
| 36 | 1603100036 | Rubber Buffer |
| 38 | 2604448109 | Connecting Cable White L=115 MM |
| 39 | 1614431010 | Cable White L=233 MM |
| 4 | 2607200260 | Switch |
| 41 | 2604448140 | Cable White L=103MM |
| 43 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 44 | 2602380003 | Seal Strip |
| 45 | 2601022000 | Damping Plate |
| 48 | 2608005043 | Pusher |
| 5 | 2604460124 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460125 | Power supply cord CH 2,65M 2 X 1,0MM H05VV-F |
| 5 | 2604460126 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460129 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 2604460280 | Power supply cord I / BR 2,65M 2 X 1,0MM H05VV-F |
| 50 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 51 | 2600206011 | Friction Ring |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 733 | 2608601064 | Backing Pad Ø 115 MM |
| 733 | 2608601065 | Backing Pad Ø 115 MM |
| 733 | 2608601066 | Backing Pad Ø 115 MM |
| 754 | 2605411067 | Dust Bag 3 Piece |
| 754 | 2605411068 | Dust Bag 10 Piece |
| 754 | 2605411096 | Dust Bag 1 Piece |
| 790 | 2602026057 | Auxiliary Handle |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 808 | 2601119267 | Marking Plate |
| 808 | 2601119268 | Marking Plate |
| 808 | 2601119269 | Marking Plate |
| 808 | 2601119270 | Marking Plate |
| 808 | 2601119271 | Marking Plate |
| 808 | 2601119272 | Marking Plate |
| 808 | 2601119337 | Marking Plate |
| 813 | 2605805005 | Cartridge bearing |
| 816/04 | 2604321905 | Carbon-Brush Set |
| 816/04 | 2604321917 | Carbon-Brush Set |
| 816/05 | 2604610026 | Compression Spring |
| 816/06 | 2601322013 | Ratchet Cap |
| 816/06 | 2601329051 | Ratchet Cap |
| 826 | 2606610900 | Fan Lefthand Threads |
| 9 | 2601118413 | Manufacturer's nameplate Sunny Side |
